Tyco 802SB Installation Instructions

Tyco 802SB Installation Instructions

Addressable sounder base

Advertisement

Quick Links

DOCUMENT CONTROL NUMBER
802SB ADDRESSABLE SOUNDER BASE

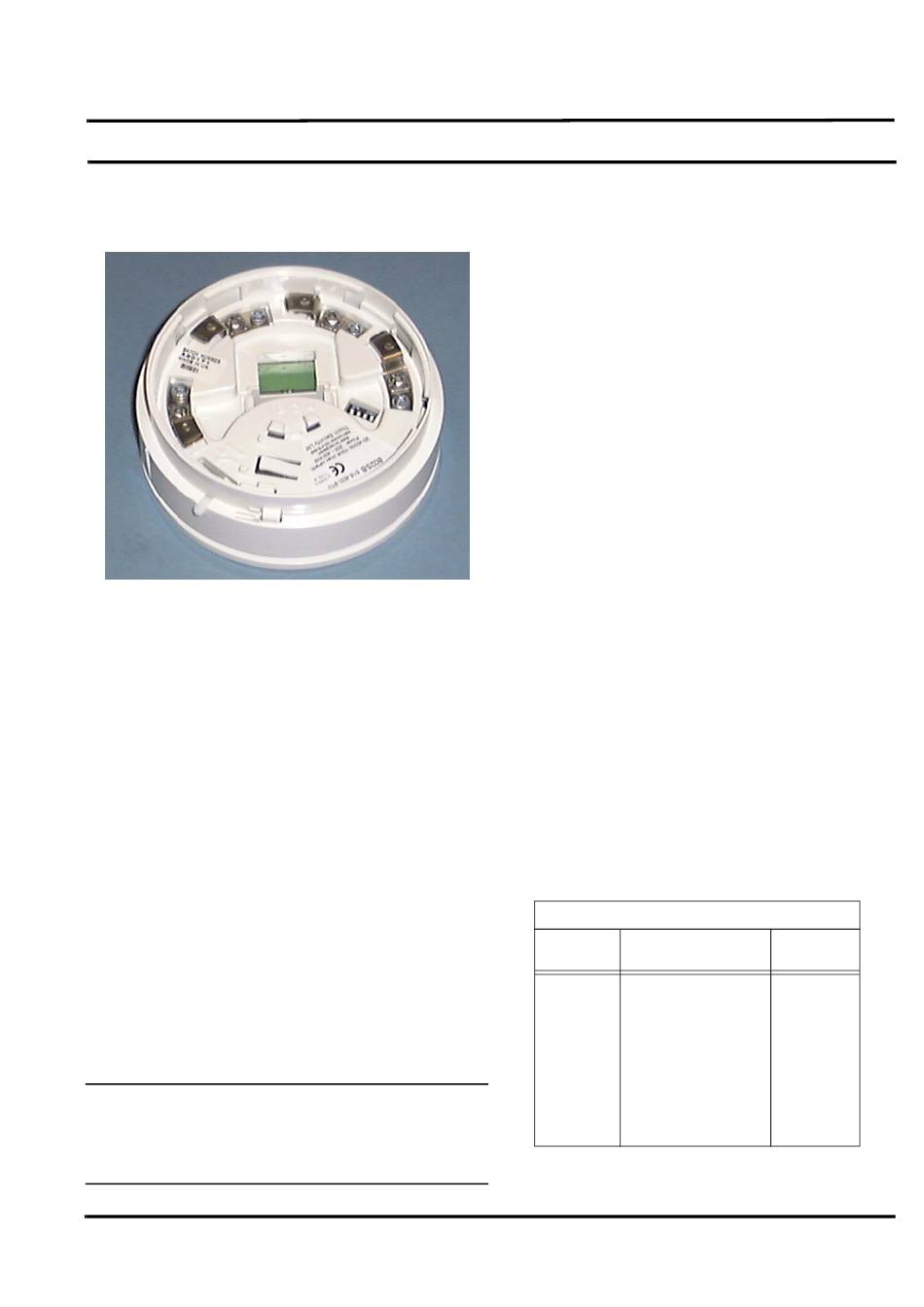

Fig. 1
802SB Sounder Base
1.
TECHNICAL SPECIFICATION
System Compatibility:
Environment:
Operating Temperature: -10
Storage Temperature:
Operating Humidity:
Dimensions:
Height:
Diameter:
Weight:
Mounting Requirements: 801B base, 801IB base or BESA
Wire Size:
Electrical Characteristics:
Standby:
Alarm:
CAUTION:
ENSURE THAT SITE PLAN DEFINES THE POLARITY
OF POLARITY CONSCIOUS BASES.
© 2003 Tyco Safety Products
www.acornfiresecurity.com
INSTALLATION INSTRUCTIONS
Use only with MX Fire Alarm
Controllers
Indoor Application only
o
o
to +55
C
o
o
-25
to +70
C
Up to 95% non-condensing
36.6mm
107.8mm
0.186kg
with 50mm fixing centres.
2
Min 1.5mm
2
Max 2.5mm
200µA typical
6.8mA at full volume
1.2mA at low volume
www.acornfiresecurity.com
EQUIPMENT:
PUBLICATION:
ISSUE No. & DATE:
/
Electromagnetic Compatibility:
The 802SB complies with the following:
Product family standard EN50130-4 in respect of
Conducted Disturbances, Radiated Immunity,
Electrostatic Discharge, Fast Transients and Slow High
Energy
EN50081-1 for emissions
2.
INTRODUCTION
The 802SB Addressable Sounder Base provides an additional
sounder function on the addressable loop circuit.
The 802SB Sounder Base requires an associated detector in
order to operate, as it uses the address of the detector that is
fitted to it. Removal of the detector or loss of power to the
loop will cause the sounder to cease operating.
A maximum of 50 Sounder Bases at full volume may be
connected to the loop.
3.
FEATURES
The 802SB provides eight tone and two volume settings.
4.
SETTING SOUNDER OUTPUT
OPTIONS
The sounder outputs are set as follows:
Tone - using the 4-way DIL switch (Fig. 2 and
Table 1 refer).
Volume - using the trimmer tool
(S/C No. 517.050.015) (Fig. 2 refers).
Table 1 gives the sounder tone options available.
DIL Switch Settings
1 2 3 4
Response Sound
0 0 0 x Dutch
0 0 1 x Temporal 4
0 1 0 x Slow Sweep
0 1 1 x March Time Beep
1 0 0 x Fast Sweep
1 0 1 x Temporal 3
1 1 0 x Two Tone
1 1 1 x Continuous
Table. 1
800 SERIES
17A-03-SB2
3A 7/08
Marketing
Tone No.
7
-
3
25
2
-
11
14
PAGE 1 of 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the 802SB and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco 802SB

  • Page 1 The 802SB Addressable Sounder Base provides an additional sounder function on the addressable loop circuit. The 802SB Sounder Base requires an associated detector in order to operate, as it uses the address of the detector that is fitted to it. Removal of the detector or loss of power to the loop will cause the sounder to cease operating.
  • Page 2 (Factory fitted). Ensure that the locking device is in place before fitting a detector or cap. See Fig. 5. The Volume Pot Blank Label must be fitted. Fig. 3 Connections to 802SB Sounder Base PAGE 2 of 3 www.acornfiresecurity.com...
  • Page 3 517.050.022 ‘MX CONSYS’ JM/jm CONFIGURATION July 2008 The 802SB is configured in MX CONSYS (refer to Publication 17A-06-X1 - MX CONSYS Configuration Tool) as follows: • When a Sounder Base unit is Attached to an addressable detector, the “Point” and “Point Type”...
