Arzel AirBoss Installation Instructions Manual

Hide thumbs Also See for AirBoss:
Table of Contents

Advertisement

Quick Links

®
Arzel
Zoning Technology, Inc.

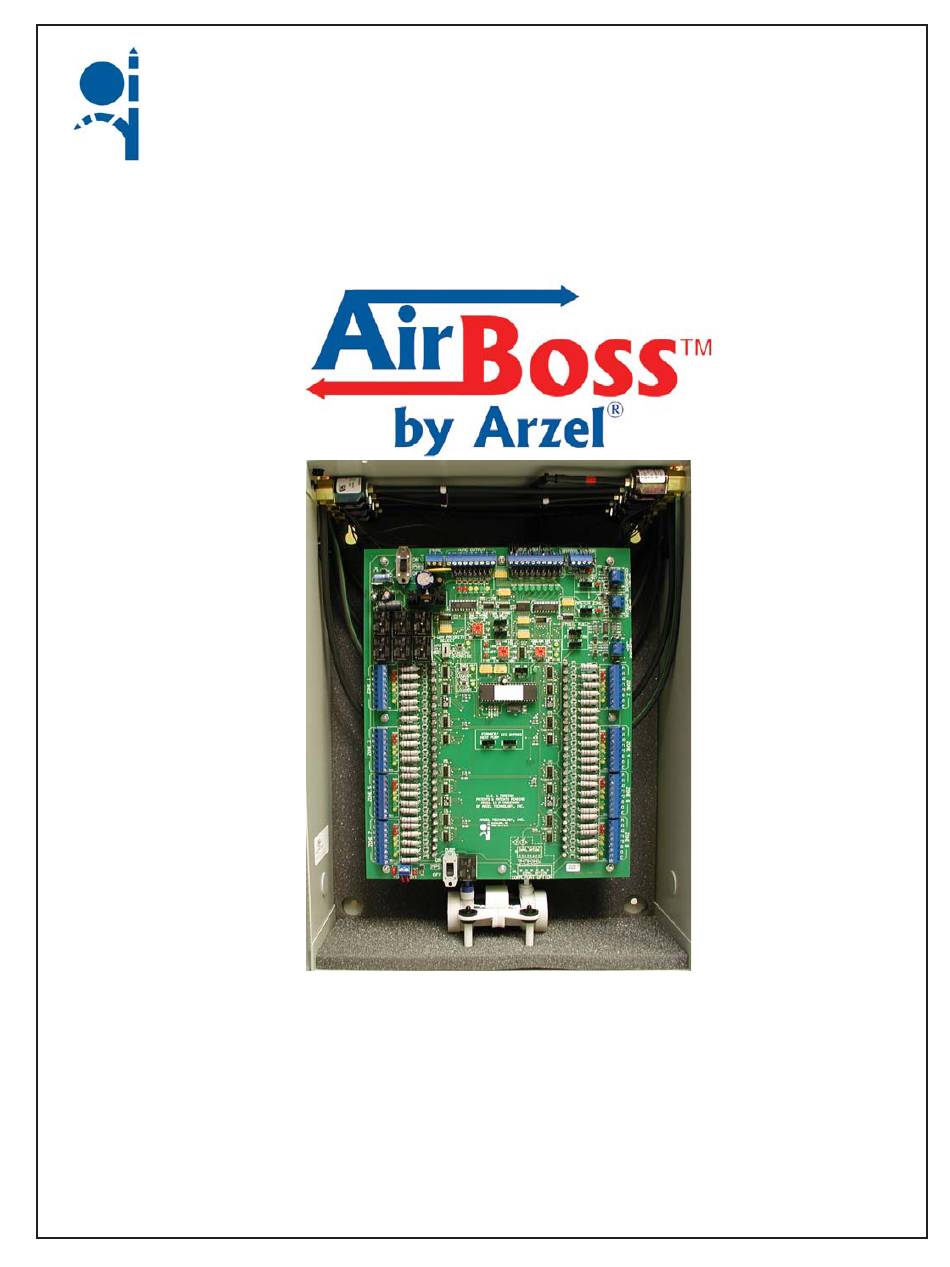

INSTALLATION INSTRUCTIONS
Models with 2, 3, 4, 6 and 8 Zones
Comfort, Reliability and Easy Installation
Arzel Zoning Technology, Inc.
Toll Free 800-611-8312
4801 Commerce Parkway
(216) 831-6068
Cleveland, Ohio 44128
Fax (216) 831-6074
Rev. 5/1/01
© copyright 2004 by Arzel Zoning Technology, Inc.
U. S. and Foreign Patents & patents pending.
1
