ACHILL
Operation AND INSTALLATION MANUAL
500W 12V/24V
800W 12V
UK
PG. 1: INTRODUCTION
PG. 2: TECHNICAL CHARACTERISTICS
PG. 3: INSTALLATION
PG. 4: WIRING DIAGRAM 2-POLE MOTOR
PG. 5: SPARE PARTS 500W 800W
PG. 6: OPERATION AND MAINTENANCE
PG. 7: WARRANTY TERMS - MODEL IDENTIFICATION
1
Advertisement
Table of Contents
Related Manuals for Orvea Italwinch ACHILL 500W 12V
Summary of Contents for Orvea Italwinch ACHILL 500W 12V

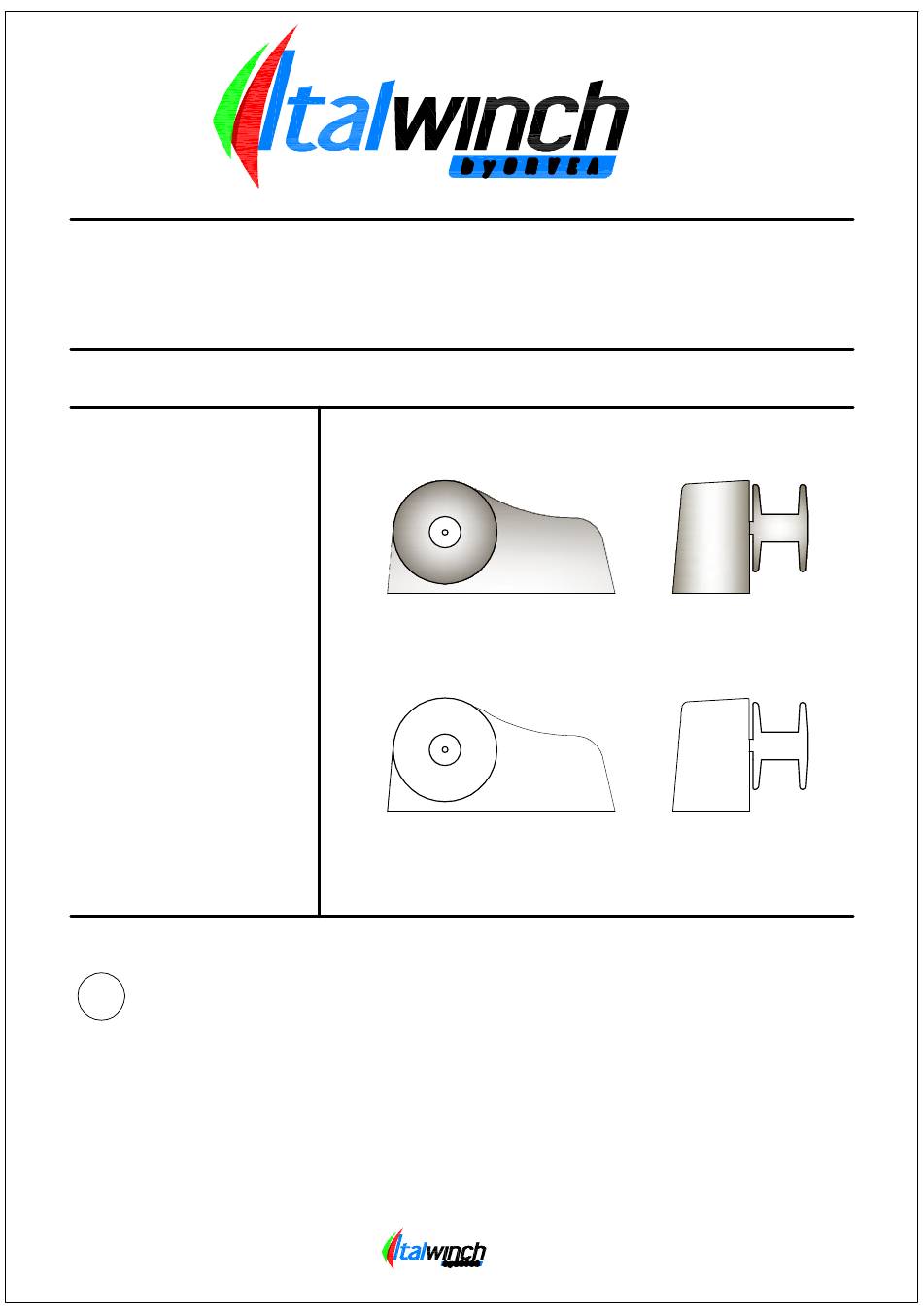

- Page 1 ACHILL OPERATION AND INSTALLATION MANUAL 500W 12V/24V 800W 12V PG. 1: INTRODUCTION PG. 2: TECHNICAL CHARACTERISTICS PG. 3: INSTALLATION PG. 4: WIRING DIAGRAM 2-POLE MOTOR PG. 5: SPARE PARTS 500W 800W PG. 6: OPERATION AND MAINTENANCE PG. 7: WARRANTY TERMS - MODEL IDENTIFICATION...
- Page 2 TECHNICAL CHARACTERISTICS PLEASE CAREFULLY READ THE INSTRUCTIONS FOR USE AND ASSEMBLY CONTAINED IN THIS MANUAL BEFORE OPERATING AND INSTALLING THE ANCHOR WINCH ACHILL MODEL VERSION 500 12V / 24V 800 12V MOTOR POWER 500 W 800 W MAXIMUM INSTANTANEOUS PULL 550 KG 800 KG MAXIMUM WORKING LOAD...
- Page 3 INSTALLATION PLEASE CAREFULLY READ THE INSTRUCTIONS FOR USE AND ASSEMBLY CONTAINED IN THIS MANUAL BEFORE OPERATING AND INSTALLING THE WINCH PACKAGE CONTENTS: Winch complete of coverage, gearmotor, contactors/reversing contactor units, assemply screws, drilling template, operation and installation manual. TOOL NEEDED FOR INSTALLATION: Drilling with a Ø9 bit, 13mm hex wrench, Allen wrench 8, phillips screwdriver anc silicone.
- Page 5 LIST OF SPARE PARTS SPARE PARTS LIST FOR ACHILL WINCH'S SPARE PARTS WINCH'S SPARE PARTS POS. Q.TY DESCRIPTION CODE POS. Q.TY DESCRIPTION CODE POSITION No. 18 CODE:100147 INCLUDED: 500W MOTOR 100102 DRUM'S WASHER 1000502 COD:1000505 No 01 Pc 800W MOTOR 100101 SHAFT 100503...
- Page 6 OPERATION - ITALWINCH Winches ITALWINCH were exclusively designed for small to recover TENDER load does not exceed the value indicated in the tables they are not strong points. Do not use these devices for other purposes: improper use could cause damage to the anchor winch or injury to persons. - ITALWINCH assumes no liability for direct or indirect injury or damage caused to persons or property as a result of improper use.
- Page 7 WARRANTY ITALWINCH guarantees its products for a period of two years (2) from the purchase date. The warranty covers any parts recognised to be defective and the labour costs necessary for replacing them. The products must be returned to ITALWINCH carriage paid. ITALWINCH's liability shall be limited solely to the repair or replacement of parts judged to be defective.
