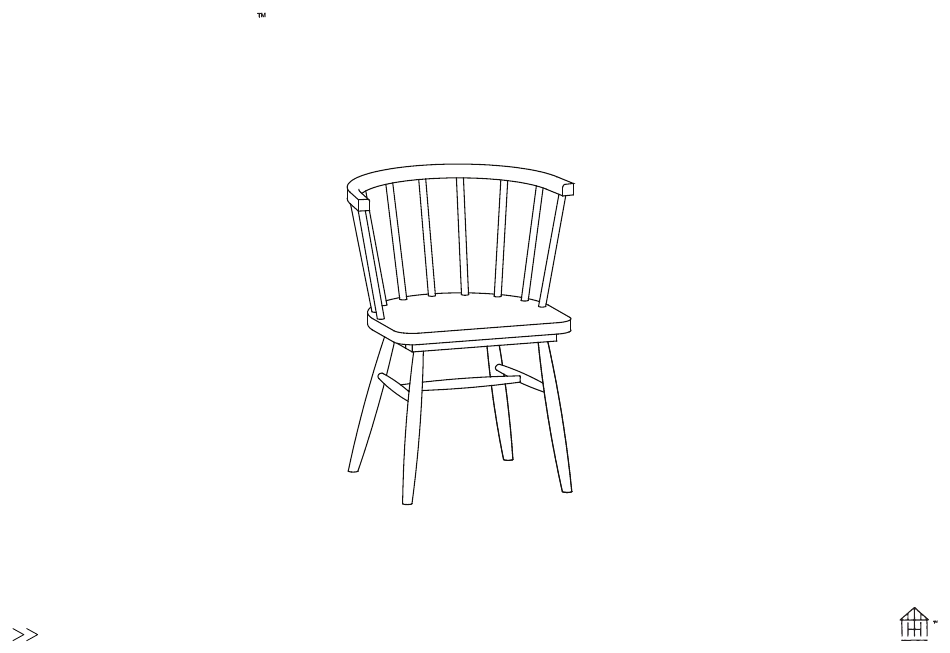

- Page 1 Hearth & Hand shaker dining chair wood Style # TGT-SCDC-04 DPCI # 324-07-5042 assembly instructions...
- Page 2 Congratulations on your latest purchase Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 hardware ............................................. H1 - hex bolt x 6 H2 - hex wrench x 1 H3 - lock washer x 6 H4 - flat washer x 6 ( M6 x 40 mm ) ( L4 x 114 mm ) ( M6 x 1.5 mm ) ( M6 x 1 mm )
- Page 4 exploded diagram ............................................. ITEM DESCRIPTION Seater assembly Leg assembly...
- Page 5 steps 1: attach leg to seater .......................................................................................... H1 - hex bolt x 6 H3 - lock washer x 6 ( M6 x 40 mm ) ( M6 x 1.5 mm ) H4 - flat washer x 6 H2 - hex wrench x 1 ( M6 x 1 mm ) ( L4 x 114 mm ) 1.1 attach leg (B) with seater (A) and secure it by inserting lock washer, flat washer, and bolts then tighten with hex wrench.
