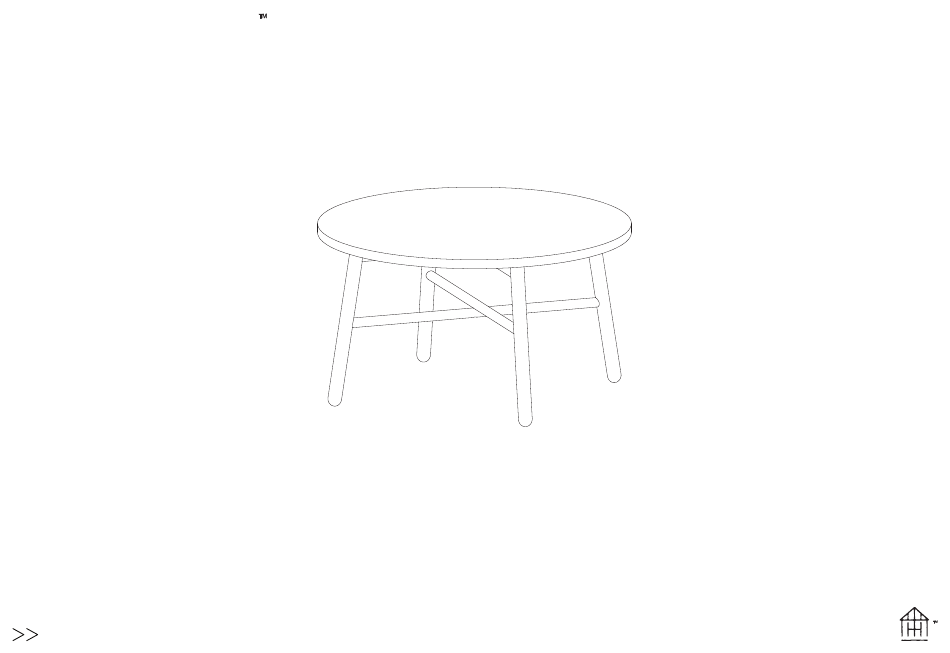

- Page 1 Hearth & Hand round coffee table Style # TGT-CT05 DPCI # 324-07-6007 assembly instructions...
- Page 2 Congratulations on your latest purchase Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 hardware ............................................. H1 - hex bolt x 8 H2 - hex bolt x 1 H3 - hex wrench x 1 H4 - lock washer x 9 H5 - flat washer x 9 M6 x ( M6 x 50 mm ) 40 mm ) ( L4 x 114 mm ) ( M6 x 1.5 mm )
- Page 4 exploded diagram ............................................. ITEM DESCRIPTION top table leg inside leg outside...
- Page 5 steps 1: attach outside leg to top table ............................................. 1.1 attach inside leg (B) to outside leg (C).
- Page 6 step 2 : attach inside leg to top table .......................................................................................... H1 - hex bolt x 8 H4 - lock washer x 8 ( M6 x 50 mm ) ( M6 x 1.5 mm ) H5 - flat washer x 8 H3 - hex wrench x 1 ( M6 x 1 mm ) ( L4 x 114 mm )
- Page 7 step 3 : attach inside leg to top table .......................................................................................... H4 - lock washer x 1 H2 - hex bolt x 1 ( M6 x 1.5 mm ) M6 x 40 mm ) H5 - flat washer x 1 H3 - hex wrench x 1 ( M6 x 1 mm ) ( L4 x 114 mm )
