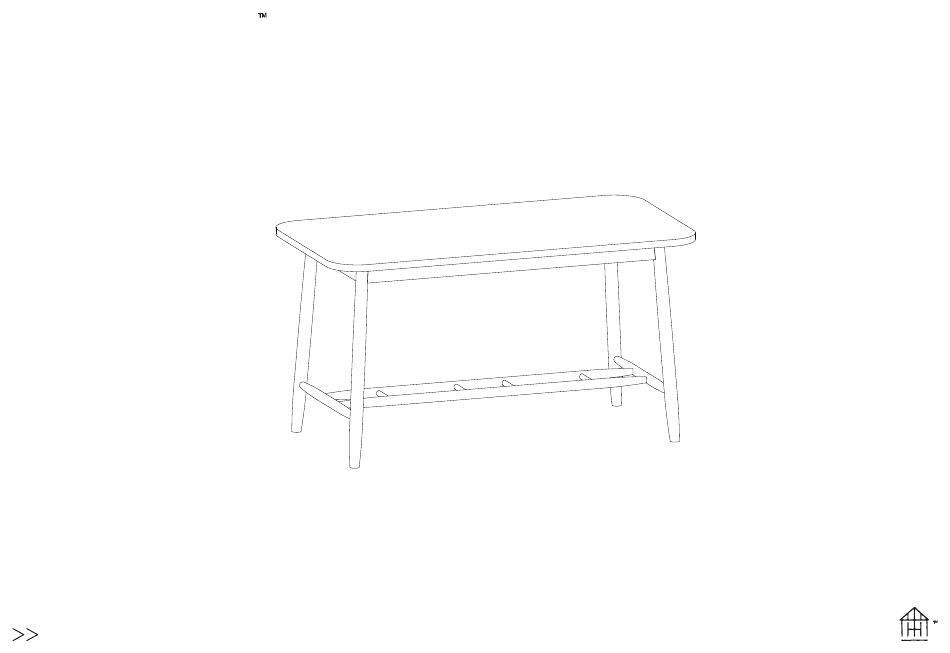

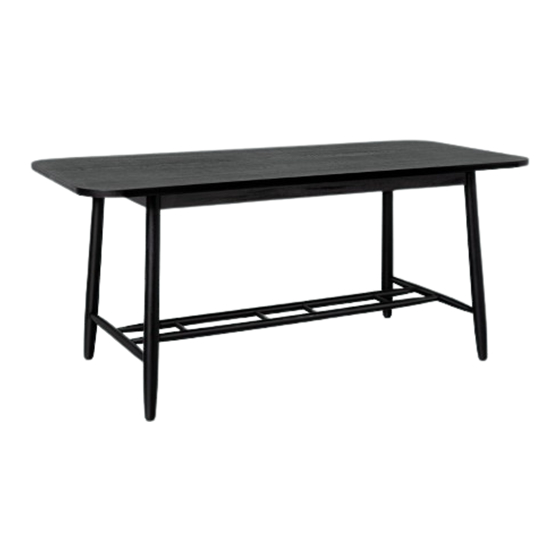

- Page 1 Hearth & Hand shaker dining table Style # TGT-SCDT-01 DPCI # 324-07-7434 assembly instructions...
- Page 2 Congratulations on your latest purchase Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 hardware ............................................. H1 - hex bolt x 8 H2 - screw x 4 H3 - hex wrench x 1 H4 - lock washer x 8 H5 - flat washer x 8 ( M6 x 60 mm ) ( Ø8 x 2 " ) ( L4 x 114 mm ) ( M6 x 1.5 mm ) ( M6 x 1 mm )
- Page 4 exploded diagram ............................................. ITEM DESCRIPTION top table legs stretcher...
- Page 5 steps 1: attach leg to top table ............................................. H5 H4 H1 ............................................. H1 - hex bolt x 4 H4 - lock washer x 4 ( M6 x 60 mm ) ( M6 x 1.5 mm ) H5 - flat washer x 4 H3 - hex wrench x 1 ( M6 x 1 mm ) ( L4 x 114 mm )
- Page 6 step 2 : attach leg to appron & stretcher to legs ............................................. H5 H4 H1 ............................................. H1 - hex bolt x 4 H4 - lock washer x 4 ( M6 x 60 mm ) ( M6 x 1.5 mm ) H5 - flat washer x 4 H3 - hex wrench x 1 ( M6 x 1 mm )
- Page 7 step 3 : attach stretcher to legs .......................................................................................... H2 - screw x 4 ( Ø8 x 2 " ) 3.1 secure the stretcher to leg (B) by insterting screw (H2) and tigthen by screwdriver...
