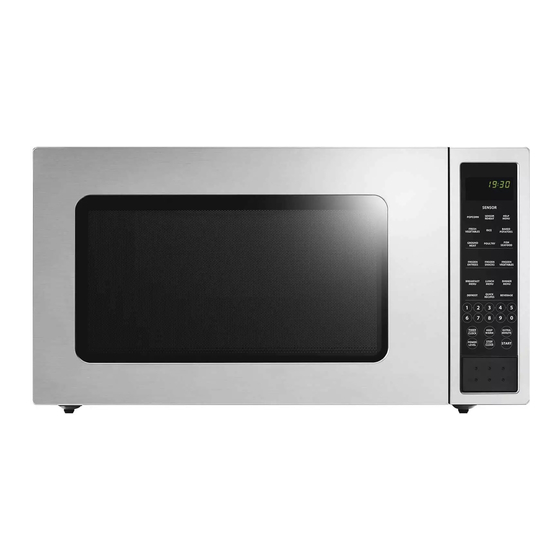

- Page 1 MICROWAVE OVEN MO-24SS models INSTALLATION GUIDE / USER GUIDE US CA...
-
Page 2: For Customer Assistance
FOR CUSTOMER ASSISTANCE To aid in reporting this microwave oven in case of loss or theft, record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. Model Number ____________________________________ Serial Number _______________________ Date of Purchase ___________________________________ Dealer _________________________________________ Telephone __________________________... -
Page 3: Table Of Contents
CONTENTS For Customer Assistance ......... Quick Recipes Recipes ..........19-20 Defrost ................21-22 Precautions to Avoid Possible Exposure to Excessive Microwave Energy ...... Super Defrost Chart........... Contents ............Defrost Chart ............... Important Safety Instructions ......Beverage ..............Unpacking and Installation Instructions ..Beverage Chart ............ -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following: WARNING: To reduce the risk of burns, electric shock, fi re, injury to persons or exposure to excessive microwave energy: 1. READ ALL INSTRUCTIONS BEFORE USING 16. -
Page 5: Unpacking And Installation Instructions
UNPACKING AND INSTALLATION INSTRUCTIONS Unpacking and examining your oven Over oven installation Remove: all packing materials from inside the oven cavity; however, DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the right cavity wall. Read enclosures and SAVE this manual. Check the oven for any damage, such as TOP OF... -
Page 6: Grounding Instructions
UNPACKING AND INSTALLATION INSTRUCTIONS Outlet should NOT be in the shaded area as indicated. The ease of assembly for these kits will allow installation into an existing wall opening in less than an hour 1. If the dimension of DEPTH (C) is more than 21", (if power outlet is already properly located). -
Page 7: Information You Need To Know
INFORMATION YOU NEED TO KNOW ABOUT YOUR OVEN This manual is valuable: read it carefully and always save it for reference. A good microwave cookbook is a valuable asset. Check it for microwave cooking principles, techniques, hints and recipes. NEVER Condensation is a normal part of microwave cooking. -
Page 8: About Utensils And Coverings
INFORMATION YOU NEED TO KNOW ABOUT UTENSILS AND COVERINGS It is not necessary to buy all new cookware. The following coverings are ideal: Many pieces already in your kitchen can be used • Paper towels are good for covering foods for successfully in your new microwave oven. -
Page 9: About Microwave Cooking
INFORMATION YOU NEED TO KNOW ABOUT MICROWAVE COOKING • • Arrange food carefully. Place thickest areas towards Rearrange foods such as meatballs halfway outside of dish. through cooking both from top to bottom and from the center of the dish to the outside. •... -
Page 10: Part Names
PART NAMES MICROWAVE OVEN PARTS CONTROL PANEL The two-line, Interactive Display spells out operating steps and shows cooking hints. When HELP is lighted in the display, touch the HELP MENU pad to read a specifi c hint which may assist you. 12-15 1 One touch door open button Push to open door. -
Page 11: Before Operating
BEFORE OPERATING • Before operating your new microwave oven make sure you read and understand this operation manual completely. • Before the oven can be used, follow these procedures: 1. Plug in the oven. Close the door. The oven display will show WELCOME PRESS CLEAR AND PRESS CLOCK. -
Page 12: Manual Operation
MANUAL OPERATION TO SET POWER LEVEL TIME COOKING There are eleven preset power levels. Your oven can be programmed for 99 minutes and 99 seconds (99.99). Always enter the seconds after Using lower power levels increases the cooking time the minutes, even if they are both zeros. which is recommended for foods such as cheese, milk •... -
Page 13: Sensor
SENSOR The sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power level for various foods and quantities. Using Sensor Settings: Covering Foods: 1. -
Page 14: Sensor Chart
SENSOR SENSOR CHART POPCORN 1 package Use only popcorn packaged for microwave oven use. Try several brands to decide which you like the best. Do not try to pop unpopped kernels. 1.5 - 3.5 oz bag Touch POPCORN pad and then START. SENSOR REHEAT 4 - 36 Place in dish or casserole slightly larger than amount... -
Page 15: Sensor Recipes
SENSOR SENSOR CHART (CONTINUED) F O O D A M O U N T P R O C E D U R E POULTRY: Boneless .5 - 2.0 lb Use boneless breast of chicken or turkey. Cover with vented plastic wrap. Touch POULTRY, number 1 and START pads. - Page 16 SENSOR SENSOR RECIPES (CONTINUED) Shrimp Pasta Sauce Makes 4 servings 1 pound of shrimp, peeled and deveined 1 cup thinly sliced scallions (about 2 bunches) 2 cups canned tomato puree 1 clove of garlic, minced 1 tablespoon tomato paste salt and pepper to taste cup thinly sliced fresh basil leaves Parmesan cheese teaspoon oregano...
-
Page 17: Other Cooking Features
OTHER COOKING FEATURES Your oven has 6 convenience pads to assist with meal preparation. There are some foods in the BREAKFAST MENU, LUNCH MENU, DINNER MENU and QUICK RECIPES that use the sensor. See the sensor cooking information on page 12. For foods not using the sensor, follow the directions in the Interactive Display to enter quantity. -
Page 18: Lunch Menu Chart
OTHER COOKING FEATURES BREAKFAST MENU CHART (CONTINUED) IT IS NOT NECESSARY TO ENTER AMOUNT F O O D A M O U N T P R O C E D U R E 3. HOT CEREAL 1 - 6 servings Use individual packets or bulk cereal in your favorite variety: oatmeal, oat bran, cream of wheat, farina or wheatena. -
Page 19: Dinner Menu And Quick Recipes
OTHER COOKING FEATURES DINNER MENU AND QUICK RECIPES DINNER MENU and QUICK RECIPES each off er fi ve simple-to-prepare but great tasting meals. Follow the specifi c directions on the Recipe Card and in the Interactive Display. • Suppose you want to use DINNER MENU to cook Saucy Chicken. P R O C E D U R E D I S P L A Y DINNER... -
Page 20: Quick Recipes Recipes
OTHER COOKING FEATURES 3. FIESTA CHILI 1 11-ounce can of Mexican corn, drained 1. Place in a 3 quart casserole: 1 15-ounce can chili with beans pounds ground turkey 1 to 3 teaspoons chili powder cup diced onions Stir together well. Re-cover. Touch START. cup diced red pepper Break up turkey and stir in onions and red pepper. - Page 21 OTHER COOKING FEATURES QUICK RECIPES (RECIPES SERVE 6) CONTINUED 2. MEXICAN CHICKEN Cover. Touch QUICK RECIPES, number 2 to select 1. Place in layers in a 3-quart casserole: MEXICAN CHICKEN and then touch START. 2 cups instant rice 1 cup prepared fajita sauce mixed with 2.
-
Page 22: Defrost
OTHER COOKING FEATURES DEFROST DEFROST automatically defrosts all the foods found in the SUPER DEFROST and DEFROST CHARTS. Numbers 1–3 are for SUPER DEFROST that defrosts specifi c foods and weights very rapidly. For these choices, it is not necessary to enter weight. SUPER DEFROST SUPER DEFROST rapidly defrosts specifi c foods and weights found in the SUPER DEFROST CHART below. -
Page 23: Defrost Chart
OTHER COOKING FEATURES DEFROST (CONTINUED) • Suppose you want to defrost a 2.0 pound steak, P R O C E D U R E D I S P L A Y using Defrost. After the 1st stage, open the door. Turn steak over and shield any warm portions. -
Page 24: Beverage
OTHER COOKING FEATURES BEVERAGE BEVERAGE enables you to SENSOR REHEAT coff ee or tea to a more suitable drinking temperature or to make instant coff ee or tea. • Suppose you want to SENSOR REHEAT 2 cups of coff ee. NOTE: P R O C E D U R E D I S P L A Y... -
Page 25: Other Convenient Features
OTHER CONVENIENT FEATURES KEEP WARM MULTIPLE SEQUENCE COOKING Your oven can be programmed for up to 4 automatic KEEP WARM allows you to keep food warm up to 30 minutes. cooking sequences, switching from one power level To use, simply touch the KEEP WARM pad and enter setting to another automatically. -
Page 26: Help Menu
OTHER CONVENIENT FEATURES HELP MENU HELP MENU provides 5 features which make using your oven easy because specifi c instructions are provided in the interactive display. 1. CHILD LOCK 2. If the oven door is opened after programming Auto Start, it is necessary to touch the START pad The Child Lock prevents unwanted oven operation for Auto Start time to appear in the readout so such as by small children. -
Page 27: Timer/Clock
OTHER CONVENIENT FEATURES TIMER/CLOCK START • Suppose you want to time a 3-minute long distance START allows you to cook at 100% power by touching phone call. the START pad continuously. START is ideal for melting cheese, bringing milk to just below boiling etc. The maximum cooking time is 3 minutes. -
Page 28: Cleaning And Care
CLEANING AND CARE Disconnect the power cord before cleaning or leave the door open to inactivate the oven during cleaning. Exterior The outside surface is painted. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner. -
Page 29: Specifications
SPECIFICATIONS AC Line Voltage: Single phase 120V, 60Hz, AC only AC Power Required: 1650 watts, 13.8 amps. Output Power: Microwave 1200 watts* (IEC Test Procedure) Frequency: 2450 MHz Outside Dimensions: 24"(W) x 13 "(H) x 19 "(D) Cavity Dimensions: "(W) x 10 "(H) x 18 "(D) Oven Capacity:... -
Page 30: Warranty
WARRANTY See your Service & Warranty booklet for warranty details. -
Page 31: Control Panel Guide
CONTROL PANEL GUIDE For more complete information and safety precautions, refer to your Operation Manual. MANUAL OPERATION SET CLOCK HIGH POWER COOKING If WELCOME PRESS CLEAR AND PRESS CLOCK is in the display, 1 Enter cooking time by touching fi rst touch STOP/CLEAR. 1 3 0 number pads. - Page 32 CONTROL PANEL GUIDE DINNER MENU BREAKFAST MENU 1 Touch BREAKFAST MENU pad. 1 Touch DINNER MENU pad. DINNER BREAKFAST MENU MENU 2 Select desired food. 2 Select desired food. (Ex: touch number pad 2 (Ex: touch the number 3 pad for Hawaiian Pork.) for hot cereal.) 3 Touch number 2 pad for...
