Hussmann IMPACT D5RRIS Technical Data Sheet

Hussmann IMPACT D5RRIS Technical Data Sheet

Hussmann impact d5rris merchandisers: data sheet
Hide thumbs Also See for IMPACT D5RRIS:
1
2
3
4
5
6

Advertisement

Table of Contents

We reserve the right to change or
revise specifications and product
design in connection with any
feature of our products. Such
changes do not entitle the buyer
to corresponding changes,
improvements, additions or
replacements for equipment
previously sold or shipped.

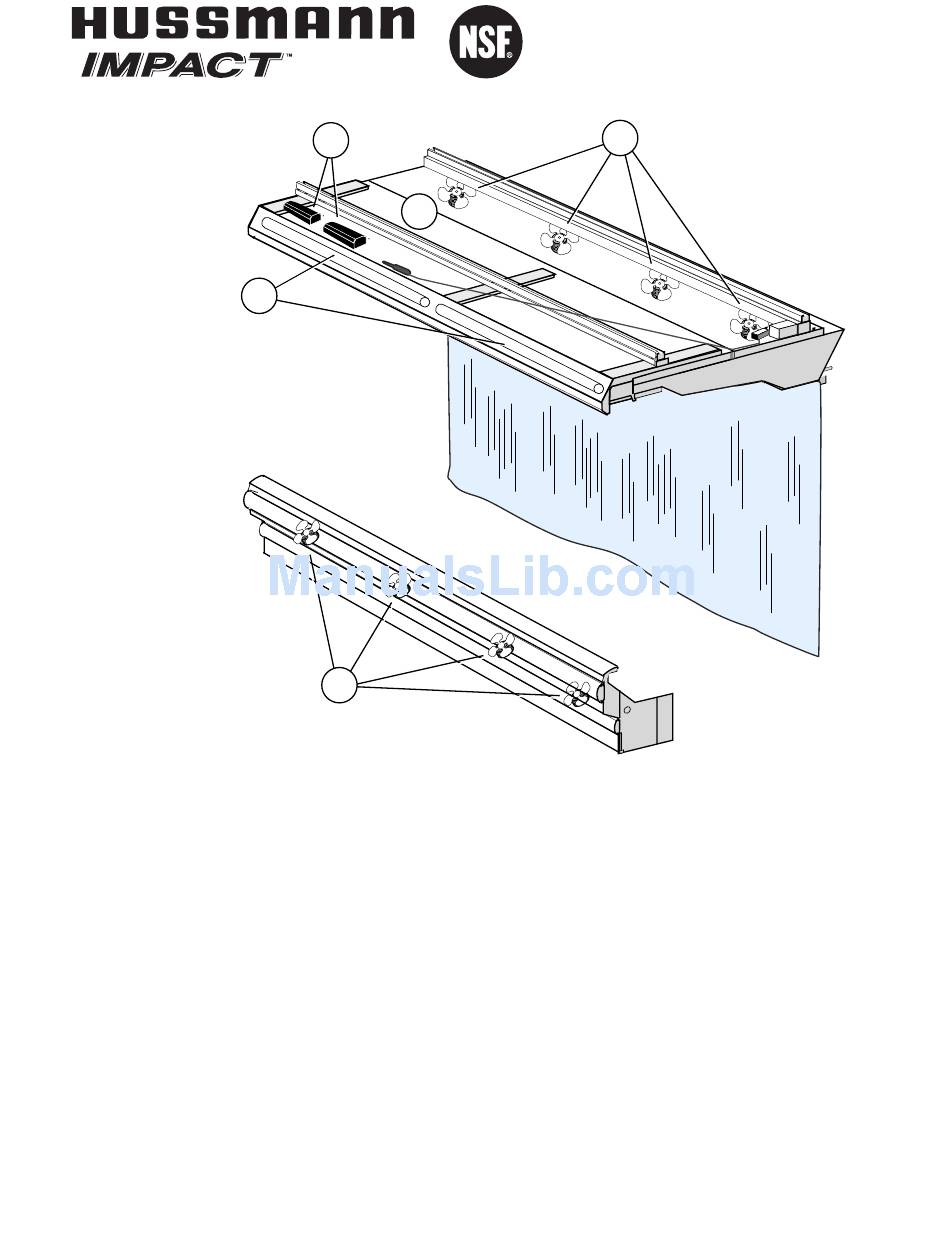

Item
Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS
A.
0378349
Fan Motor, Discharge
(MO.4410104)
0315470
Fan Blade
(FB.0315470)
B.
0047000
Fan Motor, Return
(MO.4410103)
0315470
Fan Blade (FB.0315470)
C.
0137880
Optional Adjustable
Refrigeration Thermostat
(CT.4481084)
Rev. B added NSF certification & Aftermarket part numbers.
©2006 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
®
Merchandisers
D
C
E
B
Wiring Item #
A
Item
Part #
L
B
AMPS AND
ALLASTS
(1)
D.
0428648
D.
0428649
(2)
E.
(3)
D5RRIS
Technical Data Sheet
P/N 0435044B
NSF
®
Certified
June 2006
Description
Wiring Item #
Ballast, 2 lamp Electronic
(BA.4480823)
Ballast, 3 lamp Electronic
(BA.0428649)
Fluorescent Lamp
Replace with like fixtures
P/N 0435044A
(4)
(4)
(5)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPACT D5RRIS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hussmann IMPACT D5RRIS

Summary of Contents for Hussmann IMPACT D5RRIS

  • Page 1 0137880 Optional Adjustable Refrigeration Thermostat (CT.4481084) Rev. B added NSF certification & Aftermarket part numbers. ©2006 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM ® Wiring Item # Item AMPS AND D5RRIS...

  • Page 2: Plan Views

    2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. NOTE: When joining D5 models with D5RRI or D5RRIS models, the drain location for the D5 must be moved forward 2.325 inches (59 mm) to allow fronts to align. Dimensions shown as in. & (mm).

  • Page 3: Nsf Certification

    (152) (1349) NSF Certification These merchandisers are manufactured to meet ANSI /National ® Sanitation Foundation (NSF ) Standard #7 requirements. P/N 0435044B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM Cooler Wall (1214) (881) Coil (241) (1760) (26) (842)

  • Page 4: Electrical Data

    1 Row Canopy and 1 Row Rail 2 Rows Canopy 2 Row Canopy and 1 Row Rail Shelf Lighting 2 Rows 4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 8 ft 12 ft Amperes 8 ft 12 ft 3.08 4.62...
  • Page 5 Light Circuits All components must have mechanical ground, and the merchandiser must be grounded. R = Red = 120V P OWER P/N 0435044B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM Fans 1 ROWN Fans 1 ROWN connectors...

  • Page 6: Light Circuits

    All components must have mechanical ground, and the merchandiser must be grounded. R = Red Y = Yellow G = Green BL = Blue B = Black W = White 6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. WARNING IRCLED NUMBERS ARTS Grayed components in 12 foot models only.
