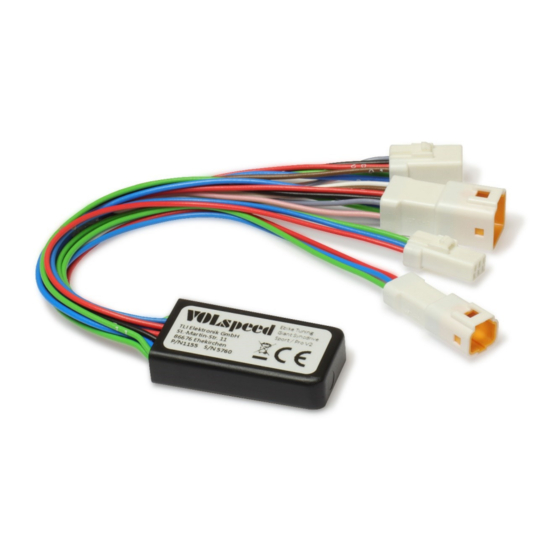

- Page 1 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 Giant Syncdrive Sport / Pro / Life / Core from model year 2017 Operating Manual Installation Guide...
-
Page 2: Product Features
1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 Attention! Read these instructions completely before using the device, keep the instructions and pass them on when handing over the device to other persons. Product Features After installation in E-Bikes / Pedelecs with Giant Syncdrive Sport, Pro, Life or Core drive system (20 / 25 / 32 / 45 km/h) the device offers the following functions: ... - Page 3 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 Legal and Safety Notes / Product Liability Operation of the eBike in public traffic is no longer permitted after installation of the module. The use is only allowed on private areas or designated test and race tracks.
- Page 4 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 Installation (Example: Giant Full E+ 0 Pro) Required tools: Torx TX20 / TX25 / TX30 keys Allen key 6mm ISIS crank puller Lock ring tool for Giant / Yamaha PW-X ...
- Page 5 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 4. Remove screws (1) on the battery holder. 5. Remove screws (2) and left motor cover. 6. Unscrew screws (3) and remove skid plate. Then remove the right motor cover by loosening the screws (4).
- Page 6 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 7. Remove the motor mounting screws on the right (5). 8. Remove the left front motor mounting bolt (6) and loosen the rear (7). 9. Lower the motor as shown.
- Page 7 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 10. Remove the cables from the down tube and disconnect the white 8-pin connector to the display and the white 3-pin connector to the speed sensor. Do not disconnect the red connector to the battery. Speed Sensor Motor Display...
- Page 8 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 Setup Before the first use of the tuning module or after conversion to another bike the setup must always be carried out first. Even in the case of malfunctions, a defined state of the module can be restored by executing the setup.
- Page 9 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 Speed Mode When speed mode is activated, the speed limit for the motor assistance is increased. The limit can be set freely. Turning off the eBike automatically turns off speed mode and must be reactivated after the bike is turned on.
-
Page 10: Dynamic Mode
1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 Dynamic Mode Exceeding the speed limit the motor power is reduced by default very much. A higher pedal force then results no longer in a higher speed, but in a lower motor assistance. For a more natural driving emotion in the dynamic mode the reduction is spread over a larger speed range, the so-called "wall effect"... - Page 11 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 After installing the tuning, the error "Energy Pak Error" or “A4 error” appears on the display. The two small 3-pin connectors of the tuning module were probably connected to the wrong mating connector. The red-painted connectors are the communication lines to the battery. If the tuning is plugged in there, the error appears.
- Page 12 1197_BA_E_Rev0 - VOLspeed Giant Syncdrive Sport/Pro/Life/Core V3 Technical Support For questions, suggestions or problems please email or phone. TLI Elektronik GmbH St.-Martin-Str. 11 86676 Ehekirchen info@volspeed.de phone: +49 (0) 8253 / 9279902 In addition to your request for support inquiries, please include the following information: ...
