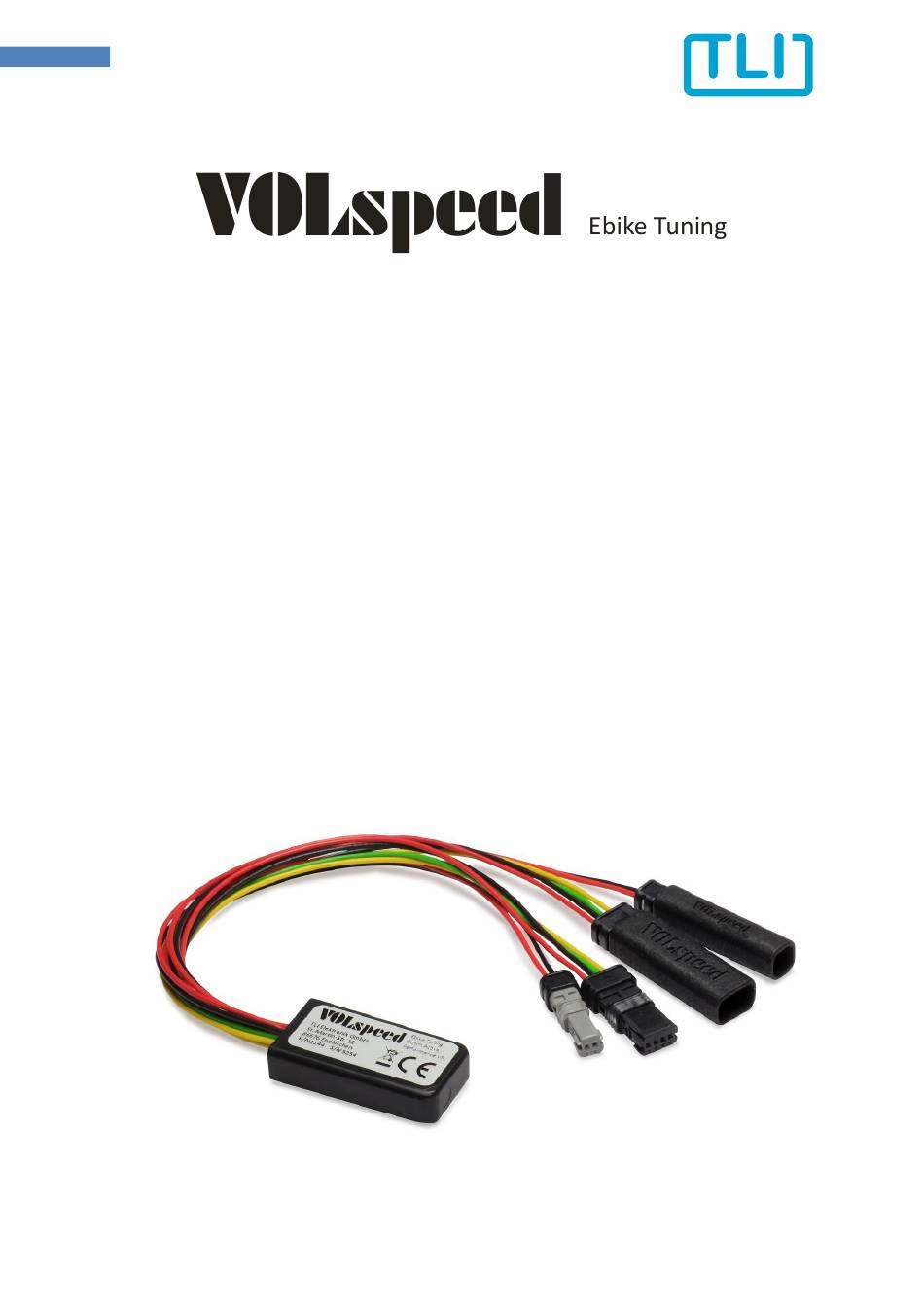

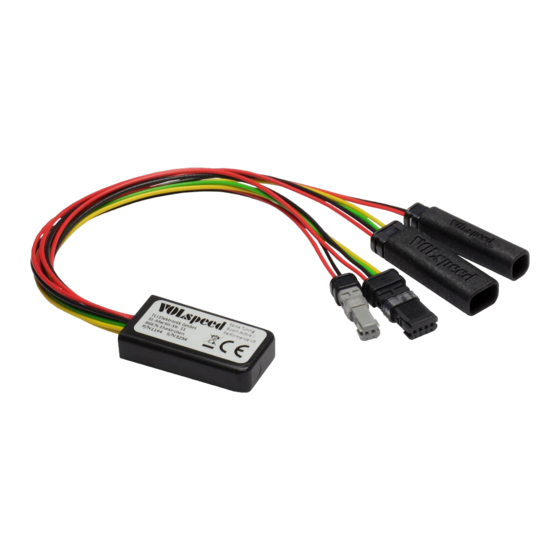

- Page 1 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Bosch Active Line Bosch Performance Line Operating Manual Installation Guide...
- Page 2 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Attention! Read these instructions completely before using the device, keep the instructions and pass them on when handing over the device to other persons. Product Features The device offers the following functions after installation in eBikes with Bosch drive system (20 / 25 / 32 / 45 km/h): ...
- Page 3 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 The eBike is subject to higher mechanical stress when operating at higher speed for which it is not designed. This results in additional safety risks. The installation and operation of the module is at your own risk. The manufacturer accepts no liability for damage in connection with the installation or operation of the unit.
- Page 4 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Depending on the bike model, the engine cover can also be attached with Torx or Phillips screws. With many covers it is also necessary to remove the crank. A suitable crank puller is required for this.
- Page 5 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 4. Connect the tuning module to the free sockets on the engine. Connect the previously disconnected cables to the other connections of the tuning module. 5. Ensure that all connectors are fully inserted.
- Page 6 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 9. Remove the battery again. 10. Place the tuning module in a suitable location and route the cables so that the reassembly of cover is possible. In the picture, the module was pushed into the down tube.
- Page 7 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Setup Before the first use of the tuning module or after moving it to another bike the setup must always be carried out first. Even in the case of malfunctions, the initial state of the module can be restored by executing the setup.
- Page 8 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 If the display changes from 11.1 directly to 0.0, the wiring of the module is faulty. The 2-pin connector to the motor is connected to the wrong socket. Set the factory speed limit here or activate the workshop mode.
- Page 9 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Speed Mode When speed mode is activated, the speed limit for the motor assistance is increased. The limit can be set from 25 to 99 km/h (15.5 to 61.5mph). Turning off the eBike automatically turns off speed mode and must be reactivated after the bike is turned on.
- Page 10 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Enable speed mode – Activation code set Enter the activation code. Always press the minus keystrokes first, km/h then the plus keystrokes. Input example: Code 32: press 3x “minus”, afterwards 2x “plus”.
- Page 11 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Activation Code With the activation code set, the "Speed Mode" and "Setup" functions can only be activated after entering this code. This prevents unauthorized activation. The code consists of 0 to 3 key presses of the minus button, followed by 1 to 3 key presses of the plus button.
- Page 12 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Dynamic Mode Exceeding the speed limit the motor power is reduced by default very much. A higher pedal force then results no longer in a higher speed, but in a lower motor assistance. For a more natural driving emotion in the dynamic mode the reduction is spread over a larger speed range, the so-called "wall effect"...
- Page 13 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Range / Charge Status When speed mode is enabled, the range calculated by the tuning module is displayed instead of the value of the engine control after 5% battery discharge. The reason for this is that the engine control can no longer correctly calculate the range due to the tuning.
- Page 14 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 The setup cannot be activated although I follow the steps described. To prevent accidental activation of the setup, the time slots for the keystrokes to activate the setup are deliberately narrow. Failure to meet the timetable is therefore the most common reason why the setup does not start.
- Page 15 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Must the tuning be removed for software updates of the motor control or the display? No. However, you must activate workshop mode, see “Setup”. As a result, the tuning module is completely deactivated and no longer intervenes in the data traffic between motor control and display.
- Page 16 1144_BA_E_Rev2 - VOLspeed Bosch Active / Performance V3 Technical Support For questions, suggestions or problems please contact us by email or phone. TLI Elektronik GmbH St.-Martin-Str. 11 86676 Ehekirchen info@volspeed.de phone: +49 (0) 8253 / 9279902 In addition to your request for support inquiries, please include the following information: ...
