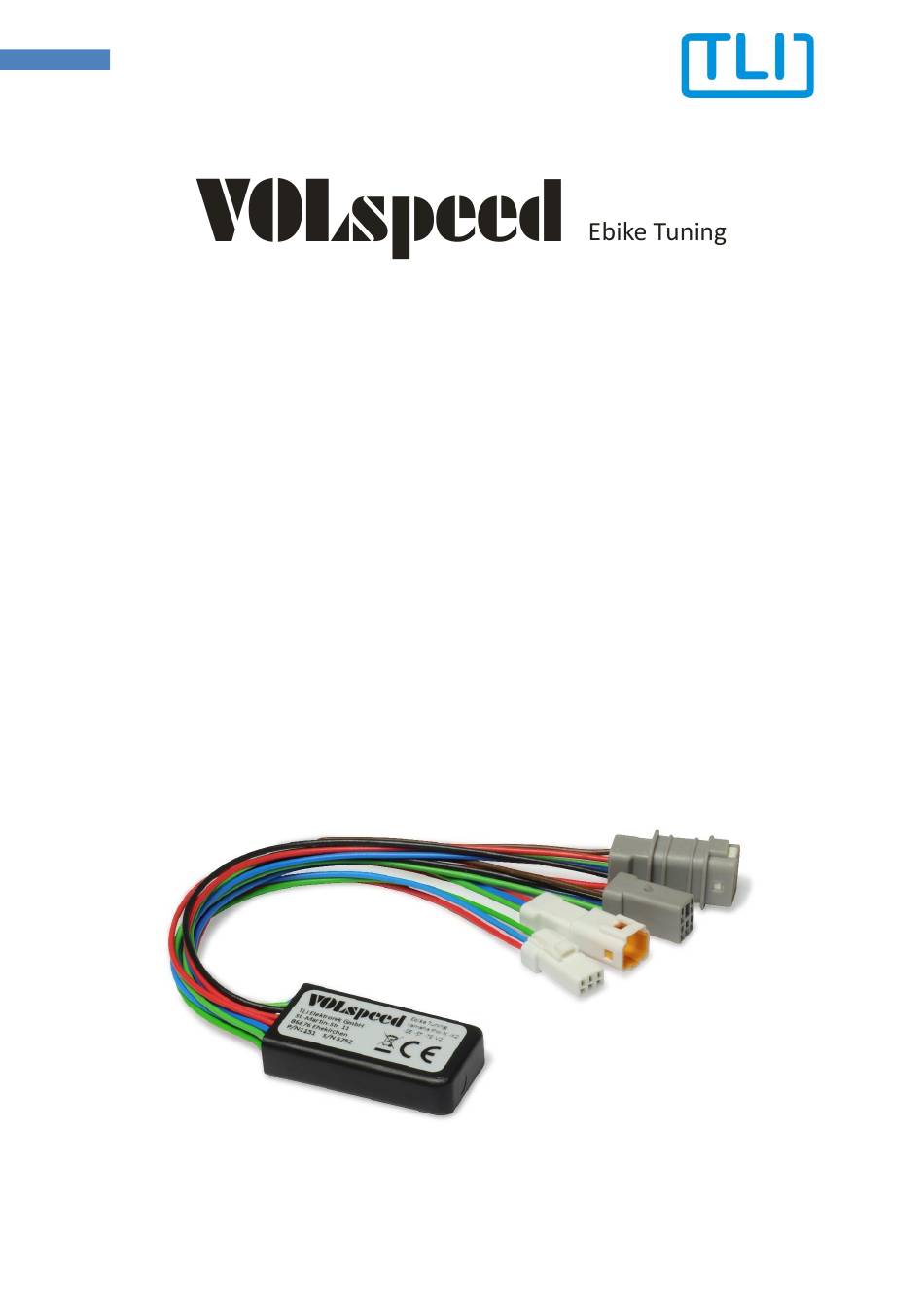

- Page 1 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Yamaha PW-X / PW-X2 / PW-SE / PW-ST / PW-TE Operating Manual Installation Guide...
- Page 2 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Attention! Read these instructions completely before using the device, keep the instructions and pass them on when handing over the device to other persons. Product Features The device offers the following functions after installation in eBikes with PW-X, PW-X2, PW- SE, PW-ST and PW-TE drive system: ...
- Page 3 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Legal and Safety Notes / Product Liability Operation of the eBike in public traffic is no longer permitted after installation of the module. The use is only allowed on private areas or designated test and race tracks.
- Page 4 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Installation PW-SE (Example: Haibike SDURO FullSeven 6.0) Required tools: Allen key 6mm Allen key 3mm Torque ratchet with Allen key 6mm Procedure: 1. Remove battery 2. Remove the skid plate by removing the 4 screws (1) and (2). The screws behind the chainring do not need to be removed.
- Page 5 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE 6. Plug in the tuning module as shown. Speed Sensor Motor Display 7. Insert the battery and carry out the initialization, see separate point setup. 8. If setup succeeds, remove the battery again. 9. Place the tuning module in a suitable location and route the cable so that the engine can be folded up without squeezing the cables.
- Page 6 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Installation PW-X (Example: Haibike SDURO FullSeven 10.0) The fixing screw of the PW-X motor marked with (6) is not directly accessible. In the following description, therefore, the chainrings are dismounted. It may also be possible to disassemble the screw with a 5mm Allen wrench with short leg or through a recess in the chainring.
- Page 7 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Procedure: 1. Remove battery 2. Remove the skid plate by removing the 4 screws (1) and (2). 3. Remove the chain from the chain ring and let it hang on the front derailleur. 4. Remove the chainring retaining bolts (4) and remove the chainrings. If necessary, use a nut wrench to counter.
- Page 8 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Setup (until model year 2018) Before the first use of the tuning module or after conversion to another bike the setup must always be carried out first. Even in the case of malfunctions, a defined state of the module can be restored by executing the setup.
- Page 9 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Setup (from model year 2019) Before the first use of the tuning module or after conversion to another bike the setup must always be carried out first. Even in the case of malfunctions, a defined state of the module can be restored by executing the setup.
- Page 10 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Speed Mode (until model year 2018) When speed mode is activated, the speed limit for the motor assistance is increased. The limit can be set from 25 to 99 km/h. Turning off the eBike automatically turns off speed mode and must be reactivated after the bike is turned on.
- Page 11 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Speed Mode (from model year 2019) When speed mode is activated, the speed limit for the motor assistance is increased. The limit can be set from 25 to 99 km/h. Turning off the eBike automatically turns off speed mode and must be reactivated after the bike is turned on.
- Page 12 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Dynamic Mode (until model year 2018) Exceeding the speed limit the motor power is reduced by default very much. A higher pedal force then results no longer in a higher speed, but in a lower motor assistance. For a more natural driving emotion in the dynamic mode the reduction is spread over a larger speed range, the so-called "wall effect"...
- Page 13 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Dynamic Mode (from model year 2019) Exceeding the speed limit the motor power is reduced by default very much. A higher pedal force then results no longer in a higher speed, but in a lower motor assistance. For a more natural driving emotion in the dynamic mode the reduction is spread over a larger speed range, the so-called "wall effect"...
- Page 14 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Range Calculation The speed mode can significantly reduce the range of the eBike. In the original condition of the bike, the range is calculated only from the current battery charge level and the selected support level.
- Page 15 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Is the total mileage correct even after removing the module? Yes. The total km measured by the drive unit are not changed by the tuning. This is ensured by a continuously working compensation function in the tuning module. However, before removing the module, the bike should remain switched on at standstill with the speed mode switched on until it shuts off by itself.
- Page 16 1151_BA_E_Rev2 - VOLspeed Yamaha PW-X/PW-SE/PW-ST/PW-TE Technical Support For questions, suggestions or problems please email or phone. TLI Elektronik GmbH St.-Martin-Str. 11 86676 Ehekirchen info@volspeed.de phone: +49 (0) 8253 / 9279902 In addition to your request for support inquiries, please include the following information: ...
