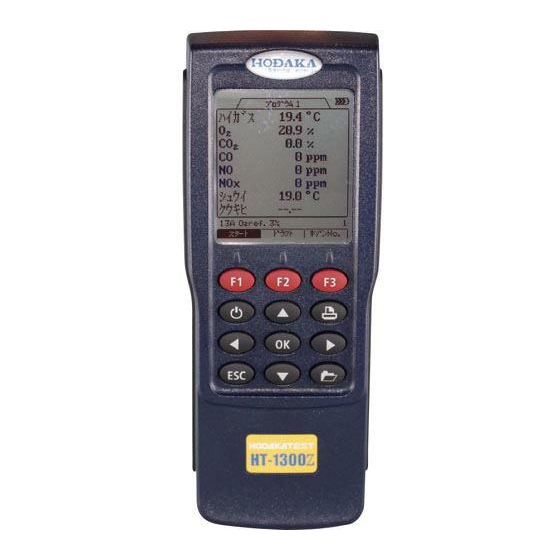

HODAKA HODAKATEST HT-1300Z User Manual

Flue gas analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1-6-17 Takadono Asahiku
Osaka Japan 535-0031
TEL+81-(0)6-6922-5501 FAX +81-(0)6-6922-5895
Email info@hodaka-inc.co.jp
URL http://www.hodaka-inc.co.jp
ver.180801
HODAKA CO., LTD.
Flue gas analyzer
HODAKATEST　HT-1300Z
User manual
HT-1300Z
typeS: O2,CO,℃
typeA: O2,CO,NO,℃
typeB: O2,CO,NO low,℃
typeC: O2,COhigh,℃
typeD: O2,CO,NO,NO2,℃
typeE: O2,NO,NO2,SO2,℃

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HODAKATEST HT-1300Z and is the answer not in the manual?

Questions and answers

Related Manuals for HODAKA HODAKATEST HT-1300Z

Summary of Contents for HODAKA HODAKATEST HT-1300Z

  • Page 1 Flue gas analyzer HODAKATEST　HT-1300Z User manual HT-1300Z typeS: O2,CO,℃ typeA: O2,CO,NO,℃ typeB: O2,CO,NO low,℃ typeC: O2,COhigh,℃ typeD: O2,CO,NO,NO2,℃ typeE: O2,NO,NO2,SO2,℃ HODAKA CO., LTD. 1-6-17 Takadono Asahiku Osaka Japan 535-0031 TEL+81-(0)6-6922-5501 FAX +81-(0)6-6922-5895 Email info@hodaka-inc.co.jp URL http://www.hodaka-inc.co.jp ver.180801...

  • Page 2: Table Of Contents

    1．Content 　8.3　　 Operation - Stored data menu 　 8.3.1　 Stored data menu 　　8.3.1.1　　 View stored No. 1. CONTENT 　　8.3.1.2　　 Delete stored No. 　　8.3.1.3　　 Delete stored No. all together 2. INTRODUCTION 　　8.3.1.4　　 Data in stole 　2.1　 HT-1300Z　Flue gas analyzer 　　8.3.1.5　　 Data transfer 　　2.1.1　Function 　　8.3.1.6　　...

  • Page 3: Introduction

    2. Introduction 2.2　 Important instructions regarding the user manual 　The user manual is an important part of the scope of supply and assures not only the correct operation 2.1　 The flue gas analyzer HT-1300Z　 and use of the analyzer, but also the safety of the user and the environment. The flue gas analyzer HT-1300Z is used for the following purposes : 2.1.1　Function 　Several marks are used in this manual.

  • Page 4: Device Illustrations

    Please charge every 3 weeks. During long time storage, battery may discharge and sensor might be error or stored date might be loose. For correct measurement, please ask calibration to HODAKA CS center onece a year. ・ During measurement the gas outlet below the belt clip must not be covered! （We recommend to do calibration every 6 months)

  • Page 5: Connection Port

    4.2　　Connection port 5.　　Power supply HT-1300Z can be operated by: ・Battery charger (AC100-240V 50/60Hz　DC9V 550mA) ・Internal battery （Standard scope of supply / max. 8 hours continues operation (in case back right off) Danger Use the HT-1300Z only with the HT power supply. 6.　　Storage 6.1　　...

  • Page 6: Operation

    8.　　OPERATION 8.1.2 Switch on the unit 8.1　　Operation - Basic 8.1.1 Charge ：Switch on the unit After the battery charger is connected, the indication changes The mounted sensors types are indicated on the bottom of to "Charge battery" window. During the battery charger is connected, charge % is indicated. After approx.

  • Page 7: Switch Off The Unit

    Measurement items Selected measurement program Indication Items Unit Oxygen Fuel and O2 calculation value Carbon dioxide Carbon monoxide ppm, mg/m , (mg/kWh, mg/MJ) Current page Carbon monoxide CO/0% CO reference O2（O2=0%） CO reference O2（O2=?%） refO ppm, mg/m , g/m Max.24 measurement items can be indicated Nitrogen monoxide ppm, mg/m , (mg/kWh, mg/MJ)

  • Page 8: Operation - Measurement Menu

    8.2 Operation - measurement menu 8.2.2.2　　 CO cut-off 8.2.1 Measurement menu ：change the CO threshold value Can be set up every 100 ppm : 300ppm～3000ppm Can be set up every 500 ppm : 3000ppm～10000ppm F1：Measurement F2：Stored data menu F3：Setting menu If CO concentration exceeds threshold value, purge pump starts work and expose ambient air for protect sensor.

  • Page 9: Sub Menu

    8.2.2.5　　 O Reference value setting 8.2.4.1　　 Sub menu item setting Fuel type ：Change O reference value ：Move cursor up and down ：Change item ：Turn back to initial value Initial value : Test gas＝0%,other items =3% ：Stop item selection, move to measurement window ：「8.2.2.4　Fuel indication setting」...

  • Page 10: Draft Measurement

    8.2.6　　 Save data ：scroll sites Stored No. is shown as left window. You can write over it, but ：Page change original data will be deleted. ：start measurement ：Confirm the storage position. ：「8.2.5　Draft measurement」 ：「8.2.6　Save data」 Program No. ：Move to the measurement window Date and time ：「8.4.4　Sub menu」...

  • Page 11: Zero Setting

    Notice Delete stored 8.2.9　　Zero setting Please wait… 8.3　　Operation - Stored data menu 8.3.1　　Stored data menu 8.3.1.1　View stored No. ：Move cursor ：Select 「Zero setting」, confirm it. ：Move cursor Next window. ：Select 「View stored sites」, and confirm it. Next window ：next window In case you do not press Okay, after about 8 seconds, it automatically move to next window.
  • Page 12 8.3.1.2　　Delete stored sites 8.3.1.4　　Import site data Please do not use this function. ：Move cursor If 「Import site data」 is opened by mistake, left window will be shown. Press［F2key ： No], and wait until the window is ：Select 「Delete sites」, and confirm it. automatically switched to stored data menu.

  • Page 13: Operation - Setting Menu

    8.3.1.6　　Memory occupation ：Switch Japanese and English The central current search is the function that to find the ：Move cursor ：Back to above window ：Select 「Memory occupation」,confirm it. Next window. Setting items Range Description LCD　contrast Adjust LCD contrast Current memory occupation is shown. -14～7 0 ～...

  • Page 14: Service Menu

    8.5　　Print out 8.4.1.3　　Service menu Please do not use this function. If 「Service」 is opened by mistake, left window will be shown. For print out, optional infrared Press［ESC key] 5times. Warning Do not see infrared printer (HT-1610) is needed. A sample of gas hour：mｉｎｕｔｅｓ：seconds measurement 8.4.1.4　　Service...
  • Page 15 9.　　Calculation basis ® 　　HODAKA TEST 　　　HT-1300Z Measure- Measurement range 0～20.9vol% ment Accuracy ±0.2vol.% Resolution 0.1vol% Response with in 20sec. CO(H2 Compensation) Measurement range 0～2000ppm (max. over load 10000ppm) Accuracy ±10ppm or ±5% reading (0～2000ppm) ±10% reading (2001～10000ppm) Resolution 1 ppm Response Within 40sec.(0～2000ppm) Within 60sec.(2001～10000ppm)

  • Page 16: Specification

    11.　　Condensate trap Fuel 13A, 6C, LPG, Kerosene, Light oil, Heavy A, Heavy C, Pellet Exchange star filter Sensor galvanic CO (CO very high) electrochemical NO (NO low) electrochemical O-ring electrochemical Star filter electrochemical Combustible gas temp. K thermo couple Ambient air temp. K thermo couple Main unit Temperature...

  • Page 17: Message

    Guarantee: During guarantee period, if your instrument brakes down although correct usage based on this user manual, we will repair it by free of charge. In case you have trouble, firstly please contact to HODAKA CO., LTD. (+81-(0)6-6922-5501), then send your instrument to HODAKA CO., LTD. International transportation cost is not include in guarantee.
