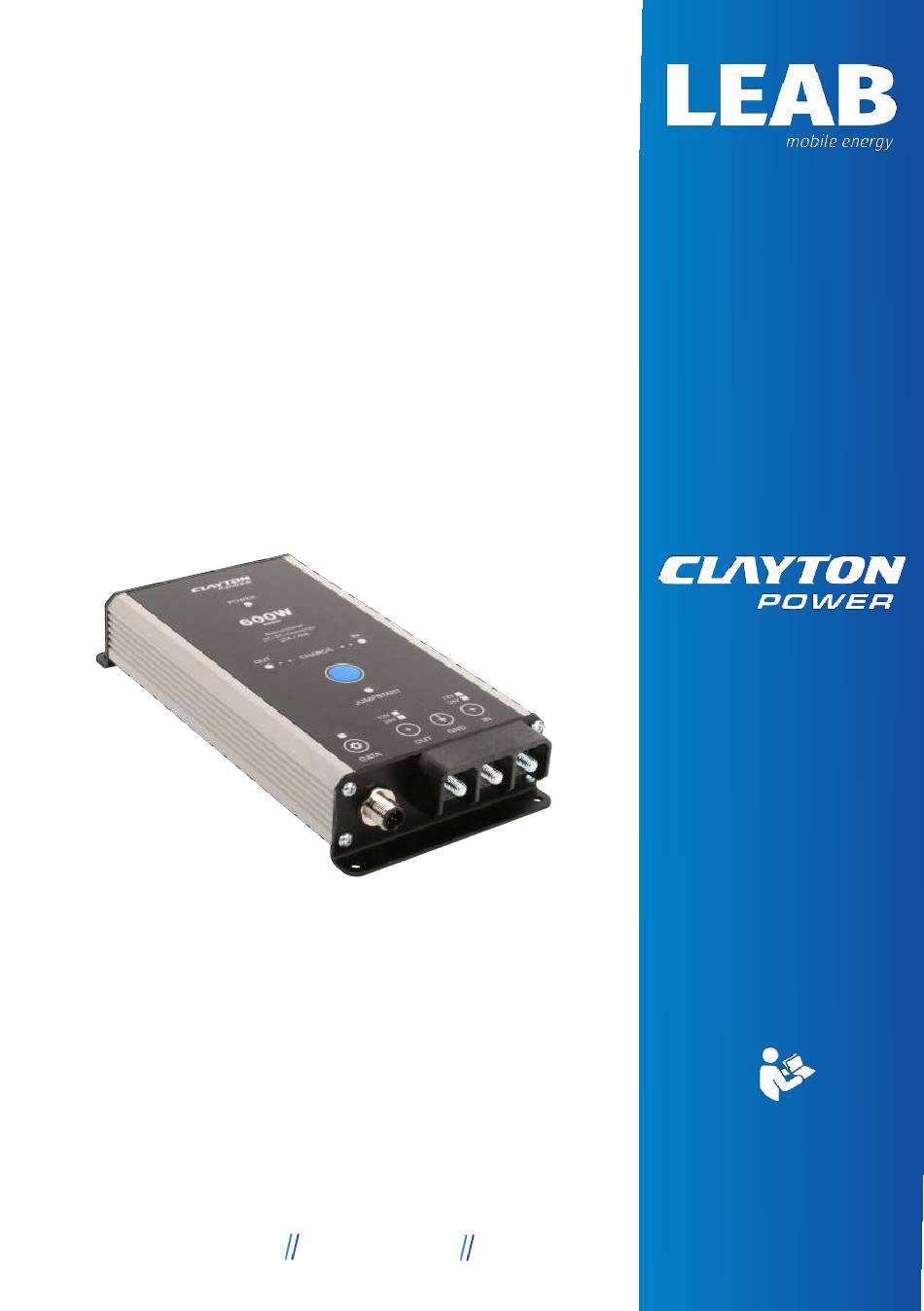

- Page 1 CHARGE BOOSTER CLP 600 Manufac- tured by USER MANUAL VERSION 4 29/03/2021 www.leab.eu LEAB Automotive GmbH Thorshammer 6 24866 Busdorf...
-
Page 2: Table Of Contents
LEAB Automotive GmbH Table of Contents 1 About the manual......................... 2 General Safety........................Intended use ....................... Foreseeable misuse ....................3 About the product ........................ 4 Technical Specifications ....................5 Package Contents ......................... 6 Charging Characteristic ...................... 7 Assembly ..........................8 Installation .......................... -
Page 3: About The Manual
This manual is aimed at Skilled workers in the field of automotive elec- trics. Any modifications to the product or its components are prohibited and do not conform to its intended use. Only use original LEAB or LEAB-approved ac- cessories. Throughout the manual, you will be alerted to warnings and safety notices about potential hazards associated with handling the device. -
Page 4: General Safety
LEAB Automotive GmbH DANGER Danger that will lead to severe injury or death A safety instruction with the signal word Danger indicates a hazard with a high degree of risk which, if not avoided, will result in death or severe injury. Read the safety information carefully and follow the instructions to avoid it. -
Page 5: Intended Use
LEAB Automotive GmbH 2.1 Intended use The CLP 600 booster has been developed for permanent installation in vehicles for charging additional batteries (lead and lithium). The device may be used in both 24 V and 12 V vehicle power circuits and charges batteries with nominal voltages of 12 V and 24 V. -
Page 6: About The Product
LEAB Automotive GmbH 3 About the product Fig. 1: CLP 600 1 Data connection (M12) 2 Output (+) 3 Ground (GND) 4 Input (+) 5 Jump start button (emergency start) 4 Technical Specifications Part no. 1041004001 Modell CLP 600 Input voltage 12 V / 24 V (11.5 V …... -
Page 7: Package Contents
LEAB Automotive GmbH Part no. 1041004001 Operating display Internal consumption (standby) < 1.6 W Wakeup voltage (D+) 4 V … 36 V Operating temperature -25 °C … +80 °C International Protection (IP class) IP21 Dimensions (L x W x H) -
Page 8: Charging Characteristic
LEAB Automotive GmbH 6 Charging Characteristic The charging of lead-acid batteries is fully automatic with a five-stage char- ging characteristic for optimum battery charging. Phase Description 12 V 24 V Stage 1 Constant current 40 A 20 A (Level 1) -
Page 9: Assembly
LEAB Automotive GmbH 7 Assembly To mount the device, perform the following steps: NOTE Do not mount the device directly next to or above batteries. Choose a cool, dry and well-ventilated mounting site. 1 Fasten the device to the 4 lateral holes (5 mm Ø). -
Page 10: Normal Operation
LEAB Automotive GmbH Connecting Batteries Notice Device defect due to excessive tightening torque The connection bolts of the device can be damaged by an excessive tightening torque. 1. Apply between 5.5 Nm and 6 Nm tightening torque to each nut. 2. Do not overtighten the nuts. -
Page 11: Switching Off The Device
LEAB Automotive GmbH 9.2 Switching off the Device The device switches off automatically if no wake-up signal (pin 2) is applied. 9.3 Operating Status The LEDs indicate the operating status of the device. Status Description Power Green, steady light Device active, wake-up signal active... -
Page 12: Emergency Start Function
LEAB Automotive GmbH Status Description IN/OUT 24 V Green, steady light 24 V charging active IN/OUT 12 V and 24 Green, steady light Automatic input voltage detection active IN/OUT 12 V or 24 V Red, flashing Input voltage too low / too high... -
Page 13: Eu Declaration Of Conformity
LEAB Automotive GmbH 12 EU Declaration of Conformity The The CLP 600 charge booster from Clayton Power com- plies with the requirements of the following directives: – 2014/30/EU: EMC – 2011/65/EU: RoHS LEAB Automotive GmbH Thorshammer 6 24866 Busdorf... -
Page 14: Connection Diagram: Lithium Battery From Clayton Power
LEAB Automotive GmbH 13 Connection diagram: Lithium battery from Clayton Power LEAB Automotive GmbH Thorshammer 6 24866 Busdorf... -
Page 15: Connection Diagram: Lead-Acid Battery
LEAB Automotive GmbH 14 Connection diagram: Lead-acid battery LEAB Automotive GmbH Thorshammer 6 24866 Busdorf... - Page 16 Tel: +49 (0) 4621 9 78 60-0 Fax: +49 (0) 4621 9 78 60-260 info@leab.eu It is prohibited to copy, duplicate, translate or otherwise pass on the content of this guide to third parties without the express written permission of LEAB.
