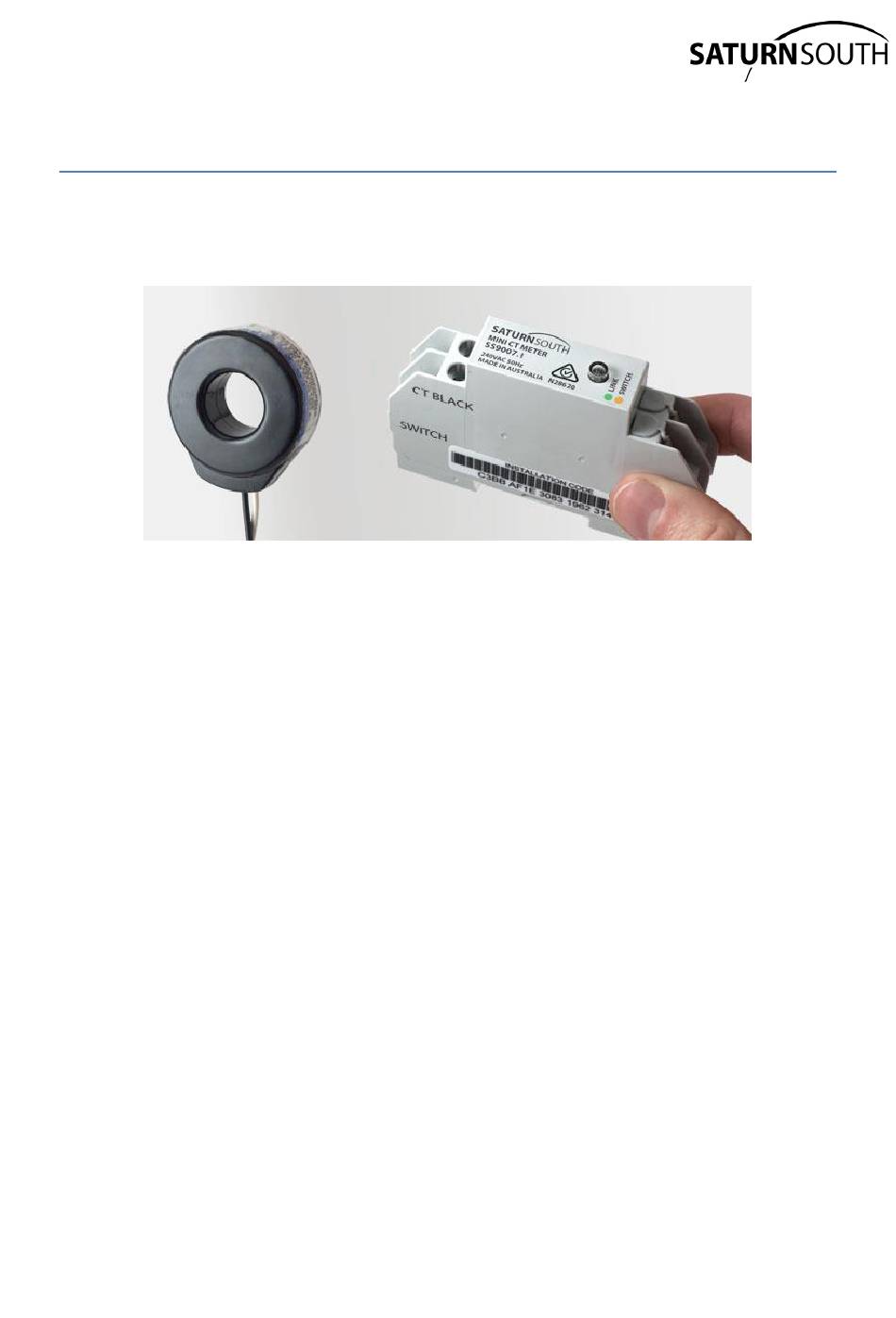

- Page 1 SS9007.2 Mini CT Meter User Manual – Version 5 – Std HA Release (build 5977+) D401.2-5 30 Dec 2015...
-
Page 2: Table Of Contents
Table of Contents Safety Notices ..........................3 Quick Reference ..........................4 Product Overview ........................... 5 Technical Specifications ........................6 Commissioning and Installation Instructions .................. 7 Before Installation ........................7 Installation ..........................7 Commissioning ........................11 Switching ............................12 Metering ............................13 Device Clusters and Attributes ...................... -
Page 3: Safety Notices
Servicing of this device in the field is not possible and should not be attempted. If servicing is required, please return this device to Saturn South or an authorised distributor. Opening the product enclosure, for any reason, will render the Product Warranty void. -
Page 4: Quick Reference
Quick Reference SS9007 Mini CT Meter – Std HA Release Green Amber Connectivity Switch Comment Fast, continuous blinking between Green When device is in the Factory Reset state and Amber. Four blinks of amber, four blinks of green, Connected When device is set to Locate Mode repeating. -
Page 5: Product Overview
3 Product Overview The SS9007 Mini CT Meter is a compact power metering and load switching device that can be used to monitor and control single phase electrical loads. Designed to sit on a standard switchboard DIN rail, the SS9007 has the same form factor as a standard Miniature Circuit Breaker, and accepts a wide range of external Current Transformers. -
Page 6: Technical Specifications
4 Technical Specifications Type: Single Phase Meter and Switch with External Current Transformer Model: SS9007 Operational Voltage Range: 70-240VAC Operational Frequency Range: 40-90Hz Operating Temperature Range: -20°C to +70°C for non-switching variant -20°C to +50°C for switching variant Storage Temperature Range: -25°C to +80°C Relative Humidity: 10-95% non-condensing Average Power Consumption: <1W Mass: 0.080kg... -
Page 7: Commissioning And Installation Instructions
The radio environment at the location of installation may be tested to ensure the new device will be able to connect to the existing ZigBee network. For more information on radio environment test equipment and procedures, please contact Saturn South. There are two stages to device installation: 1. - Page 8 IMPORTANT: • Ensure the source of the reference phase is isolated before performing these steps. • The SS9007 Mini CT Meter is not rated as a protection device and may only be connected to a circuit that is protected up-stream by an approved circuit breaker. 3.
- Page 9 IMPORTANT: • The phase used to power the Mini CT Meter must match the phase being monitored by the CT, or the meter will not generate accurate measurements. 6. Cable of minimum cross section 0.1mm and maximum cross section 1.5mm (stranded) or 2.5mm (solid core) may be used.
- Page 10 IMPORTANT: • If multiple SS9007s are being used to monitor a polyphase phase load, care must be taken to ensure each SS9007 is powered by the corresponding phase. Figure 3: Example three phase installation. Note that each Mini CT Meter is powered by the circuit it is monitoring. 7.
-
Page 11: Commissioning
To complete the installation process, the SS9007 Mini CT Meter must be joined to an existing ZigBee network. The following instructions apply specifically to networks based on the Saturn South ESBox Ethernet-ZigBee Gateway device, however the process will be very similar when using third party ZigBee coordinators. -
Page 12: Switching
6 Switching Switching variants of the SS9007 Mini CT Meter can be used to switch loads of arbitrary size indirectly using an inbuilt 5A 240VAC latching relay. If your device is marked with an R on its variant label (e.g. “120A/R”), the two terminals marked 'SWITCH' are connected internally to an isolated relay. -
Page 13: Metering
Current is measured using a clip-on current transformer (CT), with nominal primary current ratings of 40A and 120A available as standard. Each individual Saturn South meter is calibrated in the final stage of the production process. The calibration procedure matches each device to a particular CT variant, meaning that measurements will not be accurate if a device calibrated for a 120A CT is used with a 40A CT. -
Page 14: Device Clusters And Attributes
8 Device Clusters and Attributes The following Clusters are supported in the Std HA release of the SS9007 Mini CT Meter: • Basic • On/Off • Simple Metering This section lists the available attributes in each supported cluster. All SS9007 ZigBee clusters are accessed via endpoint 0x0A. -
Page 15: On/Off Cluster
Switch State Simple Metering Cluster Cluster ID: 0x0702 (1794) Manufacturer ID: 0x0000 (0) Saturn South devices expose an expanded set of attributes in a non-standard range within the Simple Metering Cluster on endpoint 10 (0x0A): Attr ID Attr ID Attribute Name... -
Page 16: Troubleshooting
LSSS button sequence on the ESBox to enable ‘Permit Joining’ mode). • Try to join the device again – Saturn South metering devices will initially scan a reduced subset of the full range of available ZigBee channels. If the network is on a channel that is not in the ‘preferred channels’...
