- Page 1 SYSTEM 1 September 2014 Single Wall Connecting Flue Pipe for Multi-Fuel Appliances Tel: +353 46 95 58030 Fax: +353 46 95 58034 Email: sales@miflues.ie Web: www. miflues.ie...
- Page 2 Mi-Flues System 1 Single Wall Connecting Flue Pipe and Rigid Flue Liner INTRODUCTION JOINTING SYSTEM Mi-Flues System 1 is a 1mm thick 316 grade Mi-Flues System 1 allows for a 50mm overlap distance stainless steel single wall connecting flue pipe per joint.

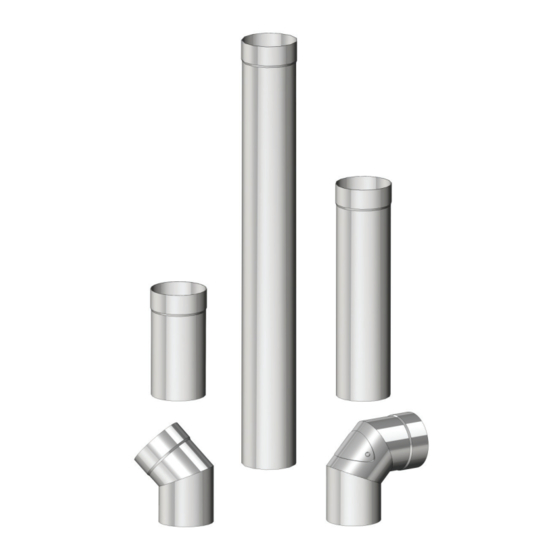

- Page 3 Mi-Flues System 1 Single Wall Connecting Flue Pipe and Rigid Flue Liner LENGTHS 45 ° Bend Lengths are available in 250mm, 500mm and Used to provide a 45° 1000mm change of direction or can be used in pairs to create an offset.
- Page 4 Mi-Flues System 1 Single Wall Connecting Flue Pipe and Rigid Flue Liner COWL 45 ° TEE A cowl is the top rain cap for a chimney. Its purpose is A 45° Tee is used to create to stop the infiltration of rain or snow to the inside of the a bend in a flue run.
- Page 5 Mi-Flues System 1 Single Wall Connecting Flue Pipe and Rigid Flue Liner Safety / Installation / Regulations Safety / Installation / Regulations Connection to the appliance Distance to Combustible Materials System 1 is designed to fit straight into the Mi-Flues System 1 should be fitted at least three times...
- Page 6 Mi-Flues System 1 Single Wall Connecting Flue Pipe and Rigid Flue Liner System 1 connection to System 2 twin wall OFFSET CHART insulated stainless steel chimney This offset chart uses the recommended System 2 Cowl Mi-Flues System 1 45° bends. Within a run of...
