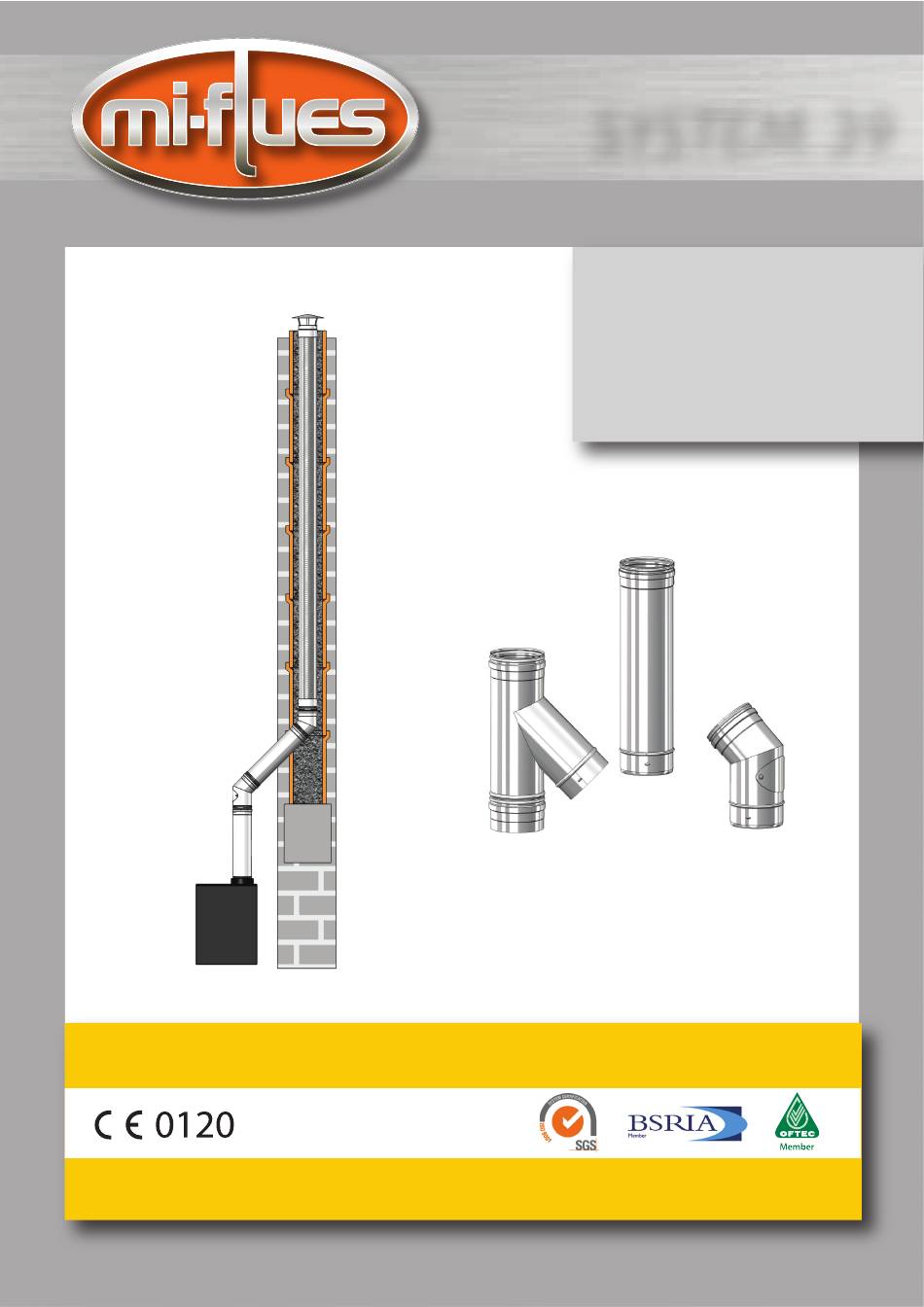

- Page 1 SYSTEM 39 Single Wall 304 Grade Stainless Steel Connecting and Relining Flue Pipe Tel: +353 46 95 58030 Fax: +353 46 95 58034 Email: sales@miflues.ie Web: www. miflues.ie...
- Page 2 INTRODUCTION INSTALLATION 1. Select the components required for installation. Mi-Flues System 39 is a factory made single wall flue 2. Ensure the male end of the liner chimney system system comprising of a range of lengths, tees, bends always points downwards in the direction of the heating and associated fittings and supports.
- Page 3 Mi-Flues System 39 Single Wall Stainless Steel Chimney LENGTHS 45° BENDS WITH DOOR Used to provide a 45° change of direction or can be used in pairs Lengths are available in 250mm, create offset. 500mm, 1000mm and 1250mm. inspection door provides access for cleaning.
- Page 4 Mi-Flues System 39 Single Wall Stainless Steel Chimney 45° TEE ADAPTOR—REDUCING (Tapered) The System 39 reducing adaptor Used to provide a 45° change can only be used on oil and gas of direction. Also used as an appliances where recommended by inspection/cleaning the appliance manufacturer.
- Page 5 Mi-Flues System 39 Single Wall Stainless Steel Chimney H COWL WALL BRACKET A Wall Bracket provides A H Cowl is used to reduce the possibility of down lateral support. It should draught problems occurring. The H Cowl slides be used at 1.5mtr intervals.
- Page 6 Note: **3xdiameter of the flue All flue systems must be installed according to current Building Regulations. Mi-Flues has adopted a policy of continuous product review, and in the interests of development and improvement the Company reserves the right to vary the appearance and performance of any of its products without prior notice. Correct at time of print.
