Table of Contents

Item
Part #
Description
F
A
T
AN
SSEMBLIES AND
HERMOSTATS
A.

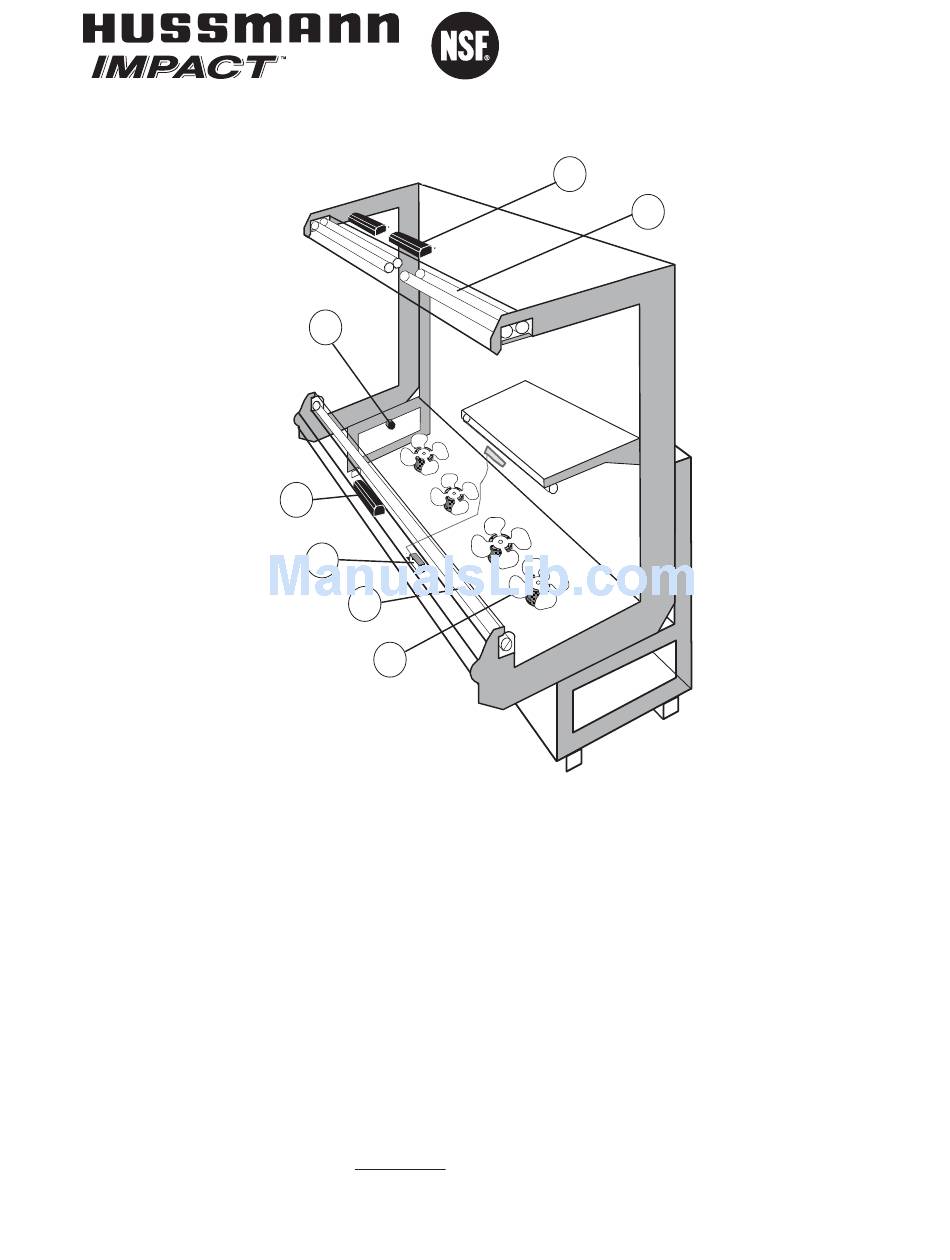

6W Fan Assembly
0058698
Fan Motor, Evaporator
0142780
Fan Blade
embossing toward motor
B.
0411744
Standard Non-adjustable
Thermostat
C.
0137880
Optional Adjustable
Refrigeration Thermostat
Note: Changed items have been underlined.
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
®
Merchandisers
B
D
C
E
A
Wiring Item #
1
2
3
D
E
Item
Part #
Description
L
B
AMPS AND
ALLASTS
D.
0428648
Ballast 2 lamps
D.
0428649
Ballast 3 lamps
E.
Fluorescent Lamp
Replace with like fixtures
P2
Data Sheet Set
P/N 0378424B
NSF
®
Certified
December, 2003
Wiring Item #
4
4
5
P/N 0378424B
