Page 1: Table Of Contents

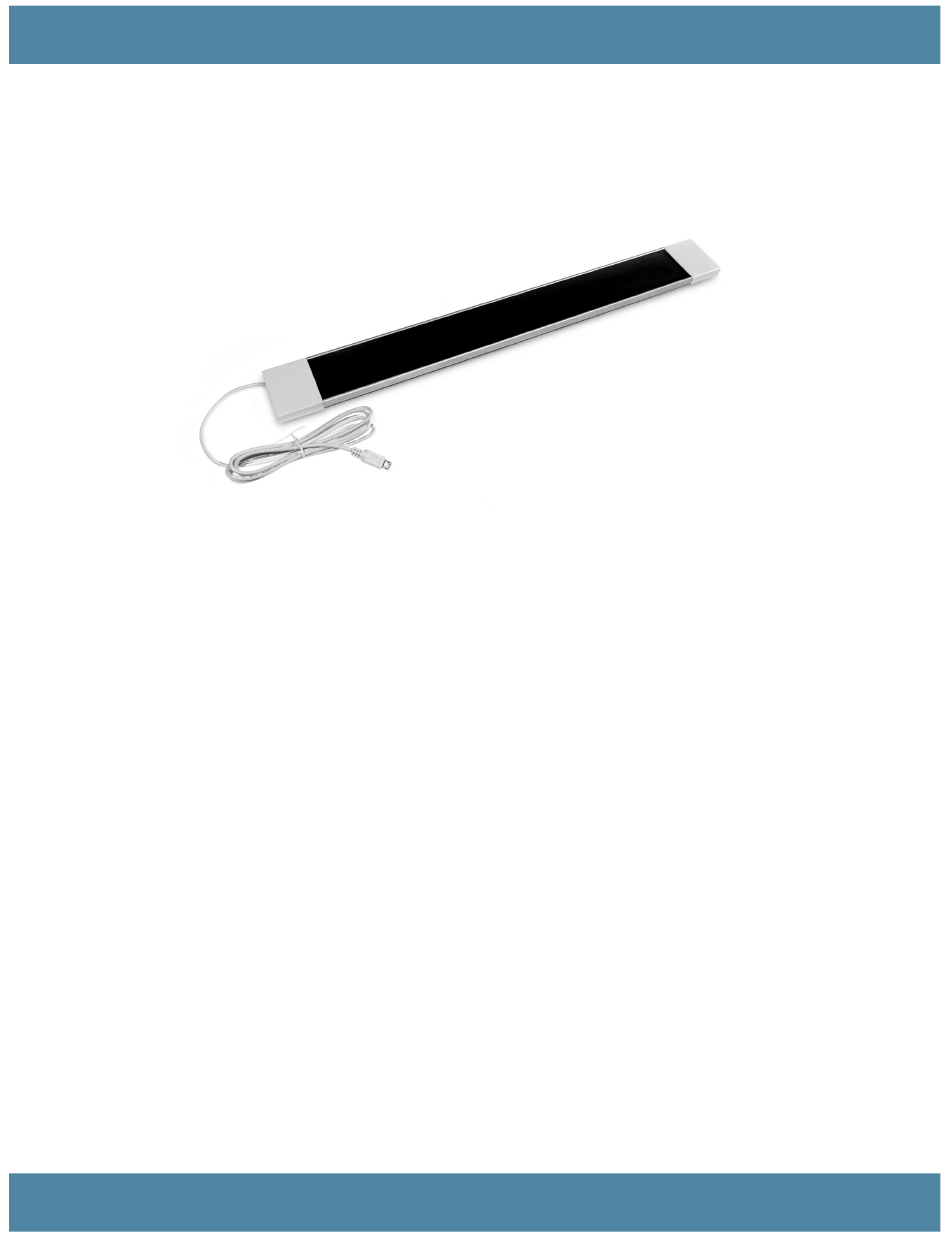

BLISS Automation ™ ALTA SOLAR PANEL INSTALLATION AND REFERENCE GUIDE Declarations Safety Instructions BLISS™ Solar Panel Overview Before Installation - What do you need to know! BLISS™ Solar Panel Installation Guide Troubleshooting... -
Page 2: Declarations
Declarations U.S. RADIO FREQUENCY FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Safety Instructions
Safety Instructions ATTENTION: IMPORTANT SAFETY INSTRUCTION TO BE READ BEFORE INSTALLATION: • Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • Incorrect installation can lead to serious injury and will void manufacturer’s liability and warranty. ×... -
Page 4: Bliss™ Solar Panel Overview

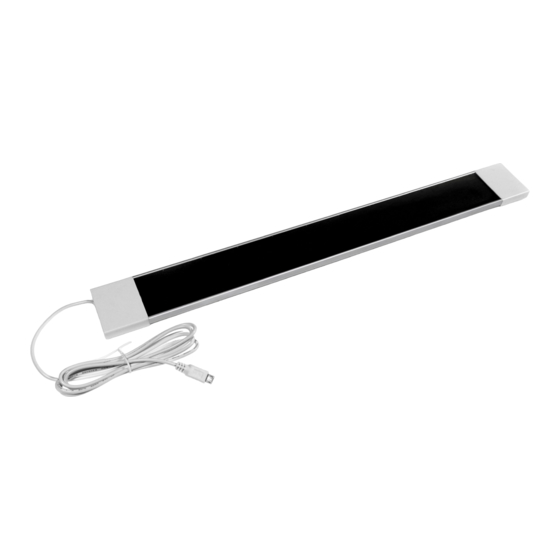

BLISS Solar Panel Overview ™ AVAILABLE PRODUCTS Roller Shades Window Shadings Dual Shades Natural Woven Honeycomb Shades Wood / Faux Tilt-Only SPECIFICATIONS voltage ± 10%; Working Voltage (Vm): Electrical performance tolerance: current ± 10% International solar energy inspection solar radiation 1000W/m2; 1.5 Open circuit voltage (Voc): 6.3V standards:... -
Page 5: Before Installation - What Do You Need To Know
Before Installation - What do you need to know! 1. CONSIDER THE GEOGRAPHIC LOCATION OF THE INSTALLATION Understanding the sun’s motion relative to a site is a crucial element to predict the solar panel performance. In other words, a solar panel located in Texas will harvest more energy than a unit installed in Canada (considering both facing south, using similar window). - Page 6 Before Installation - What do you need to know! 3. DEFINE THE BEST LOCATION TO INSTALL The solar panel is designed for indoor use only. To maximize the performance of the solar panel, it should be installed as close as possible to the window glass, allowing as much natural light as possible to reach the panel.
-
Page 7: Bliss Solar Panel Installation Guide
Before Installation - What do you need to know! 4. HOW EFFICIENT MY SOLAR PANEL WILL PERFORM? There is no direct answer for this question. Beside all the elements already described that impact how much energy will be harvested from the sun, there is also the question of how fast the energy will be drained by the shade itself due to: •... - Page 8 BLISS Solar Panel Installation Guide 2. METAL “C” INSTALLATION BRACKET The Metal “C” Installation Bracket is provided as an option when an installation direct on the glass is not possible. A common application is to mount the Metal “C” bracket directly on the shades bracket. This is a great option for shades installed as ceiling mount with at least 1” clearance between the shade and the glass.
-
Page 9: Troubleshooting
BLISS Solar Panel Installation Guide 1. CONNECT WITH BUILT IN RECHARGEABLE BATTERY MOTOR Solar Panel USB charging cable Micro-USB Port 2. CONNECT WITH EXTERNAL RECHARGEABLE BATTERY PACK Solar Panel USB charging cable Micro-USB Port Troubleshooting Issues Possible Causes Solution Recharge with compatible charger and check connection Battery in motor is depleted and positioning of solar panel Insufficient charging from Solar Panel...
