Summary of Contents for COVER VALET PRO

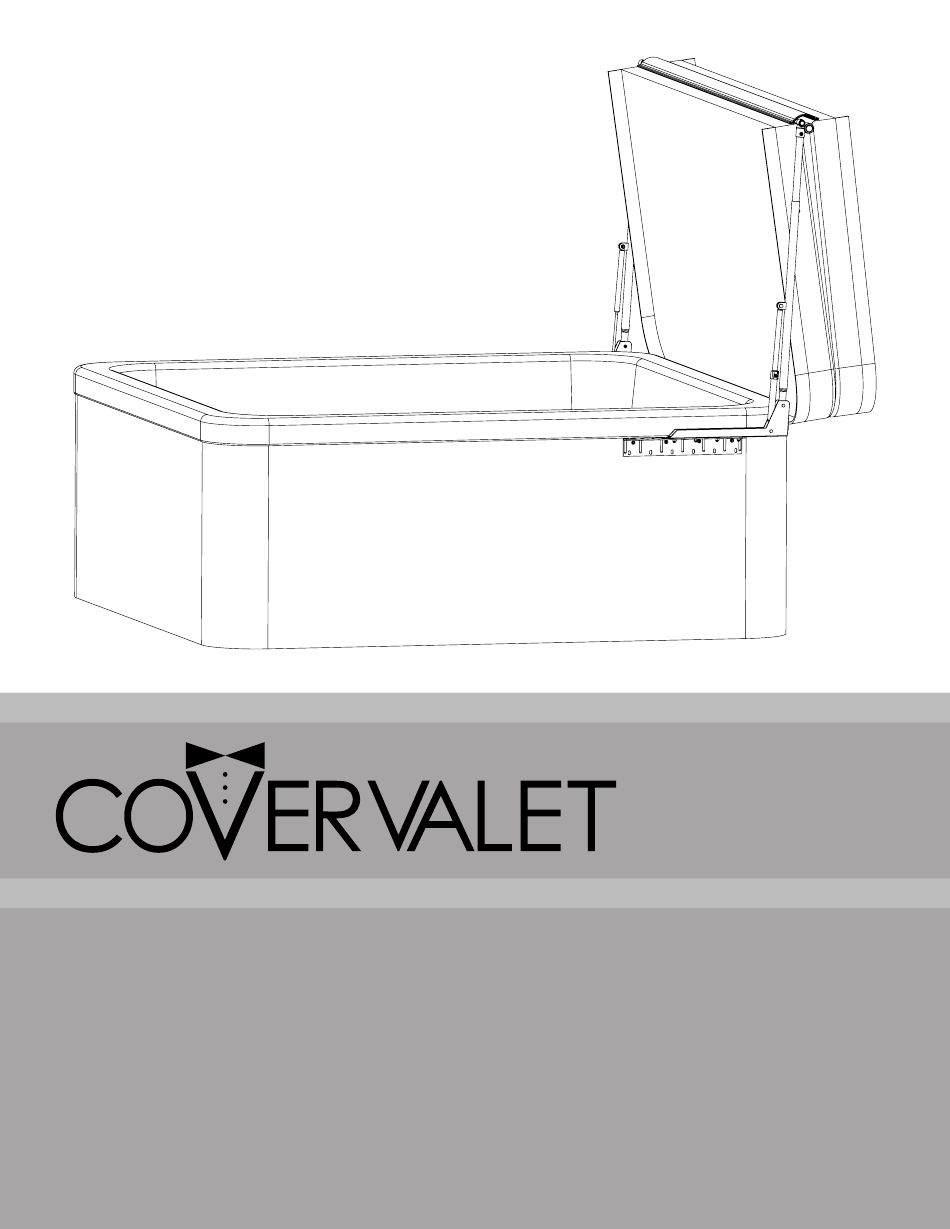

- Page 1 remium over ifter...
- Page 2 arts Channel Bracket (cvBB) Side Mount Bracket (cvAA) Locking Gas Shock (cvLS) Gas Shock (cvRS) Pivot Arm (cvCC) Extension Arm (cvDD) Connection Bar 1 (cvEE) Connection Bar 2 (cvFF) Connection Bar 3 (cvFF) Finger (cvEE)
- Page 3 ardware Medium Hex Bolt (cvC) Large Screw Cap (cvH) Small Hex Bolt (cvD) Medium Screw Cap (cvH) Long Hex Bolt (cvB) Small Screw Cap (cvH) Set Screw (cvK) Large Washer (cvW) Lag Screw (cvA) Small Washer (cvW) Self Tapping Plastic Support Large Lock Nuts (cvE) (cvPS) Small Lock Nuts (cvE)
- Page 4 ssembling rAcket Figure 1 Note: The Side Mount Bracket (cvAA) has a small side and a long side if your cover is extra wide mount the Channel Bracket (cvBB) to the long side. (See Figure 1) • Line up the slotted holes on the Channel Bracket (cvBB) to the Side Mount Bracket (cvAA) and bolt them together using at least...
-
Page 5: Mounting Bracket
ounting brAcket Figure 2 Figure 3 • Place the assembled bracket against the side of the spa. The Side Mount Bracket (cvAA) must be flush with the side of the spa. DO NOT allow the Side Mount Bracket (cvAA) to hang over the rounded edge. (See figure 2) •... - Page 6 nstAlling hocks Figure 4 The Locking Gas Shock MUST be installed on the side of the spa where you will operate the lift. • Place the piston end of the Locking Gas Shock (cvLS) into the Plastic Support (cvPS) • Fasten the Locking Gas Shock to the Channel Bracket (cvBB) using the Long Hex Bolt (cvB), the Screw Sleeve (cvSS), the Small Lock Nut (cvE), and 2 Small...
- Page 7 nstAlling ivot • Attach the Pivot Arm (cvCC) to the Channel Bracket (cvBB) using the Long Figure 5 Hex Bolt (cvC), Screw Sleeve (cvSS), the Small Lock Nut (cvE), and 2 Small Washers (cvW). • Ensure the Small Lock Nut is on the outside of the Channel Bracket (cvBB) and the Pivot Arm (cvCC) moves up and down easily.
- Page 8 ssembling onnection bAr Depending on the width of your spa this step will vary. Start by measuring the distance between the Channel Brackets(cvBB) mounted on the spa. 6½ nder • One Connection Bar 1 (cvEE) will slide into each side Connection Bar 2 (cvEE) •...
- Page 9 ssembling the over ifter • Insert the Finger (cvEE) into the mounting hole on Plastic Support(cvPS) and fasten it with Set Screw (cvK) as shown in fig. 7. Repeat this step for the other side of the spa, Be sure to mount the Finger (cvEE) facing the opposite direction Figure 7 •...
- Page 10 ssembling the over ifter *You will need at least one person to help hold the cover during this step Figure 10 • Slide the Extension Arm (cvDD) into the Pivot Arm (cvCC), making sure to center the spa cover over the spa. See Fig 10. •...
- Page 11 *You will need at least one person to help hold the cover during this step • Fold Back the spa cover onto itself then manually lift the Cover Valet and spa cover to the upright position. • With the cover upright attach the Regular...
- Page 12 EXCLUSIONS: A. This warranty does not cover damage incurred by the use of the Cover Valet and/or the spa cover, other than in accordance with the printed literature provided by California Home Spas, INC.
