SYDELL System B Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR #992
PIN TOGETHER THE THREE #950T(CURVED TUB PANELS) TOGETHER USING (2) 1/2" DROP PIN
NOTE: MAKE SURE THE TWO ENDS ARE AS CLOSE TO PARELL AS POSSIBLE.
ATTACH THE #943-8 IN BETWEEN THE FIRST AND SECOND TUB USING (2) 1/2 DROP PINS.
NOTE: SOLID LINE ON DRAWING INDICATES PLACEMENT OF #943-8.
ATTACH THE #944 TUB SUPPORTS TO THE CORRECT TUB PANELS AND ALSO TO THE #943-8.
NOTE: TUB SUPPORTS HAVE WELDED NUMBERS; MATCH THOSE TO THE DRAWING FOR CORRECT PLACEMENT.
ATTACH (2) #950'S (ONE TO THE #943-8 AND THE OTHER TO THE #950-T) USING (2) 1/2 DROP PINS..
NOTE: PICTURE FOR PLACEMENT
ATTACH THE #950'S TO THE #985 GUILOTINE GATE USING (2) 1/2 DROP PINS.
ATTACH (1) #950 AND (1) #955 TO THE #985 USING (2) 1/2" DROP PINS.
NEXT ATTACH THE (1) #950 AND (1) #955 TO THE #970 CORRAL SUPPORT USING (2) 1/2" DROP PINS.
ATTACH (1) #950 AND (1) #955 TO THE CORRAL SUPPORT USING (2) 1/2" DROP PINS.
NEXT ASSEMBLE THE 2-WAY SORT USING THE ENCLOSED INSTRUCTIONS AND ATTACH TO THE #950 AND #955.
SLIDE THE BLACK ANTI-BACK UP PLATE ACROSS ALLEY IN BETWEEN THE CORRAL SUPPORT AND PANELS
INSERT #986 ROPE SUPPORT INTO THE LAST TUB PANEL USING THE ENCLOSED INSTRUCTIONS.
NOTE: ROPE SUPPORT CAN BE USED ON ANY CORRAL PANEL.
NOTE: CLIPS ON TOP OF 950-T (CURVED PANELS) ARE ATTACHED FOR CLOCKWISE ROTATION OF #943-8. IF YOU
NEED TO USE THE SYSTEM IN A COUNTER CLOCKWISE SET-UP, REVERSE THE CLIPS AND #944 TUB SUPPORTS.
NOTE: ALL PANELS WITH SHEET METAL MUST HAVE THE SHEET METAL ON THE INSIDE OF THE RUN-WAY.

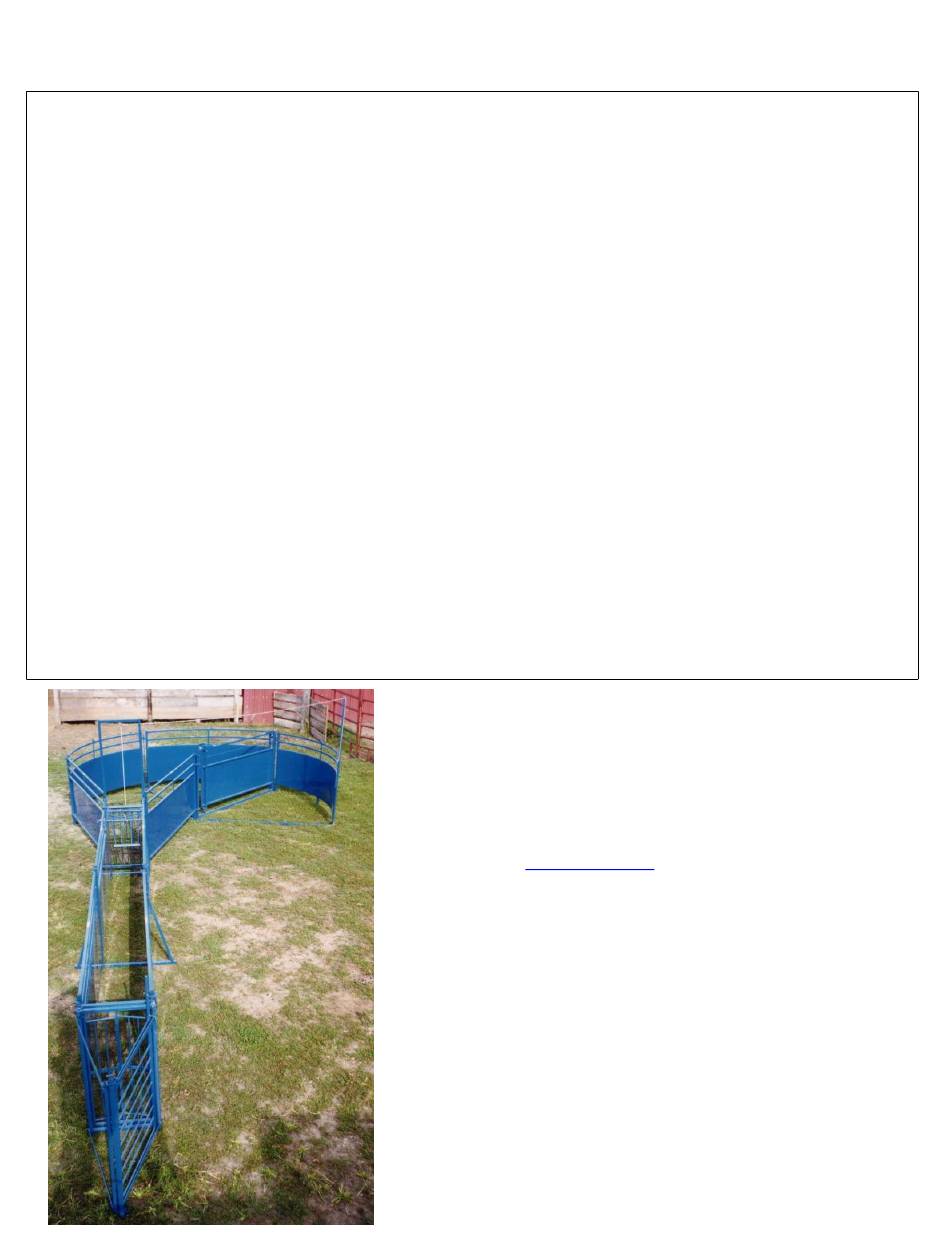

SYSTEM B
STEP #1
STEP #2
STEP #3
STEP 4
STEP 5
STEP 6
STEP 7
STEP 8
STEP 9
STEP 10
STEP 11
SYDELL INC.
46935 SD Hwy. 50
Burbank, SD 57010
(605) 624-4538
www.sydell.com
email: sydell@sydell.com
