MAKE SURE YOU HAVE RECEIVED ALL THE PARTS BEFORE ASSEMBLING.
1-NECK REACH
2-EXTRA LENGTH
1-WINCH
2-1/2" X 3 1/2" BOLTS
2-5/16" X 1 1/2" BOLTS
1-EYE BOLT
ASSEMBLY INSTRUCTIONS FOR
#755-WINCH STAND
1-DECK
1-BASE
2-WHEELS
3-3/8" X 1" BOLTS
4-5/16" X 2" BOLTS
4-5/16" X 3" BOLTS
2-5/16" x 4" BOLTS

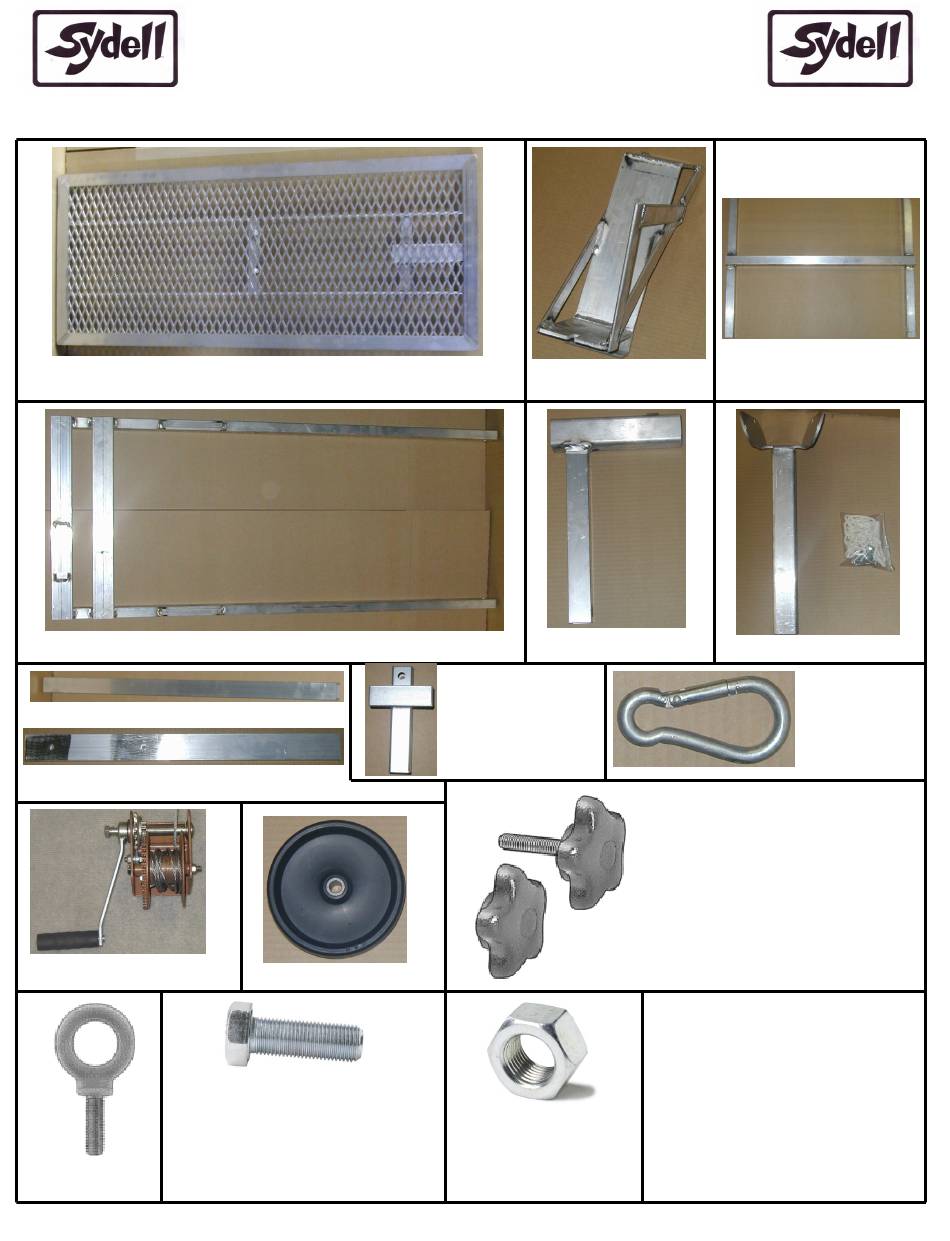

PARTS LIST
1-Z-BRACE
1-NECK SLEEVE
2-DECK
LEGS
4-3/8" REG. NUT
3-3/8" LOCK NUTS
2-1/2" LOCK NUTS
12-5/16" LOCK NUTS
2-LEGS
1-HEADPIECE
1-SNAP
HOOK
3-STAR KNOBS W/ SHORT
STUD
1-STAR KNOBS W/ LONG
STUD
WASHERS
2-1/2" WASHERS
4-5/16" WASHERS
Advertisement
Related Manuals for SYDELL 755-WINCH STAND
Summary of Contents for SYDELL 755-WINCH STAND
- Page 1 ASSEMBLY INSTRUCTIONS FOR #755-WINCH STAND PARTS LIST MAKE SURE YOU HAVE RECEIVED ALL THE PARTS BEFORE ASSEMBLING. 1-DECK 1-Z-BRACE 2-LEGS 1-BASE 1-NECK SLEEVE 1-HEADPIECE 1-SNAP 2-DECK 1-NECK REACH HOOK LEGS 2-EXTRA LENGTH 3-STAR KNOBS W/ SHORT STUD 1-STAR KNOBS W/ LONG...
- Page 2 ASSEMBLY INSTRUCTIONS FOR #755-WINCH STAND ASSEMBLY INSTUCTIONS STEP # 1-2 STEP #2 STEP #1 STEP #1A STEP #1 Attach the (1) front leg to the base using (2) 5 1/6” x 3” bolts, (2) 3/8” nut spacers, and (2) 5/16” lock nuts.
- Page 3 ASSEMBLY INSTRUCTIONS FOR #755-WINCH STAND ASSEMBLY INSTUCTIONS STEP # 3-10 (NOTE: #750 STAND PICTURED) STEP #6-8 STEP #3 STEP #4 STEP #9 STEP #10 STEP #5 STEP #3 Attach the deck to the (2) legs using (4) 5/16” x 2” bolts, (4) 5/16” washers, and (4) 5/16” lock nuts. (see Diagram B) NOTE: You will use the second hole from the back of the deck for the back legs.
- Page 4 ASSEMBLY INSTRUCTIONS FOR #755-WINCH STAND ASSEMBLY INSTUCTIONS STEP #5 Attach the eye bolt to the deck using a 3/8” nut. (See Diagram D) STEP #6 Slide the neck sleeve into the deck and tighten star knob. (See Diagram D) STEP #7 Slide the neck reach into the neck sleeve and tighten star knob.
