#780 HYDRAULIC STAND

ASSEMBLY INSTRUCTIONS

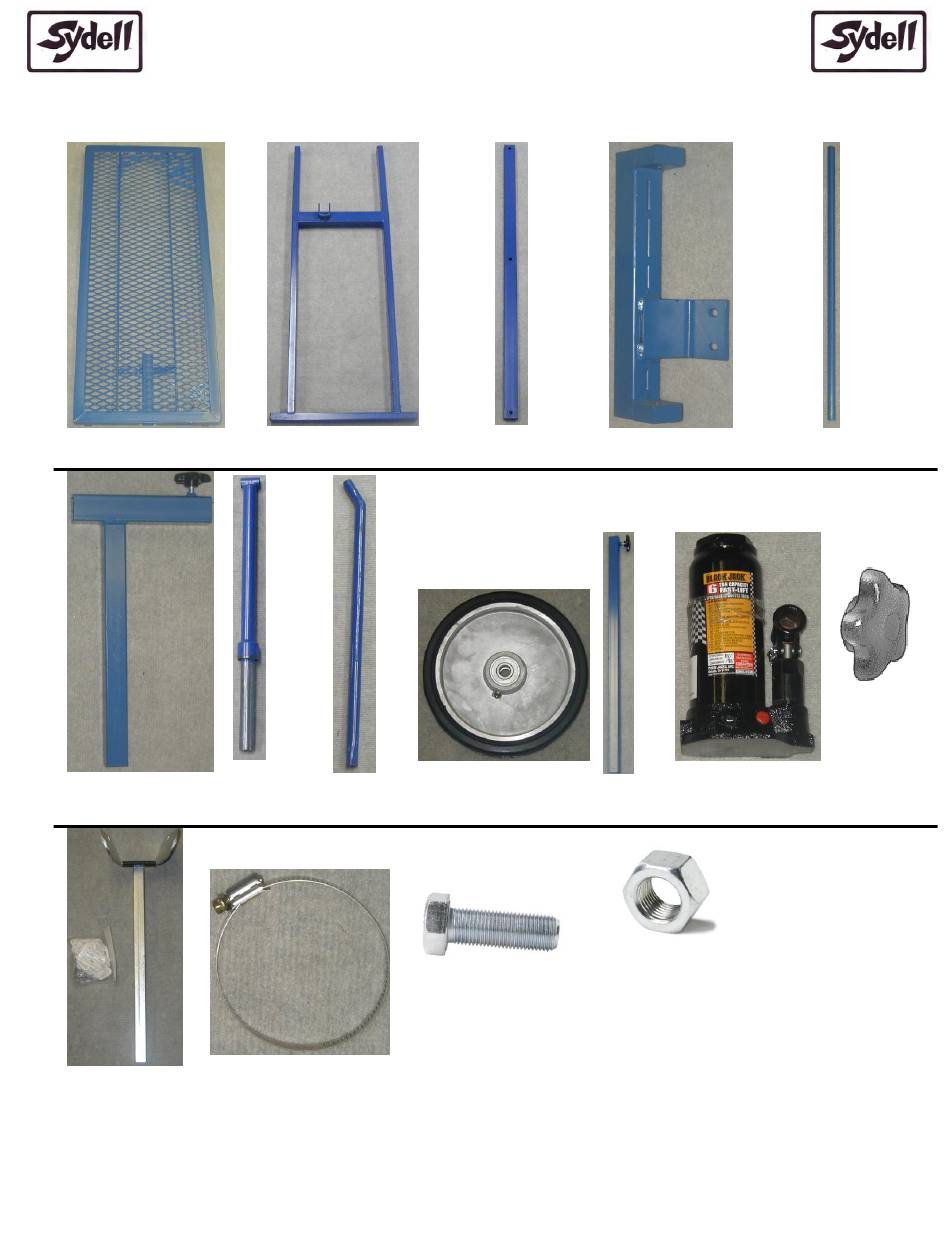

PARTS LIST

SET OUT ALL THE PARTS AND MAKE SURE YOU HAVE RECEIVED ALL THE PARTS BEFORE

ASSEMBLING

1-DECK

1-WELDED LEGS

2-LEGS

1-JACK PLATE

1-AXLE

1-NECK

1-JACK 1-JACK 2-WHEELS

1-#733 1-HYDRAULIC 3-STAR

SLEEVE

SLEEVE HANDLE

JACK

KNOBS

BOLTS

NUTS

WASHERS

2-1/2" X 5" GR8

6-1/2" LOCK NUTS

10-1/2" WASHERS

4-1/2" X 2 ¾" GR8 1-7/16" LOCK NUTS

1-7/16" X 2 ½"

1-#731-L

1-HOSE CLAMP

Table of Contents

Do you have a question about the 780 and is the answer not in the manual?

Page 1 #780 HYDRAULIC STAND ASSEMBLY INSTRUCTIONS PARTS LIST SET OUT ALL THE PARTS AND MAKE SURE YOU HAVE RECEIVED ALL THE PARTS BEFORE ASSEMBLING 1-DECK 1-WELDED LEGS 2-LEGS 1-JACK PLATE 1-AXLE 1-NECK 1-JACK 1-JACK 2-WHEELS 1-#733 1-HYDRAULIC 3-STAR SLEEVE SLEEVE HANDLE...
Page 2 #780-HYDRAULIC STAND ASSEMBLY INSTRUCTIONS STEPS 1-5 BACK STEP #2 STEP #1 STEP #3 STEP #5 STEP #4 STEP #1 Do not tighten any bolts until after Step #5 STEP #1 Attach the (2) legs to the welded legs using (2) ½” x 2 ¾” gold bolt, (2) ½” flat washers, and (2) ½”...
Page 3 #780-HYDRAULIC STAND ASSEMBLY INSTRUCTIONS STEP #4 Attach the jack sleeve to the welded legs using (1) 7/16” x 2 ½” bolt, and (1) 7/16” lock nut. Next lay the hydraulic jack into the jack plate and attach it using the hose clamp. (See Diagram D and E) STEP #5 Slide the axel through both of the legs.
Page 4 BOLT HEAD...
