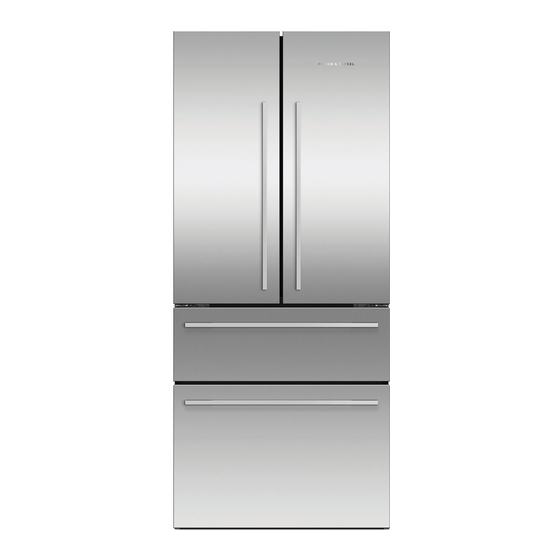

Fisher & Paykel ACTIVESMART RF523M U Series User Manual
Hide thumbs
Also See for ACTIVESMART RF523M U Series:
- User manual (39 pages) ,
- Installation manual (29 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fisher & Paykel ACTIVESMART RF523M U Series
Summary of Contents for Fisher & Paykel ACTIVESMART RF523M U Series
- Page 1 ACTIVESMART™ REFRIGERATOR CONTEMPORARY STYLE FRENCH DOOR ICE & WATER, AUTOMATIC ICE RF523GDU NON-ICE & WATER RF523GD SINGLE DOOR ICE & WATER, AUTOMATIC ICE RF523M*U NON-ICE & WATER RF523M USER GUIDE NZ AU UK IE SG*...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Before you begin Control panel External display Special features Using your appliance Temperature control Door alarms Alarm mute Key mute Key lock Sabbath mode Using your water dispenser Water filter (Ice & Water and Automatic Ice models only) Using your ice maker (Ice &... -
Page 5: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advise may result in death, electric shock, fire or injury to persons. • Read and follow the safety and warnings outlined in this user guide before operating this appliance. WARNING! Risk of fire/flammable material •... - Page 6 SAFETY AND WARNINGS Electrical Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. Do not plug in any other appliance at the same power point as your refrigerator or use extension cords or double adapters.
- Page 7 SAFETY AND WARNINGS Power failure – food safety Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. Follow the recommendations below if you discover food in your freezer has thawed: Ice crystals still visible – food may be refrozen but should be stored for a shorter period than recommended.
- Page 8 SAFETY AND WARNINGS Ice making Avoid contact with the moving parts of the ice maker ejector mechanism, and do not place your fingers on the automatic ice-making mechanism while the appliance is in operation. Do not use ice cubes that may have become discoloured, usually with a green- blue colour.
-
Page 9: Before You Begin
BEFORE YOU BEGIN Ensure the installer has completed the final checklist in the installation guide. Read this guide, taking special note of the safety and warnings section. Remove all packaging and dispose of it responsibly. Recycle items that you can. Refrigerator compartment Refrigerator features 1 Water filter... -
Page 10: Control Panel
CONTROL PANEL Illuminates to indicate that the keys on the control panel are locked. When the door is closed the display is automatically locked. Illuminates when the water filter needs replacing. IIluminates to indicate that is activated. SABBATH MODE Illuminates to indicate key press sounds are deactivated. Compartment activates control panel when pressed. -
Page 11: External Display
EXTERNAL DISPLAY Dispenser lock Locks/unlocks the water dispenser. When locked the LED button and above the button will illuminate. LED light Bottle Chill Icon will illuminate when is activated and flashes BOTTLE CHILL indicator when the beverage is ready. Filter change Icon will illuminate when water filter requires changing. -
Page 12: Special Features
SPECIAL FEATURES Fast Freeze boosts the freezing speed by dropping the freezer to its coldest temperature FAST FREEZE for 24 hours, which helps to retain freshness, texture and taste during the freezing process. Bottle Chill This function allows you to rapidly chill your beverages in the freezer for a set time of 15 minutes. -
Page 13: Using Your Appliance
USING YOUR APPLIANCE Temperature control Once you turn on your refrigerator for the first time, the cooling system will automatically cool all compartments to their set temperatures. This will take between 2 – 3 hours. The internal control panel enables you to change and control the temperature of all compartments accurately and independently. -
Page 14: Door Alarms
USING YOUR APPLIANCE Door alarms If the fresh food compartment door is left open, the alarm will beep after 90 seconds, if the freezer door is left open the alarm will beep after 60 seconds. If either of the doors remains open, subsequent beeps will sound every 30 seconds for 5 minutes. If either door remains open for 5 minutes or longer, an alarm will sound continuously and the interior compartment light(s) will turn off. -
Page 15: Key Lock
USING YOUR APPLIANCE Key lock allows you to disable the buttons on the internal control panel. This is useful KEY LOCK when cleaning your refrigerator. To activate or deactivate key lock Press together for 4 seconds. When is activated the icon on KEY LOCK the internal control panel will illuminate. -
Page 16: Using Your Water Dispenser
USING YOUR APPLIANCE Using your water dispenser Ensure you have followed the steps outlined in your installation guide prior to your first use of the water dispenser. Your water dispenser is designed for one-handed operation. To dispense water, gently press the dispensing pad with a glass or container. -
Page 17: Water Filter (Ice & Water And Automatic Ice Models Only)
USING YOUR APPLIANCE Water filter (Ice & Water and Automatic Ice models only) The water supplied to your refrigerator is filtered to remove impurities through a filter located internally at the top right corner of the refrigerator. Replace your filter cartridge every 6 months. -
Page 18: Manual Ice System (Selected Models Only)
USING YOUR APPLIANCE Manual ice system (selected models only) Ice tray An ice storage bin which sits inside the upper top freezer bin provides storage for and gives you access to clean, clear ice cubes. Attached to the ice storage bin is the ice scoop which provides hygienic access to ice. -
Page 19: Bottle Chill
USING YOUR APPLIANCE Bottle Chill To activate, press on the control panel. light will illuminate. BOTTLE CHILL icon will illuminate on the external display (Ice & Water and Automatic Ice models only). An alarm will sound after 15 minutes to remind you to remove your beverage. For non-Ice &... -
Page 20: Fast Freeze
USING YOUR APPLIANCE Fast Freeze To activate, press on the internal display. light will illuminate. FAST FREEZE To deactivate before the 24 hours has elapsed, press again. When is deactivated the light FAST FREEZE is off. For best results activate the function before it is required. Alternatively, activate it when placing food into the freezer. - Page 21 USING YOUR APPLIANCE Bottle holder Bottle holders can be used to store a variety of bottles. Unused bottle holders can be stacked up on top of one another so they do not take up unnecessary shelf space. Bottles are best stored with the neck of the beverage facing the front of the refrigerator. To position the bottle holder in your refrigerator, slot the back edge of the bottle holder onto the back trim of any shelf in the...
-
Page 22: Cleaning And Care
CLEANING AND CARE Exterior Clean all surfaces with liquid dishwashing detergent dissolved in warm water and a soft cloth. Rinse with clean water and dry with a clean, lint-free cloth. Do not use any abrasive, stainless steel cleaners or solvents on the door surface. Door gasket Clean the magnetic door gasket every three months with a toothbrush, and liquid detergent dissolved in warm water. - Page 23 CLEANING AND CARE Drip Tray Remove the drip tray from the dispenser panel. Pull the two halves of the tray apart. Clean with liquid detergent dissolved in water and a soft lint-free cloth. Rinse with clean water and dry with a clean, lint-free cloth.
- Page 24 CLEANING AND CARE Glass shelves – Refrigerator To remove Hold the shelf firmly and pull the shelf towards you. Lift the shelf up vertically. Slide the shelf towards you. Cantilever glass shelves – half-width and full-width To remove Hold the front and back edge of the shelf firmly.
- Page 25 CLEANING AND CARE Glass shelves – Freezer To remove Remove the bin above the glass shelf, refer to ‘Fixed bins and Freezer bins’. Push on the clips on both sides of the shelf. Lift the shelf up to remove from the supports. Support lugs Remove all shelving, follow the steps in section ‘Glass shelves- Refrigerator’.
- Page 26 CLEANING AND CARE Humidity control lid To remove Remove all shelving, follow the steps in section ‘Glass shelving’. Hold the lid firmly and lift the outside edge of the lid up vertically. Slide the lid towards the outside wall of the refrigerator until the lid unclips from the centre bracket.
- Page 27 CLEANING AND CARE How to replace Extend the runners out from the refrigerator. Place the bin on top of the runners. Push the bin down slowly until you feel it clip. Ice storage bin Clean your ice bin and discard any old ice in the bottom of the bin(s) regularly. Ensure that the ice scoop is placed in correct position in the bin, right hand side or at the front of the bin (model dependent).
-
Page 28: Foodcare
FOODCARE For best food care Store only high-quality, fresh food in your refrigerator. Store perishable foods in the refrigerator immediately after purchase. Storing at room temperature increases the rate of deterioration and can allow harmful microbial growth. Foods such as meat, poultry and seafood should be well wrapped or sealed in suitable packaging to prevent dehydration, colour deterioration, loss of flavour, and transfer of odour. -
Page 29: Moving Or Storing Your Appliance
MOVING OR STORING YOUR APPLIANCE If your refrigerator is turned off for any reason, wait 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting. Moving your refrigerator Turn off the refrigerator and unplug from the power point. -
Page 30: Activesmart™ Sounds
ACTIVESMART™ SOUNDS Normal appliance sounds Your refrigerator is designed with innovative ActiveSmart™ features that can produce sounds that may be different from your old refrigerator. Normal operational sounds include: Fan air flow sound. ActiveSmart™ refrigerators have fans which change speed depending on demand. -
Page 31: Troubleshooting
TROUBLESHOOTING If there is a problem with your refrigerator, please check the following points before contacting your local Fisher & Paykel trained and supported service technician or the Customer Care Centre. Product parts and accessories can be purchased through Fisher & Paykel Customer Care Centre or online at fisherpaykel.com (this service is available to selected markets only). - Page 32 TROUBLESHOOTING All models PROBLEM POSSIBLE CAUSES WHAT TO DO Unfamiliar Cabinet not stable Refer to your Installation guide or noises or level. ‘ActiveSmart™ sounds’. Freezer is defrosting. Water in the Condensation is A small amount of condensation is beneficial vegetable bins formed by the water for fruit and vegetable storage.
- Page 33 TROUBLESHOOTING Ice & Water and Automatic Ice models only PROBLEM POSSIBLE CAUSES WHAT TO DO Automatic ice Ice maker has not been Switch on ice maker. maker does turned on. not work Bin is in the wrong Place bin so scoop is on the left side. way or there is no bin Ice bin sits directly under ice maker on top in place.
- Page 34 TROUBLESHOOTING Ice & Water and Automatic Ice models only PROBLEM POSSIBLE CAUSES WHAT TO DO Filter warning Filter needs replacing. Replace filter as soon as possible. light is flashing Ice buildup Freezer door not Arrange items in freezer so door can inside freezer closing tightly.
- Page 35 TROUBLESHOOTING Ice & Water models only PROBLEM POSSIBLE CAUSES WHAT TO DO Water has poor Refrigerator Dispense 4L of water so fresh water supply taste/odour not used for an is replenished. extended period. New filter installed Water Water supply turned Turn water on.
-
Page 36: Manufacturer's Warranty
MANUFACTURER’S WARRANTY For details of your Manufacturer’s Warranty and contacts for servicing, please refer to your separate ‘Service & Warranty’ book provided with your refrigerator. This product has been designed for use in a normal domestic (residential environment). This product is not designed for any commercial use. Any commercial use by the customer will affect this products Manufacturer’s Warranty. -
Page 37: European Directive 2012/19/Eu On Waste Electrical And Electronic Equipment (Weee)
EUROPEAN DIRECTIVE 2012/19/EU ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) GB This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate handling of this product. - Page 39 ACTIVESMART™ REFRIGERATOR CONTEMPORARY STYLE FRENCH DOOR ICE & WATER, AUTOMATIC ICE RF523GDU NON-ICE & WATER RF523GD SINGLE DOOR ICE & WATER, AUTOMATIC ICE RF523M*U NON-ICE & WATER RF523M INSTALLATION GUIDE NZ AU UK IE SG...
- Page 41 CONTENTS Safety and warnings ActiveSmart™ Refrigerator Unpacking and moving your appliance Before installation Supplied parts Product dimensions – RF523G Cabinetry dimensions – RF523G Product dimensions – RF523M Cabinetry dimensions – RF523M Water connection Flushing the water filter Positioning your refrigerator Complete installation Final checklist Registration...
-
Page 43: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to follow this advise may result in death, electric shock, fire or injury to persons. • Read and follow the safety and warnings outlined in this guide before operating this appliance. WARNING! Risk of fire/flammable material This refrigerator contains flammable refrigerant isobutane (R600a). - Page 44 SAFETY AND WARNINGS Electrical This appliance must be installed in accordance with the installation instructions before use. To allow disconnection of the appliance from the supply after installation, incorporate a switch in the fixed wiring in accordance with the wiring rules. Never unplug your refrigerator by pulling on the power cord.
-
Page 45: Activesmart™ Refrigerator
ACTIVESMART™ REFRIGERATOR French Door Fridge, 790mm, Fridge, 790mm, 523L, 523L, Ice & Water Ice & Water Contemporary Contemporary RF523G RF523M French Door Fridge, 790mm, Fridge, 790mm, 523L, 523L, Non-Ice & Water Non-Ice & Water Contemporary Contemporary RF523G RF523M... -
Page 46: Unpacking And Moving Your Appliance
UNPACKING AND MOVING YOUR APPLIANCE Check that your appliance is the correct model as per your order. Follow the steps below to move your appliance to the install location. Be careful when tilting the appliance forward/backward. Tape the door shut to prevent opening while moving the appliance. - Page 47 UNPACKING AND MOVING YOUR APPLIANCE Tilt backward to load appliance onto hand truck and push to install location. Model drawings may differ from your appliance.
-
Page 48: Before Installation
BEFORE INSTALLATION Please follow the installation steps below to ensure your appliance operates correctly. Before installation Power Install your appliance where the plug is easily accessible. Connect your refrigerator to a separate power point. Avoid sharing the power point with other appliances. -
Page 49: Supplied Parts
SUPPLIED PARTS MISCELLANEOUS ITEMS PACK ACTIVESMART™ REFRIGERATOR ICE & WATER, AUTOMATIC ICE AND NON-ICE & WATER MODELS RF523G & RF523M models USER GUIDE NZ AU UK User/Installation guide (1) WATER FILTER KIT Quick fitting (1) Tubing 3.5m (1) Pressure limiting valve PLV (1) Tubing 0.5m (1) Tap adaptor &... -
Page 50: Product Dimensions - Rf523G
PRODUCT DIMENSIONS – RF523G PLAN FRONT PROFILE... - Page 51 PRODUCT DIMENSIONS – RF523G PRODUCT DIMENSIONS A Overall height of product 1790 B Overall width of product C Overall depth of product (excludes handle) D Depth with door open – from rear of fridge – 90° rotation 1026 E Depth with door open – from flush with door – 90° rotation F Depth of open drawer –...
-
Page 52: Cabinetry Dimensions - Rf523G
CABINETRY DIMENSIONS – RF523G CUTOUT Flush with refrigerator chassis Flush with refrigerator door – full door rotation Flush with refrigerator door – 90° door rotation CABINETRY DIMENSIONS (incl. minimum air clearances) A Inside height of cavity 1810 Flush with refrigerator chassis – full door rotation B Inside width C Inside depth Flush with refrigerator door –... - Page 53 CABINETRY DIMENSIONS – RF523G CLEARANCES Flush with refrigerator chassis Flush with refrigerator door – full door rotation Flush with refrigerator door – 90° door rotation MINIMUM CLEARANCE DIMENSIONS A Side clearance B Side clearance – hinge side flush with door – full rotation C Side clearance –...
-
Page 54: Product Dimensions - Rf523M
PRODUCT DIMENSIONS – RF523M PLAN FRONT PROFILE... - Page 55 PRODUCT DIMENSIONS – RF523M PRODUCT DIMENSIONS A Overall height of product 1790 B Overall width of product C Overall depth of product (excludes handle) D Depth with door open – from rear of fridge – 90° rotation 1426 E Depth with door open – from flush with door – 90° rotation F Depth of open drawer –...
-
Page 56: Cabinetry Dimensions - Rf523M
CABINETRY DIMENSIONS – RF523M CUTOUT Flush with refrigerator chassis Flush with refrigerator door – full door rotation Flush with refrigerator door – 90° door rotation CABINETRY DIMENSIONS (incl. minimum air clearances) A Inside height of cavity 1810 Flush with refrigerator chassis – full door rotation B Inside width C Inside depth Flush with refrigerator door –... - Page 57 CABINETRY DIMENSIONS – RF523M CLEARANCES Flush with refrigerator chassis Flush with refrigerator door – full door rotation Flush with refrigerator door – 90° door rotation MINIMUM CLEARANCE DIMENSIONS A Side clearance B Side clearance – hinge side flush with door – full rotation C Side clearance –...
-
Page 58: Water Connection
WATER CONNECTION Ensure the refrigerator is NOT plugged into a power supply. Locate the isolation tap for cold water connection. (Tee and tap fitting not supplied). Locate the water fitting kit to complete water connection installation. Uncoil tubing from the back of the refrigerator and connect the quick fitting. - Page 59 WATER CONNECTION Insert the short tubing into the water tap adaptor, push tubing in at least 16mm before reaching the stop. Pull gently on the short tubing to ensure it is locked in place. If the short tubing is already attached to the tap adaptor, move to step 6.
-
Page 60: Flushing The Water Filter
FLUSHING THE WATER FILTER ICE & WATER MODELS 1 Press the water dispenser pad to dispense 4L of water. Wait for 4 minutes before dispensing again. 2 Dispense 4L of water and then wait for another 4 minutes. There may be carbon residue dispensed together with water. - Page 61 FLUSHING THE WATER FILTER AUTOMATIC ICE MODELS To turn your ice maker on press The light above the button will illuminate. Press the together for 4 seconds then close the doors. The ice tray will empty the water into the bin below. The ice tray will only empty after the doors are closed.
-
Page 62: Positioning Your Refrigerator
POSITIONING YOUR REFRIGERATOR Your Fisher & Paykel ActiveSmart™ refrigerator is fitted with front and rear rollers to allow you to easily move your refrigerator forward and backward. Avoid moving your refrigerator sideways to prevent damaging the rollers or the floor covering surface. Your refrigerator will arrive with the front feet wound up to assist with moving the product into its final location. - Page 63 POSITIONING YOUR REFRIGERATOR Align refrigerator with cabinetry – Single door models only Align the sides of the refrigerator with the cabinetry by adjusting the hinge side front foot. Adjust the handle side foot until it touches the floor and takes a small amount of weight.
- Page 64 POSITIONING YOUR REFRIGERATOR What to do if your product is unstable Gently push the refrigerator back until the rear rollers contact the floor. Measure the gap under the front foot, which has come off the floor. Obtain some solid packing material (hardwood, plastic, etc) which fits firmly into the gap under the foot.
-
Page 65: Complete Installation
COMPLETE INSTALLATION Before placing food in the fresh food or freezer compartments Remove all internal packaging. Ensure that all transit clips are removed from the refrigerator. These are small rubber stoppers located at the back of the shelves. Clean the inside of the appliance with a mix of warm water and a small amount of liquid detergent. -
Page 66: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Ensure that: … Check all parts are installed. … Ensure the appliance is level. … Ensure all internal and external packaging is removed from the appliance before use. … Ensure the water filter is installed and the has been flushed. Complete and keep for safe reference: Model Serial No. - Page 68 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
