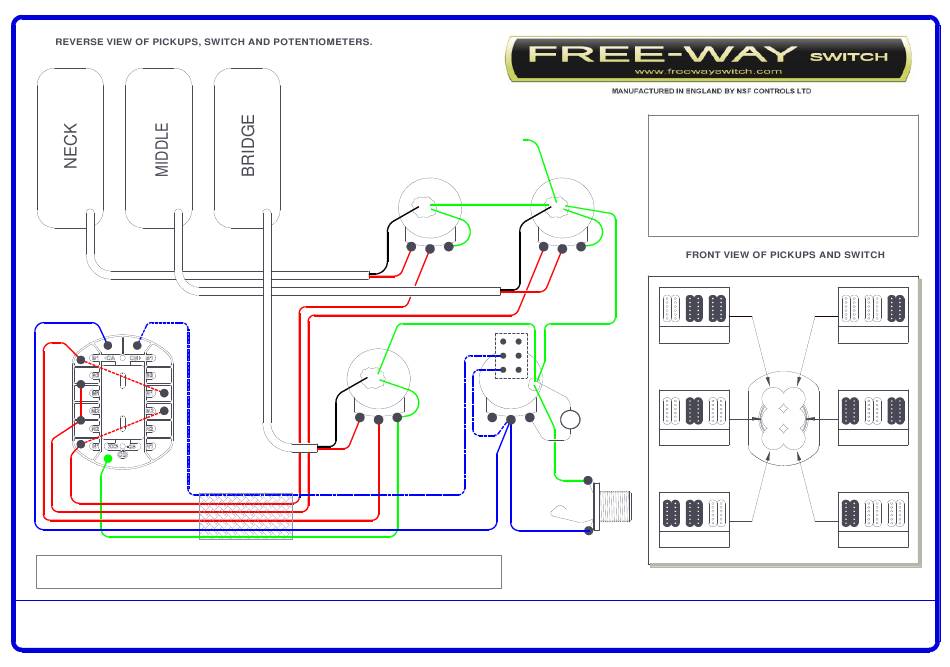

Free-Way Switch 3X3-03 Schematic Diagrams

Note Vertical Orientation!
Any solder points
shown in between
pads are meant to
(B)
abridge both pads
(M)
(N)
Note: Neck & Bridge Vol controls are 'master' controls in this diagram, so that the Neck Vol mutes the entire output in positions 1,2 & 4
and the Bridge Vol mutes the entire output in position 2,3 & 6. The Middle Vol blends in the Middle Pickup in positions 4, 5 & 6.
If more scope for individual pickup blending is preferred, then reverse hot and wiper connections at B Vol and N Vol pots.

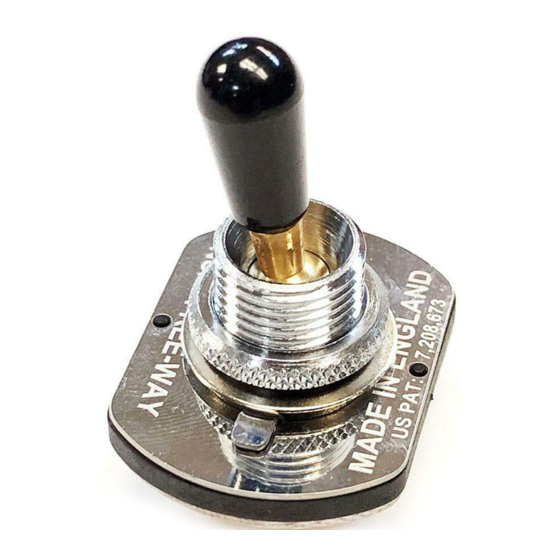

3X3-03 Free-Way Switch
Model No:-
Vol
(Neck)
Ground Hot
Ground Hot
Multi-Core
Screened Cable
Grd To Bridge
Vol
(Mid)
Ground
Hot
Optional
DPDT
Tone
Switch
Vol
(Master)
(Bridge)
c
(Sleeve)
(Tip)
Notes:-
Optional Push/Pull Pot affects position 5 only: push in for middle
pickup only, pull out for Neck+Middle+Bridge pickups. Omit push/
pull pot and dotted wires for middle pickup only in position 5.
Use multi-core screened cable between switch and controls on
LP-style guitars.
For Humbucker guitars, middle PU is normally reverse phase.
The pickup colour coding shown in this diagram does not represent
any particular pickup manufacturer - please follow designations.
Neck & Middle
4 1
5 2
Middle
6 3
(or option for 3 x pu.s)
Bridge & Middle
Scheme No 002 : Last Updated June 2013
HHH 3V/1T
Neck
Bridge+Neck
Bridge
