Summary of Contents for Free-Way Switch 3X3-08

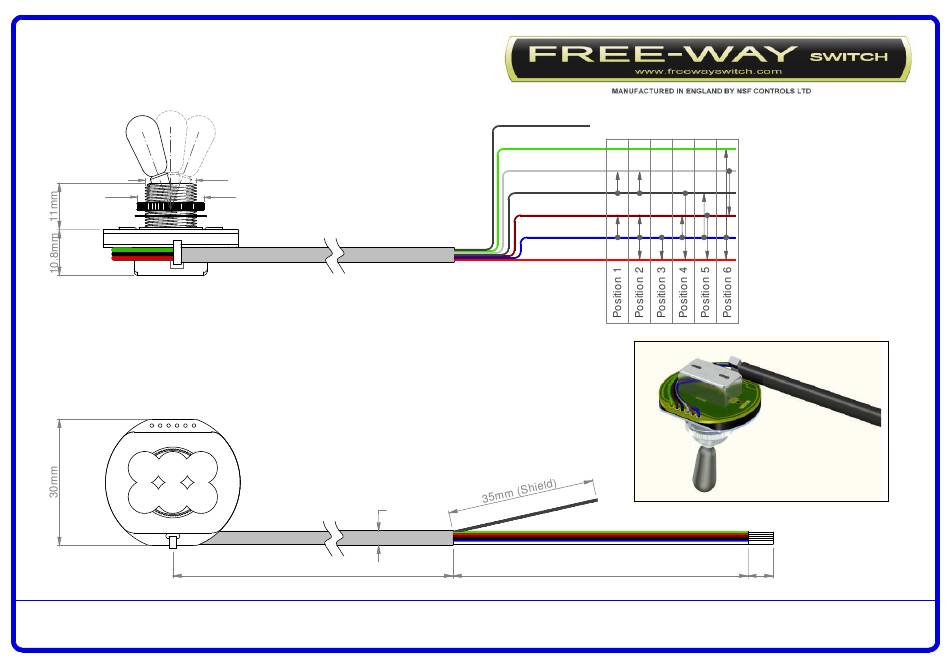

- Page 1 © Free-Way 2021 - Last Updated Nov 2021 Shield Wire (unconnected) Green Wire Neck Grd 2 White Wire Ground 12mm Black Wire Neck Grd 1 16mm Brown Wire Neck Hot Output Blue Wire Red Wire Bridge Hot 4.3mm 257mm 70mm 3X3-08 Free-Way Switch Schematic Model No:-...
- Page 2 Parallel / In Phase NORTH Start wire NORTH Finish wire SOUTH Finish wire SOUTH Start wire Parallel / Out Phase Bridge Shield / Screen Scheme No 346 : Last Updated Oct 2021 3X3-08 Free-Way Switch HH Standard 1V/1T Model No:-...
- Page 3 Parallel / In Phase NORTH Start wire NORTH Finish wire SOUTH Finish wire SOUTH Start wire Parallel / Out Phase Bridge Shield / Screen Scheme No 347 : Last Updated Oct 2021 3X3-08 Free-Way Switch HH Standard + Coil Split 1V/1T Model No:-...
- Page 4 In Series / Out Phase NORTH Start wire NORTH Finish wire SOUTH Finish wire SOUTH Start wire Bridge In Series / In Phase Shield / Screen Scheme No 351: Last Updated Oct 2021 3X3-08 Free-Way Switch HH Rotated 1V/1T Model No:-...
- Page 5 In Series / Out Phase NORTH Start wire NORTH Finish wire SOUTH Finish wire SOUTH Start wire Bridge In Series / In Phase Shield / Screen Scheme No 352: Last Updated Oct 2021 3X3-08 Free-Way Switch HH Rotated + Coil Split 1V/1T Model No:-...
- Page 6 - please follow designations. Grd To Bridge In Series / In Phase Neck 0.01uF In Series / Out Phase Parallel / In Phase Parallel / Out Phase Bridge Scheme No 353: Last Updated Oct 2021 3X3-08 Free-Way Switch SS Standard 1V/1T Model No:-...
