Summary of Contents for NJ PHILLIPS Powermaster

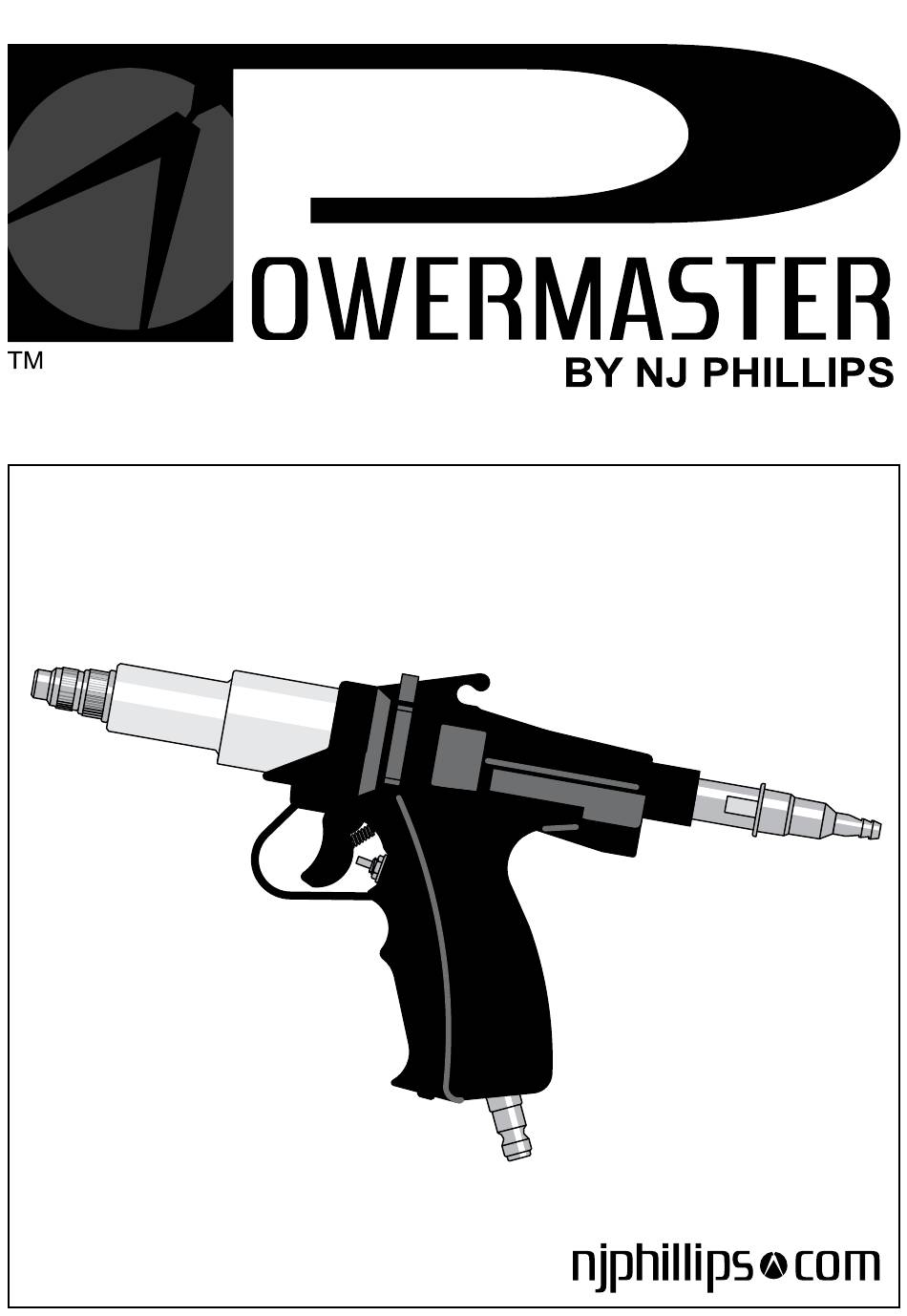

- Page 1 15ml Variable Dose Powered Injector...
-
Page 2: Important Safety Warning, Introduction & Warning Statements
All products produced by NJ Phillips Pty Limited, are identified All information contained in this handbook relating to the use by a unique batch number. This identification number is affixed... -
Page 3: Table Of Contents
Contents PAGE NO. Important Safety Warning, Introduction & Warning Statements SECTION 1: INJECTOR PARTS IDENTIFICATION AND SCHEMATIC DIAGRAMS Schematic Diagram No 1: NJ Phillips15ml Powered Injector. SECTION 2: SETTING UP THE INJECTOR READY FOR USE Schematic Diagram No 2: Handpiece Component Breakdown. 1. -
Page 4: Section 1: Injector Parts Identification And Schematic Diagrams Schematic Diagram No 1: Nj Phillips15Ml Powered Injector
2. 10 metre Air Line 3. 10 metre Gas Line 4. Air Regulator Assembly 5. Gas Regulator Assembly 6. NJ Phillips Lubricant SECTION 2: SETTING UP THE INJECTOR READY FOR USE Schematic Diagram No 2: Handpiece Component Breakdown. 17. DOSE ADJUSTOR - THREADED 18. -
Page 5: Handpiece Injectable Products
You must not repair, alter or modify the product, other Turn the dose adjustor in an anticlockwise direction to than those carried out by NJ Phillips Pty Limited or it’s decrease dose, and a clockwise direction to increase authorised agent, and in particular interference with or... -
Page 6: Schematic Diagram No 3: Injector Setup For Operation By Lp-Gas Portable Or Processor
Schematic Diagram No 3: Injector setup for operation by LP-Gas Portable or Processor TO INJECTABLE CHEMICAL. VIA FEED TUBE TO INJECTABLE CHEMICAL. VIA FEED TUBE TO GAS CYLINDER PORTABLE OR PROCESSOR GAS LINE TO GAS CYLINDER PORTABLE OR PROCESSOR GAS LINE TO INJECTABLE CHEMICAL. -
Page 7: Injector Operated By Compressed Air
3. APPLICATOR OPERATED BY COMPRESSED AIR The injector is now set up ready for the vaccine bottle to Refer Schematic Diagram No 4 page 6: Applicator setup be connected to the appropriate feed tube and the feed for operation by compressed air. tube to the injector. -
Page 8: Section 3: Care And Maintenance Of Injector
Wipe injector, feed tube and springs dry, disconnect the feed tube from injector and place aside. Using the NJ Phillips Lubricant supplied in the tool box, immerse the injector inlet fitting into a small clean container of Lubricant and draw a small quantity of Lubricant into the cylinder by depressing the trigger several times. -
Page 9: Section 4: Trouble Shooting Guide
Piston seal rings are dry or Remove cylinder from handpiece and lubricate the have not been lubricated piston seal rings with NJ Phillips Lubricant. Spitting of product from Foreign matter lodged in the Remove needle mount and delivery valve needle or air being drawn delivery valve and assembly. -
Page 10: Section 5: Warranty And Service
This warranty entitles you to repairs or replacement (at no charge) of any parts recommended by your stockist/local distributor or NJ Phillips Pty Limited. of the NJ Phillips 15ml powered injector (“Product”) found to be defective in • repairs, alterations or modifications carried out other than by the Company materials or workmanship.
