Manual for OS-E1UF Cable Gland
Manual for OS-E1UF Cable Gland
1. Application
OS-E1UF Cable gland is for use with all type of armoured cable for Zone 1 & Zone 2 in hazardous area.
2. Standard Applicable
ATEX
EN 60079-0:2012+A11:2013
EN 60079-1:2014
EN 60079-7:2015
EN 60079-15:2010
EN 60079-31:2014
3. Certificate No. & Special conditon 'X'
A. IECEx : IECEx PRE 17.0063X
B. ATEX : 17 ATEX 11456X
C. Special condition 'X' :
1) Ambient temperature : -60℃ ~ +110℃ (IEC 60079-0 5.1.1)
4. Technical data
A. Process control system : ISO 9001 : 2008, ISO 14001 - 2004 , RoHs
B. Certification : IECEx, ATEX
C. Marking : II2G Ex db IIC Gb, Ex eb IIC Gb, II2D Ex tb IIIC Db
D. Suitable for use in Zone 1, Zone 2, Zone 21 & Zone 22
E. Suitable for use in gas Groups IIA, IIB and IIC, dust Groups IIIA, IIIB and IIIC
F. Service Temperature: -60C˚~+110C˚
G. Ingress protection: IP66/68 (IEC 60529 / EN 60529)
H. Accessories: Lock nut, Sealing Washer, shroud, serrated washer(tooth/teeth washer) and earth tag
I. Materials: Brass C3604 BE-F
J. Threads engaged ≥5 (IEC 60079-1 5.3 Threaded joints)

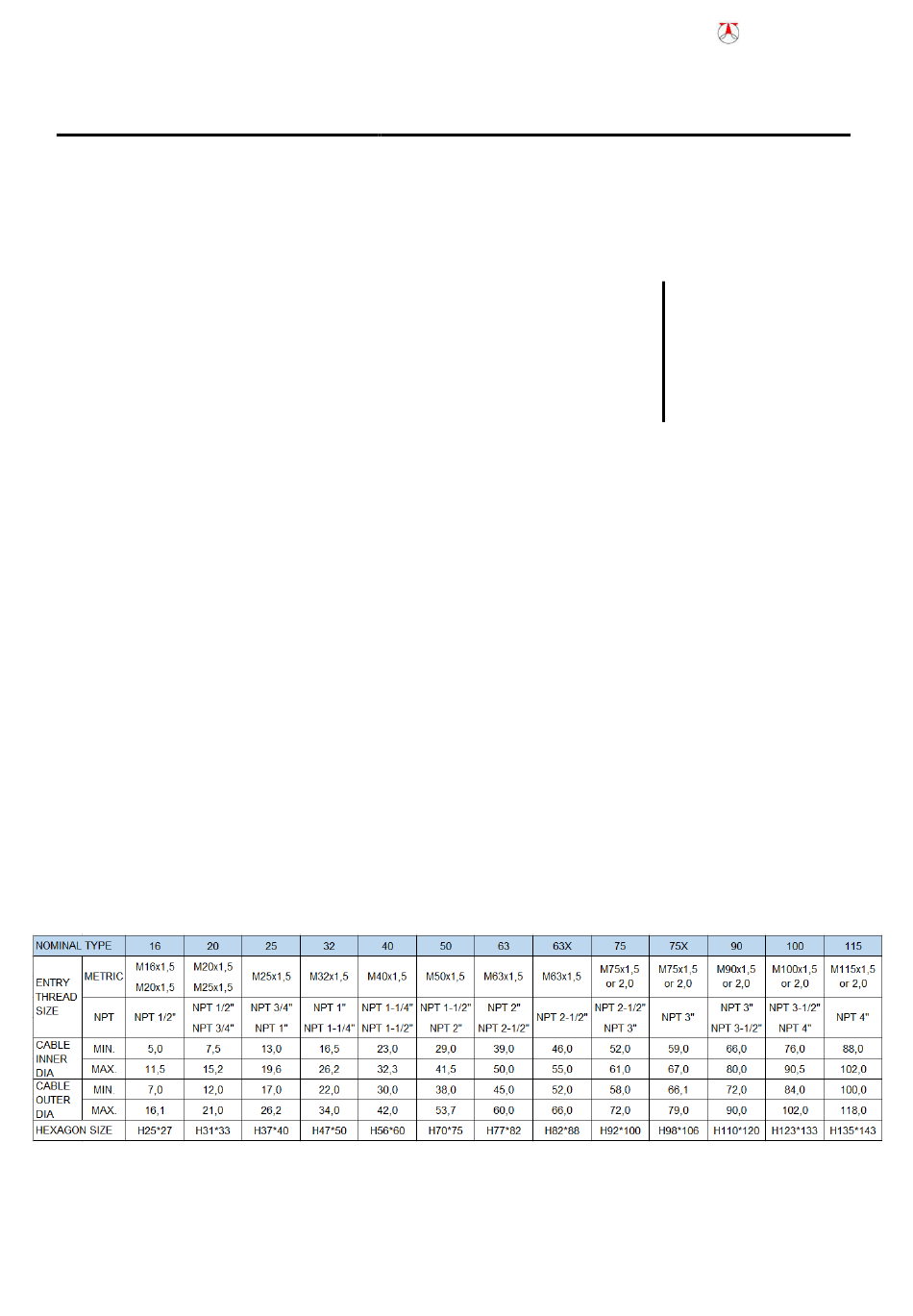

5. Cable Specification for OS-E1UF
OSCG Co., Ltd. Tel : +82 51 305 3910
50107566000_BA OS-E1UF-2018/11
Address: #1242, Nakdong-Daero, Sasang-Gu, Busan, Korea
IECEx
IEC 60079-0:2011 Ed. 6
IEC 60079-1:2014 Ed. 7
IEC 60079-7:2015 Ed. 5
IEC 60079-15:2010 Ed. 4
IEC 60079-31:2013 Ed. 2
/ Brass C3604 BE-F with Nickel Plated / STS304 / ANSI 316 /
(CuZn38Pb4)
Fax : +82 51 305 3933 Website: www.oscg.net
OSCG Co., Ltd.
OS-E1UF MANUAL 1 / 2
