OSCG OSER-Z Manual

Manual for OSER-Z Cable Gland

1. Application

OSER-Z Cable is for Any type of armoured cable gland(touch) for earthing for Zone 1 & Zone 2 in hazardous area.

2. Standard Applicable

ATEX
EN 60079-0:2012+A11:2013
EN 60079-7:2015
EN 60079-15:2010
EN 60079-31:2014
3. Certificate No. & Special conditon 'X'
A. IECEx : IECEx PRE 17.0060X
B. ATEX : Presafe 17 ATEX 11324X
C. CU-TR : RU C-KR.AA87.B.01105
D. Special condition 'X' : Ambient temperature(-60℃ ~ +130℃) - IEC 60079-0 5.1.1
E. Compliance Standard : EN/IEC 60079-0/7/31, EN/IEC 61241-0/1, EN/IEC 60529

4. Technical data

A. Process control system : ISO 9001 : 2008, ISO 14001 - 2004 , RoHs
B. Certification : IECEx, ATEX, CU-TR
C. Marking
D. Suitable for use in Zone 1, Zone 2, Zone 21 & Zone 22
E. Suitable for use in gas Groups ⅡA, ⅡB and ⅡC, dust Groups ⅢA, ⅢB and ⅢC
F. Service Temperature: -60C˚ ~ +130C˚
G. Ingress protection: IP66/68-20bar/2H (IEC 60529 / EN 60529)
H. Accessories : Sealing Washer
I. Materials: Brass C3604 BE-F(CuZn38Pb4) / Brass C3604 BE-F with Nickel Plated

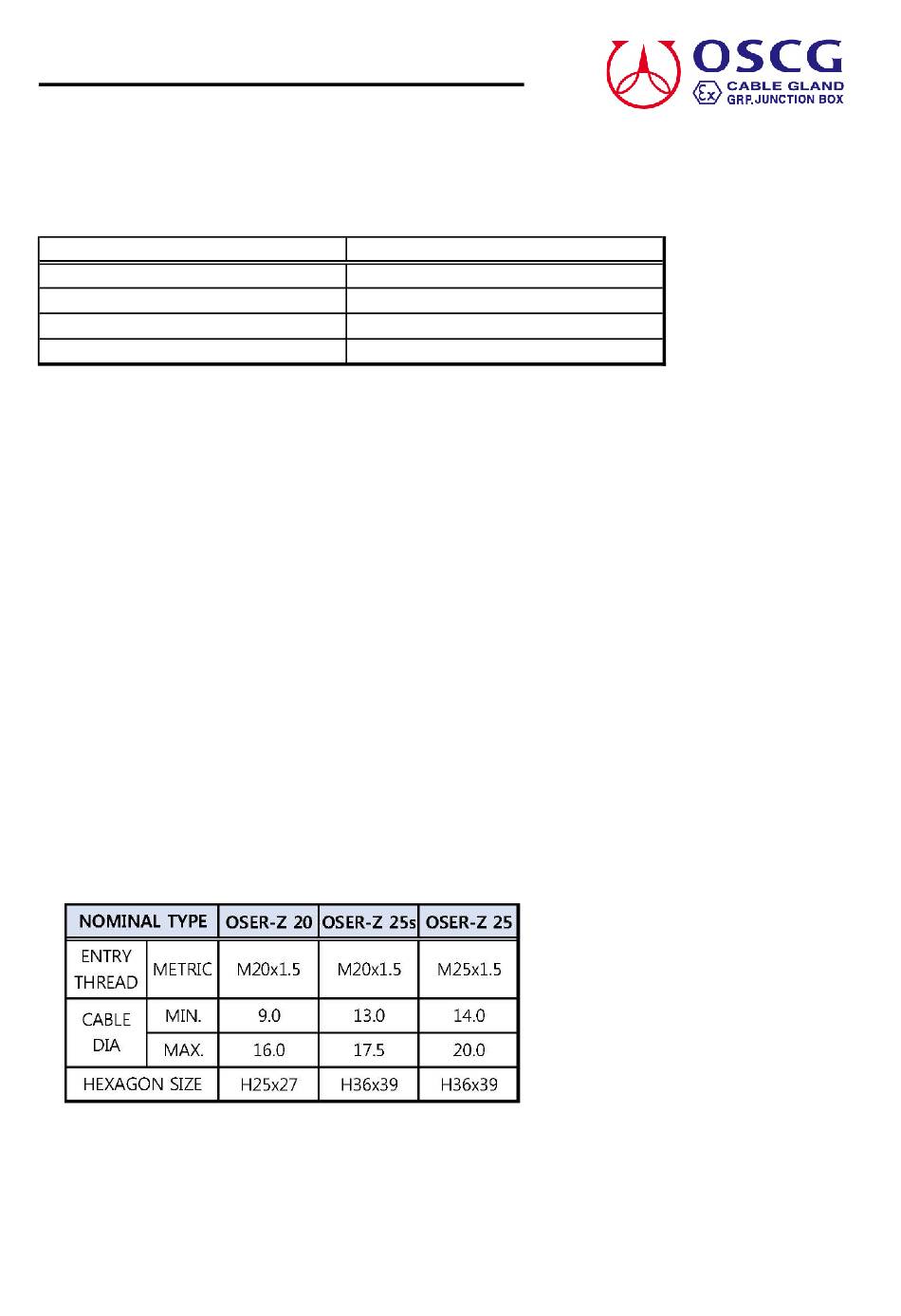

5. Cable Specification for OSER-Z

OSCG Co., Ltd.
Address : #1242, Nakdongdaero, Sasang-Gu, Busan, Korea
IECEx
IEC 60079-0:2011 Ed. 6
IEC 60079-7:2015 Ed. 5
IEC 60079-15:2010 Ed. 4
IEC 60079-31:2013 Ed. 2
Tel : +82 51 305 3910 Fax : +82 51 305 3933 Website: www.oscg.net
1 / 2
