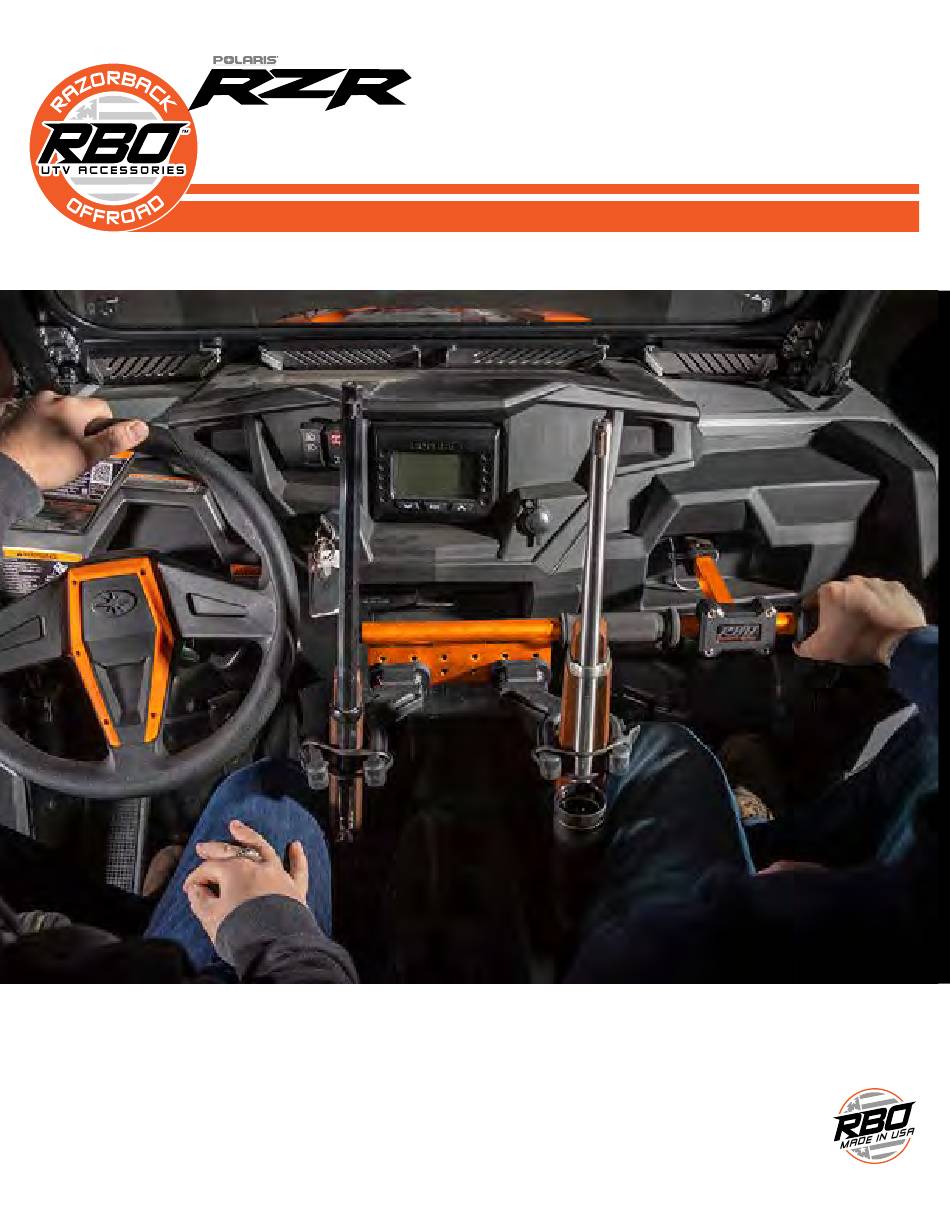

- Page 1 ULTIMATE GUN RACK/ GRAB HANDLE/LUG WRENCH P R O D U C T M A N U A L P a r t N u m b e r : R B O 1 0 0 0...
- Page 2 PRODUCT MANUAL INFORMATION INTRODUCTION Everyone here at Razorback Offroad™ would like to thank you for your recent purchase of one of our products, and tell you congratulations! Our passion is to provide our customers with the best products and parts money can buy! Without support from valued customers such as yourselves, our business, as well as the people who work for it, wouldn’t survive. We hope you find our products useful and get the most out of every experience with them. Thank you! ATTENTION This manual should be read carefully. It contains important information that needs to be fully understood and followed in order to ensure that the Razorback Offroad products discussed in this manual are used properly to ensure the safety of all persons (e.g. operators, customers, bystanders). R A Z O R B A C K O F F R O A D . C O M...
- Page 3 MODIFICATION DO NOT modify or tamper with any RBO product. Doing so will void any applicable warranty and may result in serious injury or death. • Warranties will be voided if any RBO Product is modified or tampered with! INSPECTION...
-
Page 4: Terms And Conditions
In order for a product to qualify for the 100% money back guarantee, claim must be fi led must be fi led within 30 days of purchase date. Once the product is returned to RBO, RBO will send a check to the user to cover the initial product cost less freight charges if any. - Page 5 Notice to Owner or User It is the responsibility of the Owner or User to go to our Product Registration page to register your RBO product. Failure to register product will void any expressed or implied warranties of RBO products. Filling out your online warranty registration is very important in the event that RBO should ever need to contact you concerning the compliance of your registered equipment with any applicable safety standards, the information you have provided on the warranty registration transfer below will ensure your immediate notifi...
- Page 6 We also wanted a nicer looking RZR Passenger Grab handle that had comfortable grips for our passenger. The result is our RBO Ultimate Gun Rack. We designed our Ultimate Gun Rack with Lots of adjustability so you can change the gun mount locations to fit your specific rifle or shotgun.
-
Page 7: Tools Required For Installation
INCLUDED MOUNTING HARDWARE TOOLS REQUIRED FOR INSTALLATION • (4) 1/4” - 20 x 1-1/4” S.S. Socket Cap Screw • 3/16” Allen Wrench (INCLUDED) • (8) 1/4” S.S. Nylock Nuts • #2 PHILLIPS SCREWDRIVER • (4) 1/4” Flat Washer • 7/16” END WRENCH •... -
Page 8: Installation Instructions

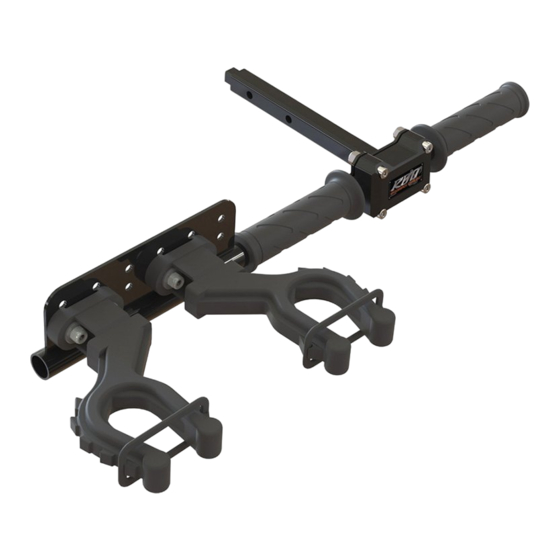

Installation Instructions Fig. 1-1 Grab Handle Assembly T-Handle Bar Gun Mounts Milled T-Handle Block The following are instructions for assembly and installation of the Polaris RZR® Ultimate Gun Rack/Grab Handle/Lug Wrench™. Bolt the Milled T-Handle Block to the T-Handle Bar around the Grab Handle Assembly using - (4) 1/4”... -
Page 9: Mounting Configurations
Mounting Configurations The Polaris RZR® Ultimate Gun Rack/Grab Handle/Lug Wrench™ was designed so that it can be configured in a multiple different ways. The accessory plate on the grab handle bar has several mounting holes for the installation of the gun mounts, and the grab handle bar can be oriented so the accessory plate is on the top or bottom. - Page 10 WARNING When configuring the set-up of your Polaris RZR® Ultimate Gun Rack/Grab Handle/Lug Wrench™ make sure that you leave adequate space for your hands to operate the vehicle. It is up to the operator of the vehicle to determine the set-up of the Polaris RZR®...
- Page 11 Built- In 1/2” Drive Fig. 4-1 The Polaris RZR® Ultimate Gun Rack/ Grab Handle/Lug Wrench™ features a machined in a ½” drive socket adapt- er into the end of the mounting shaft. This allows you to use our Ultimate Gun Rack ™...
- Page 12 Please fi ll out the product registration form at razorbackoff road.com/product-registration within 15 days after purchase. This validates the warranty transfer and is essential for your protection. If RBO should ever need to contact you concerning compliance of your RBO equipment with any applicable safety standards, the information you have provided on the product registration form will ensure your immediate notifi...
