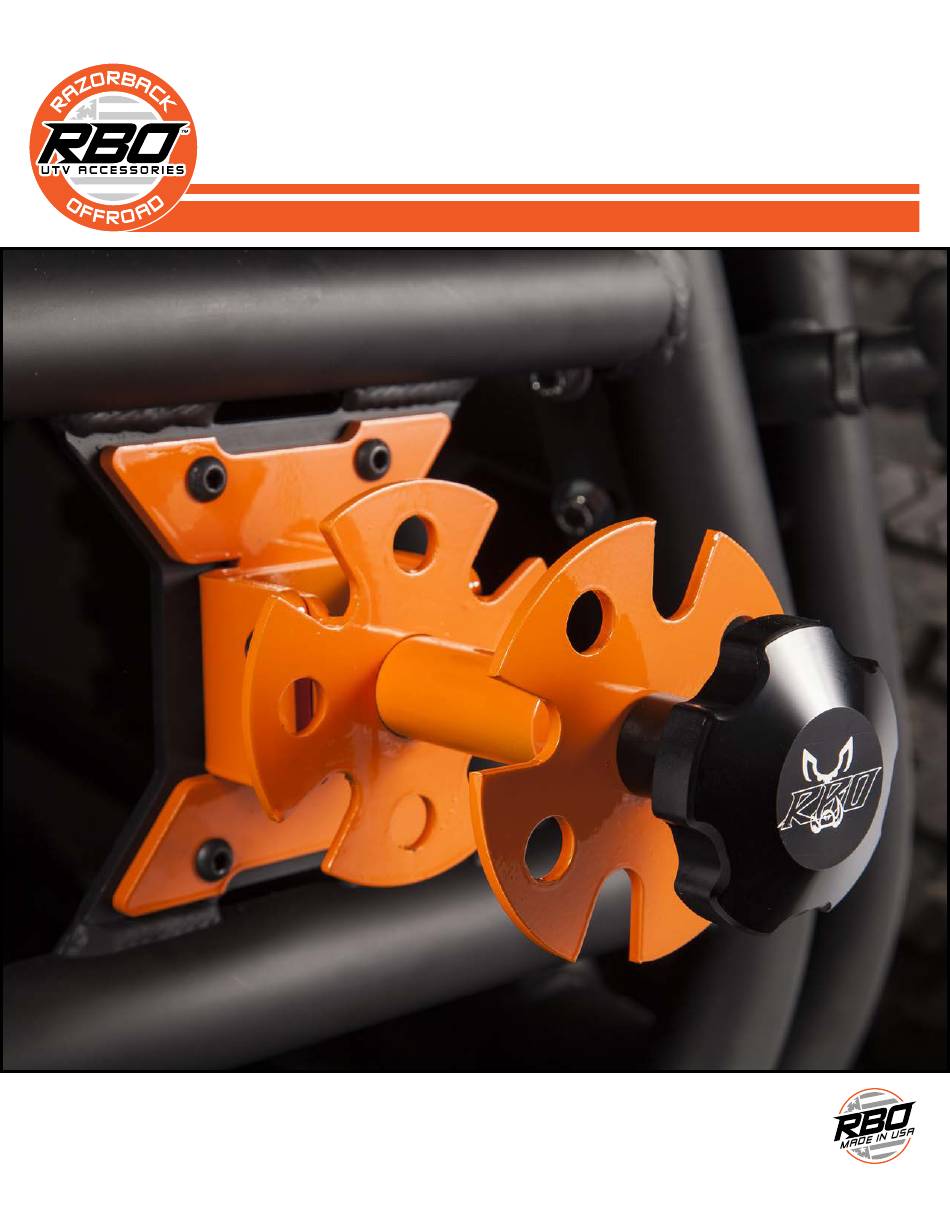

- Page 1 RBO “IT FITS ” ™ ROTOPAX MOUNT P R O D U C T M A N U A L P a r t N u m b e r : R B O 1 0 0 8...
- Page 2 PRODUCT MANUAL INFORMATION INTRODUCTION Everyone here at Razorback Offroad™ would like to thank you for your recent purchase of one of our products, and tell you congratulations! Our passion is to provide our customers with the best products and parts money can buy! Without support from valued customers such as yourselves, our business, as well as the people who work for it, wouldn’t survive. We hope you find our products useful and get the most out of every experience with them. Thank you! ATTENTION This manual should be read carefully. It contains important information that needs to be fully understood and followed in order to ensure that the Razorback Offroad products discussed in this manual are used properly to ensure the safety of all persons (e.g. operators, customers, bystanders). R A Z O R B A C K O F F R O A D . C O M...
- Page 3 MODIFICATION DO NOT modify or tamper with any RBO product. Doing so will void any applicable warranty and may result in serious injury or death. • Warranties will be voided if any RBO Product is modified or tampered with! INSPECTION...
-
Page 4: Terms And Conditions
In order for a product to qualify for the 100% money back guarantee, claim must be fi led must be fi led within 30 days of purchase date. Once the product is returned to RBO, RBO will send a check to the user to cover the initial product cost less freight charges if any. - Page 5 Notice to Owner or User It is the responsibility of the Owner or User to go to our Product Registration page to register your RBO product. Failure to register product will void any expressed or implied warranties of RBO products. Filling out your online warranty registration is very important in the event that RBO should ever need to contact you concerning the compliance of your registered equipment with any applicable safety standards, the information you have provided on the warranty registration transfer below will ensure your immediate notifi...
-
Page 6: Tools Required For Installation
RBO “IT FITS™” ROTOPAX MOUNT PART# DESCRIPTION RBO “IT FITS™” ROTOPAX MOUNT RBO1008 (MOUNTING HARDWARE INCLUDED) INCLUDED MOUNTING HARDWARE TOOLS REQUIRED FOR INSTALLATION • 1/4” x 3/4” Hex Flange Bolt (8) • 7/16” End Wrench • 1/4” Flange Nylock Nut (8) •... -
Page 7: Installation Instructions
Installation Instructions The following are general instructions for installation of the RBO “It Fits™” Rotopax Mount. STEP 1 Setting the offset of the “It Fits™” Rotopax Mount: 0” OFFSET (0” - STEP 1.1) To set the “IT FITS™” Rotopax™ Mount to its first offset position (0”) place the Offset Arm into the It Fits Mounting... - Page 8 See Figure 2-1 Fig. 2-1 (STEP 2.2) Once the cap screws and Nylock Nuts are started RBO rec- ommends using an impact driver with a #3 Phillips attachment with a 7/16” wrench to tighten down each Bolt and Nylock Nut.
- Page 9 See Figure 3-2 Fig. 3-2 (STEP 3.3) With the screws and bolts in place RBO recommends using an impact driver with a #3 Phillips attachment with a 7/16” wrench to tighten down each Bolt and Nylock Nut to the RBO Rack.
- Page 10 STEP 4 Installation of the “It Fits™” Rotopax Mount to a rack: (Step 4.1) With the “It Fits™” Rotopax™ Mount now mounted to the rack a rotopax container can be slid on the Offset Arm. Once resting on the arm and positioned as desired the Fuel Can Top Place slid over the arm and the “Ir Fits™”...
- Page 11 Please fi ll out the product registration form at razorbackoff road.com/product-registration within 15 days after purchase. This validates the warranty transfer and is essential for your protection. If RBO should ever need to contact you concerning compliance of your RBO equipment with any applicable safety standards, the information you have provided on the product registration form will ensure your immediate notifi...
