- Page 1 FOLDING FRONT WINDSHIELD P R O D U C T M A N U A L PRODUCT IMAGE P a r t N u m b e r : R B O 4 0 7 6...
- Page 2 PRODUCT MANUAL INFORMATION INTRODUCTION Everyone here at Razorback Offroad™ would like to thank you for your recent purchase of one of our products, and tell you congratulations! Our passion is to provide our customers with the best products and parts money can buy! Without support from valued customers such as yourselves, our business, as well as the people who work for it, wouldn’t survive. We hope you find our products useful and get the most out of every experience with them. Thank you! ATTENTION This manual should be read carefully. It contains important information that needs to be fully understood and followed in order to ensure that the Razorback Offroad products discussed in this manual are used properly to ensure the safety of all persons (e.g. operators, customers, bystanders). R A Z O R B A C K O F F R O A D . C O M...
- Page 3 MODIFICATION DO NOT modify or tamper with any RBO product. Doing so will void any applicable warranty and may result in serious injury or death. • Warranties will be voided if any RBO Product is modified or tampered with! INSPECTION...
-
Page 4: Terms And Conditions
In order for a product to qualify for the 100% money back guarantee, claim must be fi led must be fi led within 30 days of purchase date. Once the product is returned to RBO, RBO will send a check to the user to cover the initial product cost less freight charges if any. - Page 5 Notice to Owner or User It is the responsibility of the Owner or User to go to our Product Registration page to register your RBO product. Failure to register product will void any expressed or implied warranties of RBO products. Filling out your online warranty registration is very important in the event that RBO should ever need to contact you concerning the compliance of your registered equipment with any applicable safety standards, the information you have provided on the warranty registration transfer below will ensure your immediate notifi...

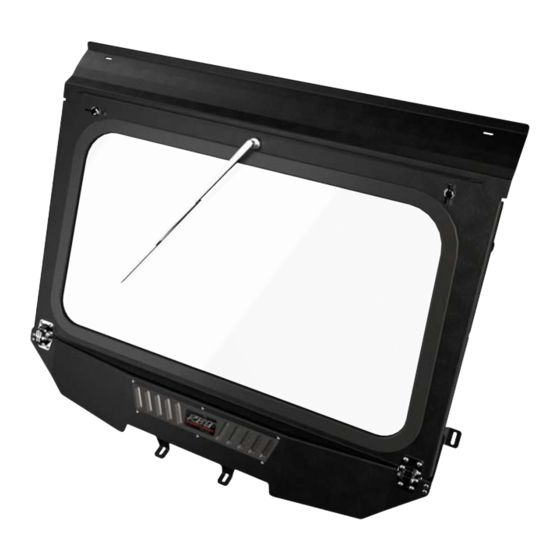

- Page 6 PART# DESCRIPTION MAVERICK FRONT FOLDING WINDSHIELD W/ VENTS AND WIPER RBO4076 (MOUNTING HARDWARE INCLUDED) Our Fold Down Windshield has been in the works for quite a while now. We worked hard to build the absolutely best fold down windshield we could.
- Page 7 INCLUDED MOUNTING HARDWARE • 1/4” x 3/4” Hex Flange Bolt (2) • 1/4” x 1” SS Truss Head Screw (12) • 1/4” - 20 x 3/4” Carriage Bolt (2) • 1/4” - 20 Flange Nylock Nut (16) • M6 - 1.00 x 20MM Hex Flange Bolt (2) Failure to follow the safety guidelines listed may result in voiding any applicable warranty, serious bodily injury, or death.
-
Page 8: Installation Instructions
Installation Instructions The following are general instructions for installation of the Can-Am® Maverick Trail/Sport Front Folding Windshield Begin by removing the vented hood insert from the Maverick and removing the 2 bolts located near the back. (Fig. 1) Fig. 1 Install the “Bottom Windshield Plate”... - Page 9 Align the top (2) bracket mounts of the “Bottom Windshield Plate” with the holes shown in (Fig. 3) Fig. 3 Tighten the top (2) bracket mounts of the “Bottom Windshield Plate” with the hardware provided. (Fig. 4) M6 - 1.00 x 20MM Hex Flange Bolt (2) Fig.
- Page 10 Attach the “Top Windshield Plate” by aligning the bottom two brackets to the ROPS Bar and securing it with the provided hardware. (Fig. 5) 1/4” - 20 x 3/4” Carriage Bolt (2) 1/4” - 20 Flange Nylock Nut (2) Fig. 5 Align the top of the “Top Windshield Plate”to the two mounting points on the roof shown in (Fig.
- Page 11 Align the two windshield supports to the body lines shown in (Fig. 9). Fig. 9 Using the mount as a template drill one hole using a 17/64ths drill bit into the hood plastic of the vehicle. (Fig. 10) Fig. 10 Tip: After drilling the first mounting hole, insert a bolt as a place holder to secure the windshield sup- port in place.
- Page 12 Mount the windshield supports using a 7/16ths wrench and a #3 Phillips head screwdriver with the provided hardware. (Fig. 12 & Fig. 13) 1/4” - 1” SS Truss Head (10) 1/4” - 20 Flange Nylock Nut (10) Fig. 12 Fig. 13 Mount the windshield by aligning it with the “Top Windshield Plate”...
- Page 13 THIS PAGE INTENTIONALLY LEFT BLANK Failure to follow the safety guidelines listed may result in voiding any applicable warranty, serious bodily injury, or death. It is very important that you properly fill out your product registration form at razorbackoffroad.com/product-registration/ to register your equipment. By submitting the information within 15 days of your purchase, your warranty will be validated, ensuring that your equipment will be protected subject to the terms and conditions set out herein. In the event we need to contact you concerning your registered equipment, Product Updates, Service Bulletins, or Product Recalls, the information you have provided on the product registration form will ensure your immediate notification. Do your part and let us help you by filling out your product registration form. R A Z O R B A C K O F F R O A D . C O M...
- Page 14 Please fi ll out the product registration form at razorbackoff road.com/product-registration within 15 days after purchase. This validates the warranty transfer and is essential for your protection. If RBO should ever need to contact you concerning compliance of your RBO equipment with any applicable safety standards, the information you have provided on the product registration form will ensure your immediate notifi...
