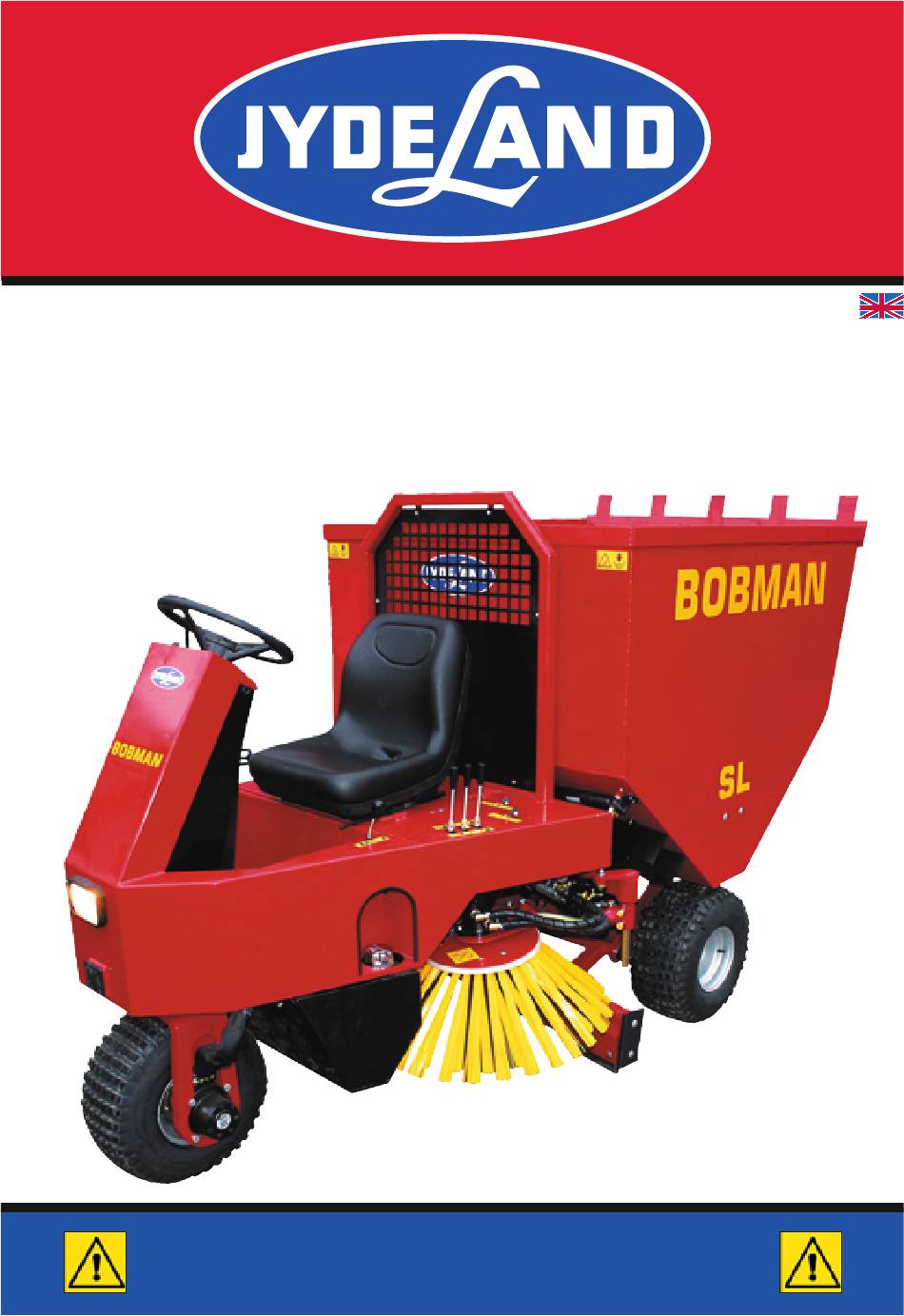

- Page 1 BOBMAN SL INSTRUCTIONS UK 40-2011 READ BEFORE USE!
- Page 2 INTRODUCTION Thank you for your interest in the Jydeland Bobman. We trust you will gain a lot of satisfaction from your purchase for many years and that your Bobman will fulfil your expectations. Please read these instructions before using the machine.
- Page 4 WARNING A Bobman can only be used outdoors or in a well-ventilated room, as the exhaust gas contains highly toxic CO². The machine can only be operated by the driver sitting in the driver’s seat with at least one hand always on the steering wheel and both feet resting on the foot rests or pedals.
-
Page 5: Warning Symbols
WARNING SYMBOLS There are yellow warning stickers on the machine indicating where extra caution must be exercised. These are instructions. Always use the machine with care. Caution! Always accompanied by another pictogram. Read in instruction book. Large rotating screw conveyor. Risk of crushing. -
Page 6: Operation
Operation Dosing 1 WD / 3 WD Handle for adjusting Switch between the dosing of spread 1 and 3 wheel drive material. Drive Press pedal on right for forwards and lift pedal for reverse. Scraper Tipping Handle for raising, lowering Handle for and adjustment of scraper unloading... - Page 7 Spreadmachine Starts and stops the hydraulic motors for the spreader and mixer. Battery 12 V sealed battery under seat. Keep terminals clean. Fuel Fuel filler cap at the left side. Massive hjul Massive silicone filled wheel as option.
- Page 8 Adjusting brush Blower housing Brush Brush weighs approx. 80 cm and can be replaced. 19 mm spanner required to adjust up and down on swing arm. Engine arm can be turned further. Rear of brush must be approx. 5 cm clear of ground when brushing Accessories for different box heights can be ordered (parallelogram).
- Page 9 Mixer can be mounted afterwards over Rubber on scraper can be replaced. snail, to prevent material not getteing to the snail. Using the Bobman spreader Fill hopper with sawdust or chopped straw, 3-8 cm pieces, by lowering and driving into sawdust/straw pile. Lower scraper onto ribbed floor.
-
Page 10: Maintenance
Maintenance Cleaning Lubrication Always keep engine clean - use com- Lubricate steering chain with oil pressed air if necessary. Avoid blow- (spray-on chain oil is recommended). ing directly into air filter. Replace air Lubricate ball joints with no grease filter often to avoid reducing engine nipple and universal joint on steering power due to dust in air. -
Page 11: Air Filter
Kubota Air filter Change air filter if blocked. Blow filter clean from inside out. Engine will overheat if filter is blocked, reducing air intake. It will produce a lot of smoke, traction power will be reduced and fuel con- sumption increase. Fuel filter Change fuel filter before it becomes blocked or once... - Page 12 Bobman SL...
- Page 13 Schraber frame for Bobman SL 791006 Skrabegummi, Bobman SL Schraberober, Bobman SL 791007 Skinne for skrabegummi for bobman 2 Rail for schraberrober for Bobman SL 790108 Glideskinne 12x100x180 mm Sleiderrail 12x100x180mm plast 790058 Komplet forhjul til 1 WD 13x6,50-6 Komplit frontwheel for 1WD 13x6,5-6 791008 Hyd.
- Page 14 Bobman SL box...
- Page 15 Hyd. motor 12,5 ccm Hydr. Motor 12,5ccm 792003 Hyd. motor 315 ccm Hydr. Motor 250 ccm 792004 Snegl for strøkasse bobman SL Scru for spreedmaschine Bobman SL 790088 Flangeleje 25 mm FL205 (UC205) Bearring 25mm FL205 (UC205) 792005 Spjæld for blæser bobman 2...
- Page 16 Feedturner Maintenance Used to push feed to one side. Clean hydraulic snap couplings before mounting. User instructions Clean screw conveyor regularly to pro- long service life. Mounted on A frame. Lock on top of A frame MUST be engaged. Sealed ball bearings do not need lubrica- Clean hydraulic couplings before mount- tion.
- Page 17 Varenr Navn Engelsk 780072 Feedturnerkonsol 780162 Plastikskinne 1050 mm 780073 Plastikskinne 110 cm 780074 Hovedaksel Ø30 f. feedturner 780075 Hyd. slange 3/8 950 mm" 780042 Hyd. slange 3/8 750 mm m. 90° bøjning" 780016 Slangepose 600 mm Housbak 600mm 780076 Hyd.
- Page 18 Never put your fingers or any other the Bobman spreader box object into the screw conveyor or Obtain diagram from Jydeland. blower unless the machine is stopped The grille in front of the exhaust must not be damaged or removed...
- Page 19 Varenr Navn Engelsk 790090 Rystearm for strøkasse Schakerarm for spreedermachin 780701 MS15 Kasse 780702 Låg for kasse 780703 Snegl med blæser 780704 Kugleleje for snegl 780705 Juster spjæld 780706 Sikkerhedsgitter 780707 Beslag til kasse 780708 Blæsehus 780709 Lille sikkerhedsgitter 780710 Kuglehane 780038 Håndtag...
-
Page 20: Technical Data
Technical Data Motor ..... Kubota 2 cylindret diesel Fueltank ........15 l Speed ........12 km/t Drive ........3 WD Weight ........450 kg Height ........1,7 meter Length .........2,7 meter Width ........1,2 meter Sweep diameter ....0,7 meter Scrape width .......1,2 meter Spread distance ...... -
Page 21: Hydraulic Diagram
Hydraulic diagram... -
Page 22: Wiring Diagram
Wiring diagram... - Page 23 Service log Date Hydr. Engine Lubrica- Wear parts Fitter tion...
-
Page 24: Declaration Of Conformity Ce Marking
Nr.: Sequential serial number Jydeland Maskinfabrik A/S · Drammelstrup · DK-8400 Ebeltoft Jydeland Maskinfabrik A/S · Drammelstrup · DK-8400 Ebeltoft Tlf. 0045 86 36 33 00 · jydeland@jydeland.dk · www.jydeland.dk Tlf. 0045 86 36 33 00 · jydeland@jydeland.dk · www.jydeland.dk...
