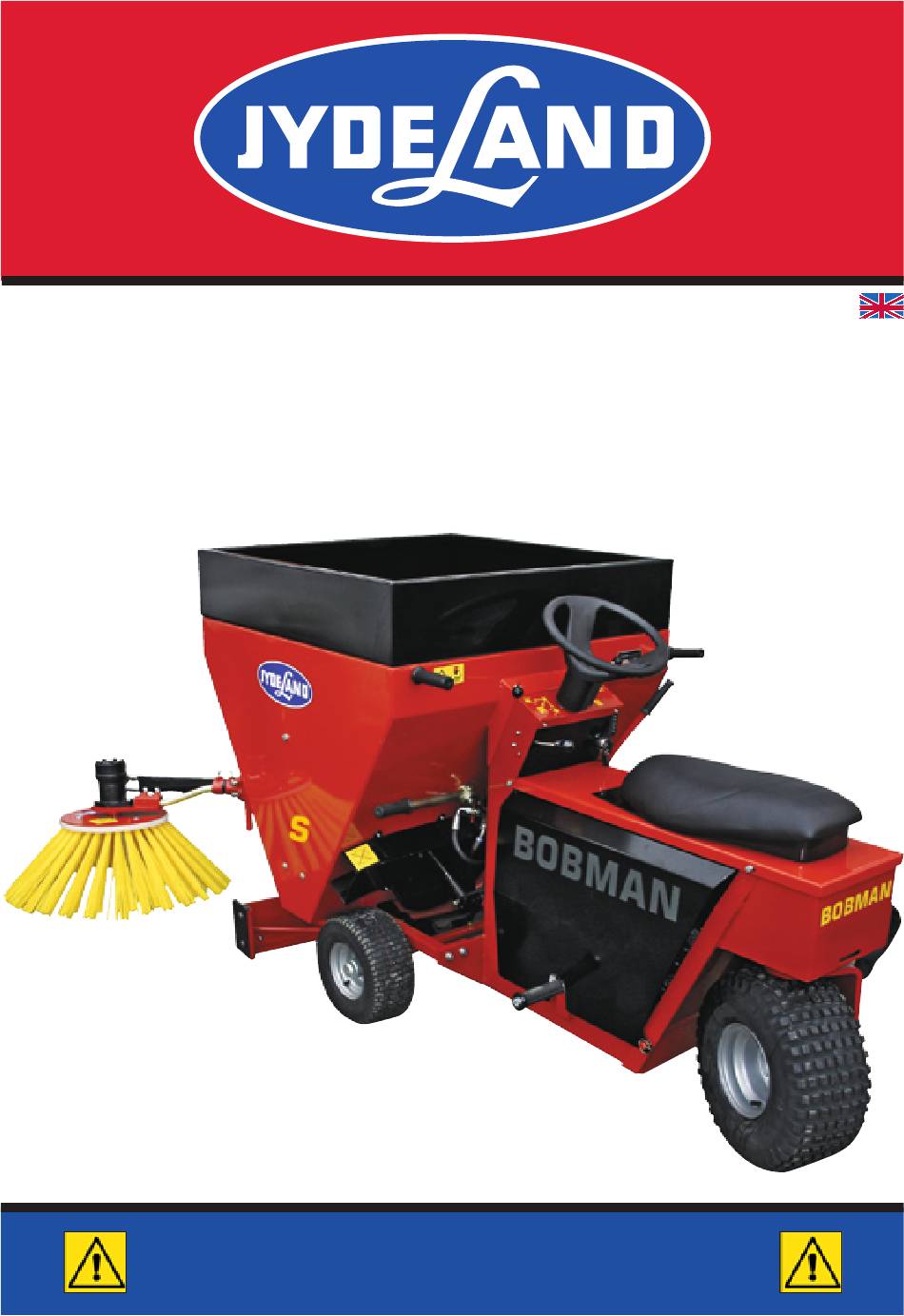

- Page 1 BOBMAN S INSTRUCTIONS UK 03-2012 READ BEFORE USE!

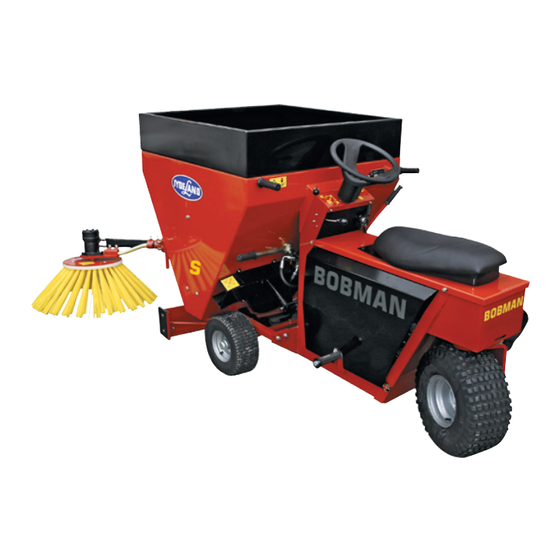

- Page 2 INTRODUCTION Thank you for your interest in the Jydeland Bobman. We trust you will gain a lot of satisfaction from your purchase for many years and that your Bobman will fulfil your expectations. Please read these instructions before using the machine.
- Page 4 WARNING A Bobman can only be used outdoors or in a well-ventilated room, as the exhaust gas contains highly toxic CO². The machine can only be operated by the driver sitting in the driver’s seat with at least one hand always on the steering wheel and both feet resting on the foot rests or pedals.
-
Page 5: Warning Symbols
WARNING SYMBOLS There are yellow warning stickers on the machine indicating where extra caution must be exercised. These are instructions. Always use the machine with care. Caution! Always accompanied by another pictogram. Read in instruction book. Large rotating screw conveyor. Risk of crushing. -
Page 6: Operation
Operation Starting diesel engine Turn key under steer- ing wheel to start Hatz diesel engine. Shall not preheat. Drive Press pedal on right for forwards and lift pedal for reverse. Spreadmachine and brush Brush Dosing Starts and stops the hydraulic motors for Pushes out Handle for the brush and spreader. - Page 7 Steering Back wheel is turned by chains from steering wheel passing under seat. Remove seat and top panel to adjust. Battery 12 V sealed battery. Keep terminals clean. Shaker Shakes material loose in the event of clumping. Scraper Handle for raising, lowering and adjustment of scraper height.
- Page 8 Adjusting brush Blower housing Brush Brush weighs approx. 80 cm and can be replaced. 19 mm spanner required to adjust up and down on swing arm. Engine arm can be turned further. Rear of brush must be approx. 5 cm clear of ground when brushing Accessories for different box heights can be ordered (parallelogram).
- Page 9 Adjustment of scraper height using 19 Rubber on scraper can be replaced. mm spanner Using the Bobman spreader Fill hopper with sawdust or chopped straw, 3-8 cm pieces, Topbox can be mounted Lower scraper onto ribbed floor. Start hydraulics on right side of steering wheel. (on/off) Start brush using left handle under steering wheel.
-
Page 10: Maintenance
Maintenance Cleaning Lubrication Always keep engine clean - use com- Lubricate steering chain with oil pressed air if necessary. Avoid blow- (spray-on chain oil is recommended). ing directly into air filter. Replace air Lubricate ball joints with no grease filter often to avoid reducing engine nipple and universal joint on steering power due to dust in air. -
Page 11: Air Filter
Hatz Air filter Change air filter if blocked. Blow filter clean from inside out. Engine will overheat if filter is blocked, reducing air intake. It will produce a lot of smoke, traction power will be reduced and fuel con- sumption increase. Fuel filter Change fuel filter before it becomes blocked or once... - Page 13 Bobman S frame Varenr Navn Name 790070 Bobman strø chassis Bobman Spreed chassis 790001 Sædeskjold Bobman Pro/Strø Siettopplait Bobman Pro/speed 790002 Sædeholder til Bobman Pro/Strø Sietplait for Bobman Pro/spreed 790003 Sæde til Bobman Pro/Strø Siet for Bobman Pro/spreed 790004 Honda GX 390 13 Hk m. selvstart Honda Gx390 13HP with.Electric start...
- Page 15 Bobman S frame Varenr Navn Name 790036 Fælg 700Ax8H2 Weelbase 700Ax8H2 790112 Slange 18x8,50/9,50-8 Snaike 18x8,5/9,5-8 780999 Vægtklods i hjulet Weight blocks for wheel 790121 Støttebolt Bobman 9 hk 85 mm Boult for wait in weel 130mm 780114 Hyd. motor 160 ccm Danfoss Hydr.
- Page 17 790058 Komplet forhjul til 1 WD 13x6,50-6 Komplit frontwheel for 1WD 13x6,5-6 790073 40x40 endepropper 40 x 40 plasticinstick 780067 Skrabegummi, Bobman S, FL Schraberrober, Bobman S, FL 780068 Skinne f. skrabegummi Rail for schraberrober 790076 Stop for skraber Stop for schraberrober 790077 Drænslange 550 mm...
- Page 18 Lubrication Spay oil using a thin pipe. There are no The box can be mounted on the left side grease nipples. of Bobman S and FL Attach hydraulic hoses on return side Safety from screw conveyor in the bottom of...
- Page 19 Varenr Navn Name 780701 MS15 Kasse 780702 Låg for kasse 780703 Snegl med blæser 780704 Kugleleje for snegl 780705 Juster spjæld 780706 Sikkerhedsgitter 780707 Beslag til kasse 780708 Blæsehus 780709 Lille sikkerhedsgitter 780710 Kuglehane 780038 Håndtag 780712 Spec. bolt for fodhviler 780713 Hydr.
-
Page 20: Technical Data
Technical Data Motor ....1 cylindret diesel HATZ Fueltank ..........5 l Speed ........8 km/h Drive ........1 or 3 WD Weight ........400 kg Height ........1,2 m Length ........2,4 m Width ........1,0 m Sweep diameter ......0,7 m Scrape width ...... -
Page 21: Hydraulic Diagram
Hydraulic diagram... -
Page 22: Wiring Diagram
Wiring diagram... - Page 23 Service log Date Hydr. Engine Lubrica- Wear parts Fitter tion...
-
Page 24: Declaration Of Conformity Ce Marking
Nr.: Sequential serial number Jydeland Maskinfabrik A/S · Drammelstrup · DK-8400 Ebeltoft Jydeland Maskinfabrik A/S · Drammelstrup · DK-8400 Ebeltoft Tlf. 0045 86 36 33 00 · jydeland@jydeland.dk · www.jydeland.dk Tlf. 0045 86 36 33 00 · jydeland@jydeland.dk · www.jydeland.dk...
