Summary of Contents for JYDELAND BOBMAN FL

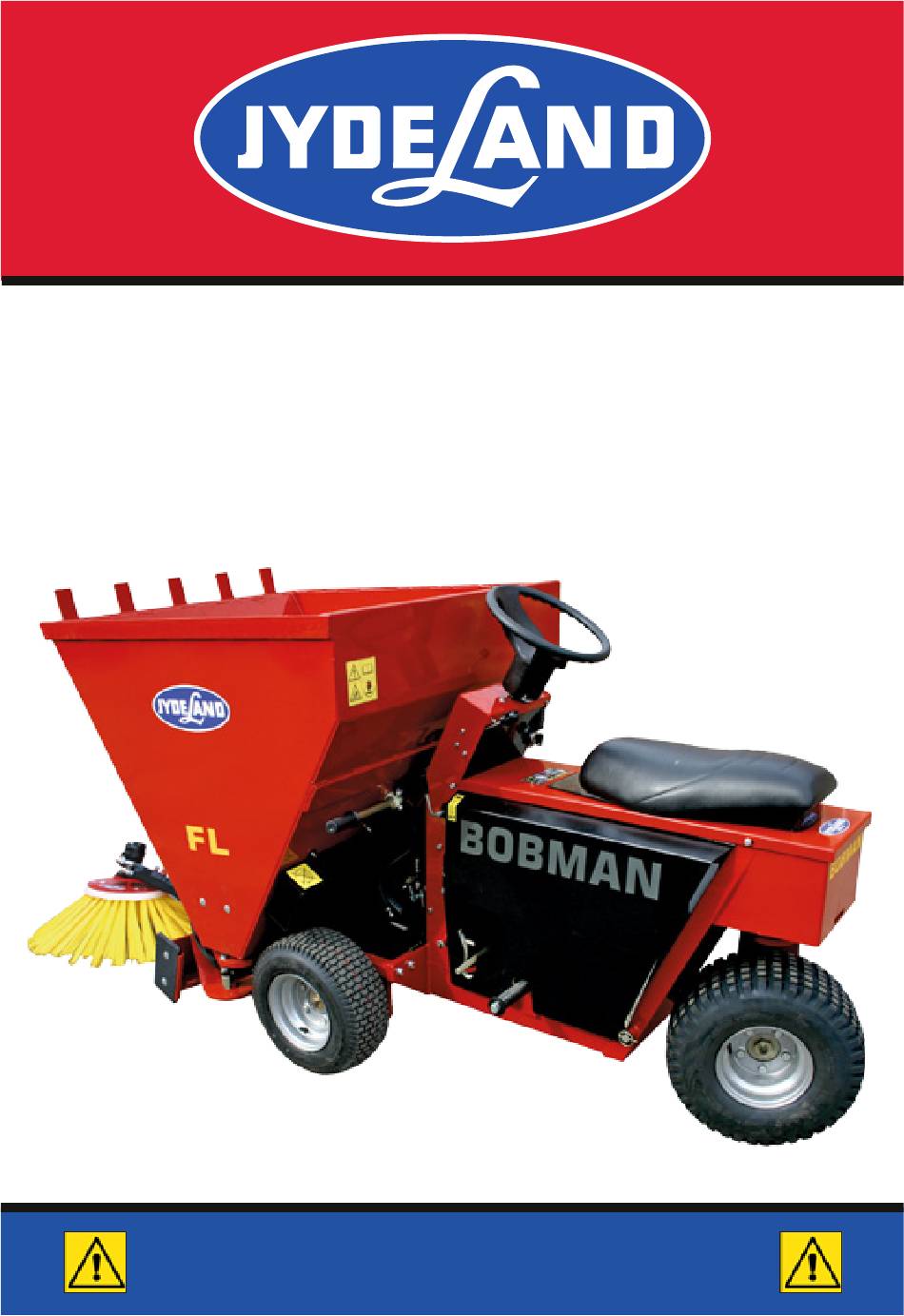

- Page 1 BOBMAN FL INSTRUCTIONS UK 40-2011 READ BEFORE USE!
- Page 2 INTRODUCTION Thank you for your interest in the Jydeland Bobman. We trust you will gain a lot of sat- isfaction from your purchase for many years and that your Bobman will fulfil your expec- tations. Please read these instruc- tions...
- Page 4 WARNING A Bobman can only be used outdoors or in a well-ventilated room, as the exhaust gas contains highly toxic CO². The machine can only be operated by the driver sitting in the driver’s seat with at least one hand always on the steering wheel and both feet resting on the foot rests or pedals.
-
Page 5: Warning Symbols
WARNING SYMBOLS There are yellow warning stickers on the machine indicating where extra caution must be exercised. These are instructions. Always use the machine with care. Caution! Always accompanied by another pictogram. Read in instruction book. Large rotating screw conveyor. Risk of crushing. -
Page 6: Operation
Operation 1 WD / 3 WD Switch between 1 and 3 wheel drive Brush Dosing Tipping Pedal for brush start and stop. Handle for Handle for Rotation right/left. Stop in adjusting the unloading centre position. Swing brush dosing of hopper. spread out. - Page 7 Shaker Shakes material loose in the event of clumping. Spreadmachine and brush Starts and stops the hydraulic motors for the brush and spreader Throttle Engine RPM Starting diesel engine Turn key under seat to start diesel engine. Steering Scraper Back wheel is turned Handle for raising, lowering by chains from steering and adjustment of scraper...
- Page 8 Adjusting brush Blower housing Brush Brush weighs approx. 80 cm and can be replaced. 19 mm spanner required to adjust up and down on swing arm. Engine arm can be turned further. Rear of brush must be approx. 5 cm clear of ground when brushing Accessories for different box heights can be ordered (parallelogram).
- Page 9 Adjustment of scraper height using 19 Rubber on scraper can be replaced. mm spanner Using the Bobman spreader Fill hopper with sawdust or chopped straw, 3-8 cm pieces, by lowering and driving into sawdust/straw pile. Lower scraper onto ribbed floor. Start hydraulics on right side of steering wheel.
-
Page 10: Maintenance
Maintenance Cleaning nipple and universal joint on steering Always keep engine clean - use com- pressed air if necessary. Avoid blow- column with oil. kugleled som ikke har nipler smøres også med olie. ing directly into air filter. Replace air filter often to avoid reducing engine power due to dust in air. -
Page 11: Air Filter
Hatz Air filter Change air filter if blocked. Blow filter clean from inside out. Engine will overheat if filter is blocked, reducing air intake. It will produce a lot of smoke, traction power will be reduced and fuel con- sumption increase. Fuel filter Change fuel filter before it becomes blocked or once... - Page 12 Bobman FL frame...
- Page 13 Varenr Navn Engelsk 790000 Bobman Pro chassis Bobman Pro chassis 790001 Sædeskjold Bobman Pro/Strø Siettopplait Bobman Pro/speed 790002 Sædeholder til Bobman Pro/Strø Sietplait for Bobman Pro/spreed 790003 Sæde til Bobman Pro/Strø Siet for Bobman Pro/spreed 790128 Hatz 1B40U-X 10HK diesel motor 790068 Flexrør for udstødning til Hatz Flexpipe for Muffert for Hatz...
- Page 14 Bobman FL brush and scraper...
- Page 15 Varenr Navn Engelsk 795007 FL Understel 780067 Skrabegummi, Bobman S, FL Schraberrober, Bobman S, FL 780068 Skinne f. skrabegummi Rail for schraberrober 790108 Glideskinne 12x100x180 mm Sleiderrail 12x100x180mm plast 795008 Kostearm svingbar FL 791025 Hyd. cylinder 100mm BOBMAN SL hydr. cylinder 100L 790083 Kostearm Sweeparm...
- Page 16 Bobman FL box...
- Page 17 Varenr Navn Engelsk 795013 Endestopventil 795006 Strøkasse for Bobman FL 790078 Blæsehus Blowerhaus 790080 Blæsemølle Blowermill 790079 Hyd. motor 12,5 ccm Hydr. Motor 12,5ccm 790111 Hyd. motor 160 ccm Hydr. motor 160 ccm 792004 Snegl for strøkasse bobman SL Scru for spreedmaschine Bobman SL...
- Page 18 Never put your fingers or any other the Bobman spreader box object into the screw conveyor or Obtain diagram from Jydeland. blower unless the machine is stopped The grille in front of the exhaust must not be damaged or removed...
- Page 19 Varenr Navn Engelsk 790089 Ryster for strøkasse Schaker for spreedmachin 790090 Rystearm for strøkasse Schakerarm for spreedermachin 780701 MS15 Kasse 780702 Låg for kasse 780703 Snegl med blæser 780704 Kugleleje for snegl 780705 Juster spjæld 780706 Sikkerhedsgitter 780707 Beslag til kasse 780708 Blæsehus 780709...
-
Page 20: Technical Data
Technical Data Motor ....1 cylindret diesel HATZ Fueltank ..........5 l Speed ........8 km/h Drive ......... 3 WD Weight ........400 kg Height ........1,2 m Length ........2,4 m Width ........1,0 m Sweep diameter ......0,7 m Scrape width ...... - Page 21 Hydraulik diagram...
-
Page 22: Wiring Diagram
Wiring diagram... - Page 23 Service log Date Hydr. Engine Lubrica- Wear parts Fitter tion...
-
Page 24: Declaration Of Conformity Ce Marking
Council Directive 2006/42/EC of 29 December 2006 Signature Flemming Gits Jensen Type: Type designation År: Month and year Nr.: Sequential serial number Jydeland Maskinfabrik A/S · Drammelstrup · DK-8400 Ebeltoft Tlf. 0045 86 36 33 00 · jydeland@jydeland.dk · www.jydeland.dk...
