V1.1

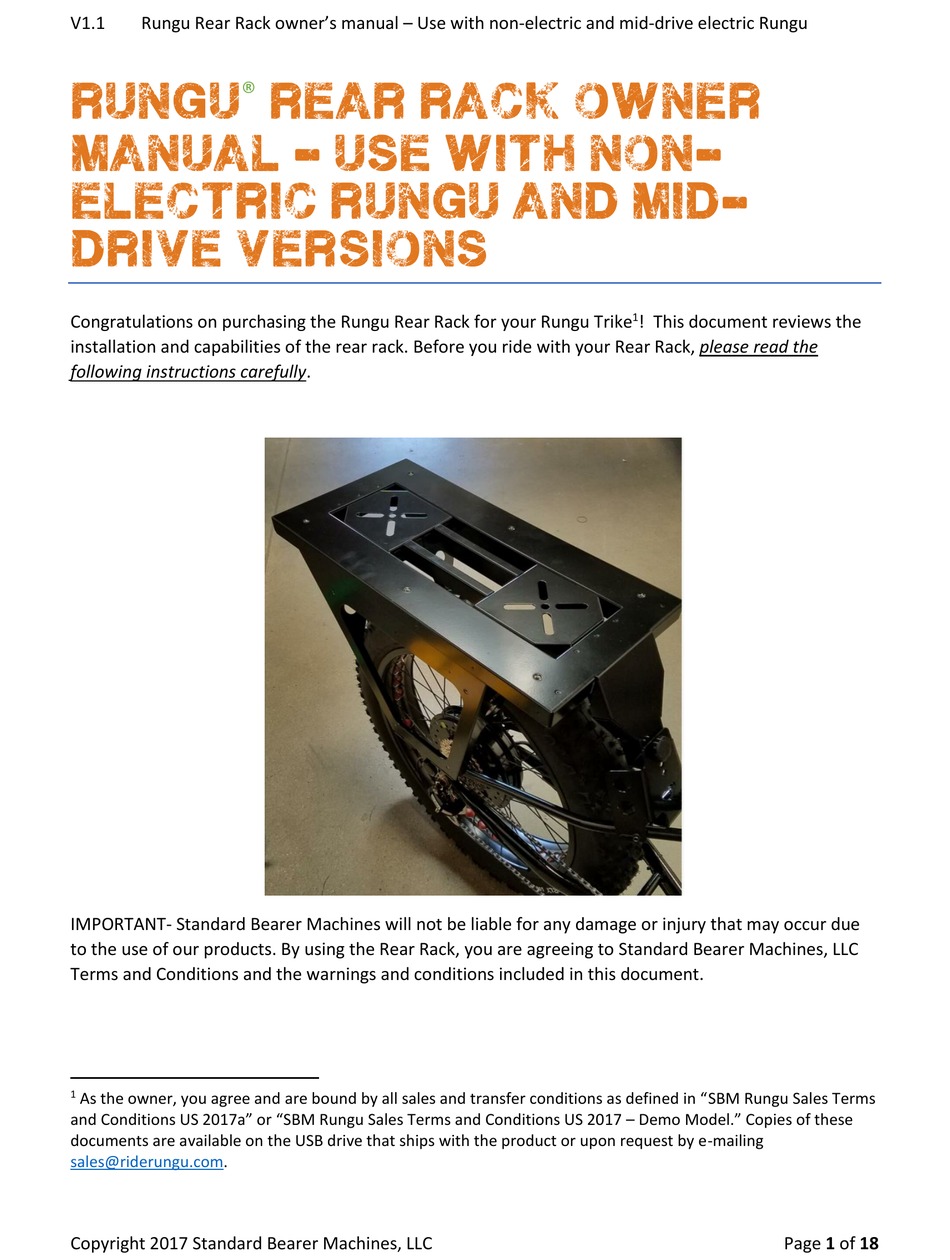

Rungu Rear Rack owner's manual – Use with non-electric and mid-drive electric Rungu
®
rungu
rear rack owner
manual - use with non-
electric rungu and mid-
drive versions
1
Congratulations on purchasing the Rungu Rear Rack for your Rungu Trike
! This document reviews the
installation and capabilities of the rear rack. Before you ride with your Rear Rack, please read the
following instructions carefully.
IMPORTANT- Standard Bearer Machines will not be liable for any damage or injury that may occur due
to the use of our products. By using the Rear Rack, you are agreeing to Standard Bearer Machines, LLC
Terms and Conditions and the warnings and conditions included in this document.
1
As the owner, you agree and are bound by all sales and transfer conditions as defined in "SBM Rungu Sales Terms
and Conditions US 2017a" or "SBM Rungu Sales Terms and Conditions US 2017 – Demo Model." Copies of these
documents are available on the USB drive that ships with the product or upon request by e-mailing
sales@riderungu.com.
Copyright 2017 Standard Bearer Machines, LLC
Page 1 of 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rear Rack and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rungu Rear Rack

Summary of Contents for Rungu Rear Rack

  • Page 1 Terms and Conditions and the warnings and conditions included in this document. As the owner, you agree and are bound by all sales and transfer conditions as defined in “SBM Rungu Sales Terms and Conditions US 2017a” or “SBM Rungu Sales Terms and Conditions US 2017 – Demo Model.” Copies of these documents are available on the USB drive that ships with the product or upon request by e-mailing sales@riderungu.com.

  • Page 2: Table Of Contents

    V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Contents Parts, Features and specifications ........................ 3 Parts identification ............................ 3 Top/Plan View Dimensions (inches) ......................5 Rear/elevation view dimensions (inches) ....................6 Side/elevation view dimensions ....................... 6 Installation and removal instructions ......................

  • Page 3: Parts, Features And Specifications

    Parts, Features and specifications Parts identification Warning: The Rear Rack center stiffener can be removed from the Rear Rack Assembly. Because the Rear Rack Center Stiffener increases the overall strength of the Rear Rack Assembly, DO NOT remove it. Removing the stiffener reduces the carrying capability to less than 100 lbs. (45kg).
  • Page 4 Rungu Electric Juggernaut. Operate the Electric Juggernaut with caution. Warning: DO NOT USE THE REAR RACK TO CARRY PASSENGERS. The Rear Rack is not designed to carry passengers. Standard Bearer Machines will not be liable for any injury that may occur to a passenger riding on the Rear Rack or to the person controlling the Electric Juggernaut while carrying a passenger on the Rear Rack.

  • Page 5: Top/Plan View Dimensions (Inches)

    V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Top/Plan View Dimensions (inches) Copyright 2017 Standard Bearer Machines, LLC Page 5 of 18...

  • Page 6: Rear/Elevation View Dimensions (Inches)

    V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Rear/elevation view dimensions (inches) Side/elevation view dimensions Copyright 2017 Standard Bearer Machines, LLC Page 6 of 18...

  • Page 7: Installation And Removal Instructions

    V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Installation and removal instructions Tools required 5mm hex wrench 4mm hex wrench Left and Right Side mounting arm installation To install the mounting arms, keep the trike upright on a level floor. Remove the quick release skewer from the rear hub.
  • Page 8 V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu On the left side, remove the bottom M6 cap screw that retains the disc brake mount. Then install the left side rack mount as depicted below re-using the M6 cap screw – the M6 cap screw should be positioned in the middle of the slot as shown, but may be adjusted later.

  • Page 9: Installing The Rear Triangle Mounting Plate

    V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Installing the Rear Triangle Mounting Plate Place the Rear Triangle Mounting Plate as shown below behind the saddle. Insert and finger tighten the M6 screw and washer through the slots on both sides of the plate to fasten the plate to M6 threaded holes on either side of the rear triangle.

  • Page 10: Installing The Rear Rack

    V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Installing the Rear Rack 1) Install the thumb screws into the holes in the side flanges at the base of the rack and thread the extra M8 Nut onto the other side of the support flange – note the image below shows a standard m8 bolt and not the thumb screw.
  • Page 11 V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Position the right flange of the rear rack outside of the right mount bracket as shown below. Copyright 2017 Standard Bearer Machines, LLC Page 11 of 18...
  • Page 12 V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Align the nuts on both sides of the rack so that they align the thumb screws with the nut on the threaded hole as depicted below 4) Thread the left side mounting/thumb screw through the nut and into the rack mount (electric version of rack mount shown below.
  • Page 13 (electric hub shown). Do not tighten. 6) Rotate the Rear Rack vertically and lift the Rear Rack Mounting Plate so that the front section of the Rear Rack fits under the Rear Rack Mounting plate. Line up the mounting hole on the Rear Rack with one of the four mounting holes on the Rear Rack Mounting Plate.
  • Page 14 7) Fasten the rear rack to the rack mounting plate with the remaining mounting hand screw. Tighten the screw by hand. 8) Use a 5mm hex wrench to tighten the hex bolt on each side of the Rear Rack Mounting Plate. Copyright 2017 Standard Bearer Machines, LLC...
  • Page 15 9) Hand tighten the hand screws on the right and left sides of the Rear Rack. The Rear Rack is now ready for use! If you decide to remove the Rear Rack, follow the directions below. Subsequent re-installations do not require re-alignment of the Rear Rack Mounting Plate so expect them to take less than two minutes to achieve.

  • Page 16: Removing The Rear Rack

    Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu Removing the Rear Rack You may want to remove the rear rack. If so, the instructions below show how to remove the rack without removing the Rear Rack Mounting Plate. Leaving the Rear Rack Mounting Plate in place makes reinstallation easier.
  • Page 17 V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu 3) Replace the Front Hand screw into the threaded hole in the front of the rack. This helps you to find the front hand screw the next time you want to install the rack.

  • Page 18: Further Questions

    V1.1 Rungu Rear Rack owner’s manual – Use with non-electric and mid-drive electric Rungu 5) Try not to lose the nut on the inside of the rack as you remove the thumb screws. Replace the right and left side hand screws and nuts into the threaded holes on the surface of the rack. This will help you find them the next time you want to install the rack.
