Rungu Rear Rack owner's manual – Use with Electric Juggernaut
®
rungu
rear rack owner
manual - use with the rungu
electric juggernaut
1

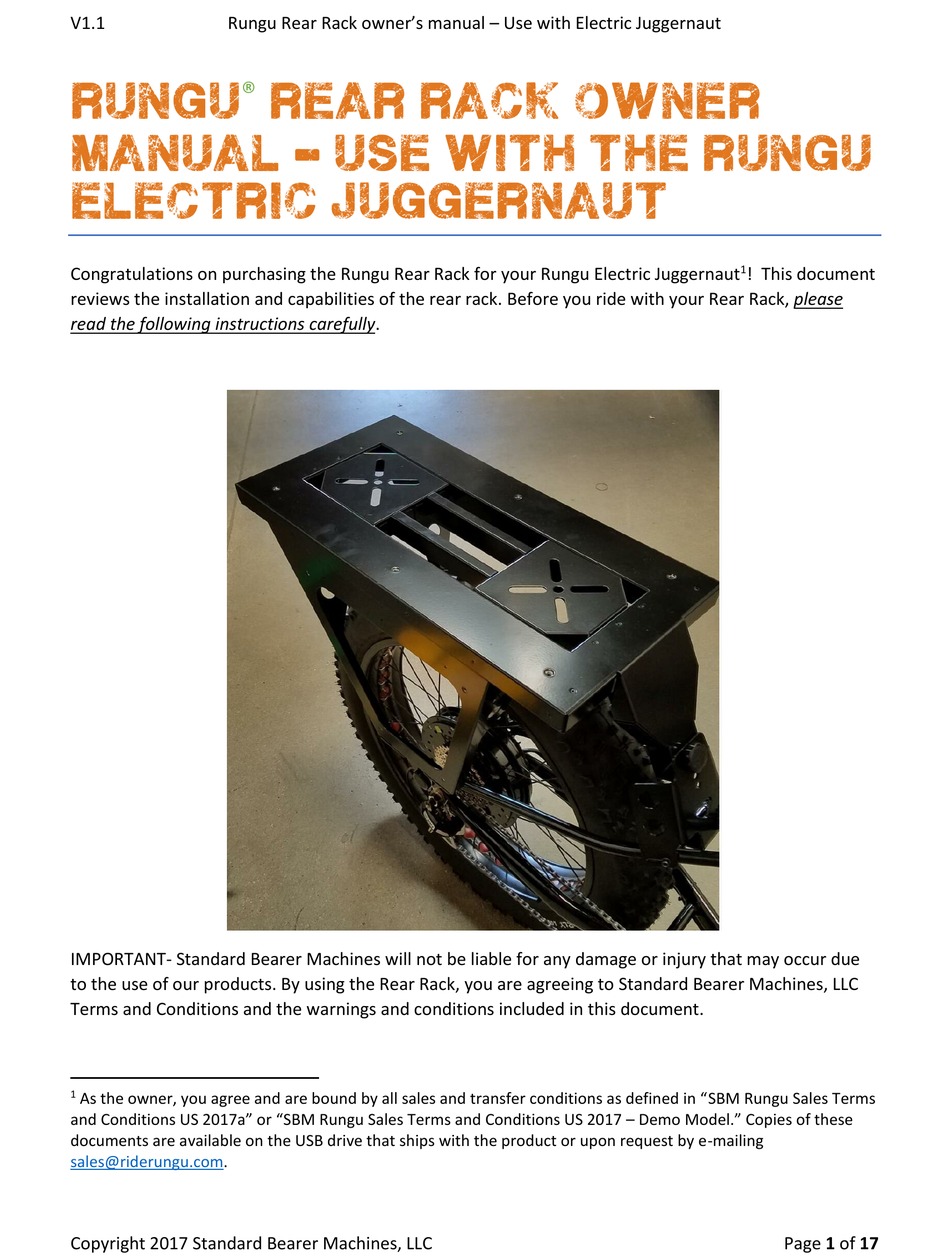

Congratulations on purchasing the Rungu Rear Rack for your Rungu Electric Juggernaut
! This document
reviews the installation and capabilities of the rear rack. Before you ride with your Rear Rack, please
read the following instructions carefully.
IMPORTANT- Standard Bearer Machines will not be liable for any damage or injury that may occur due
to the use of our products. By using the Rear Rack, you are agreeing to Standard Bearer Machines, LLC
Terms and Conditions and the warnings and conditions included in this document.
1
As the owner, you agree and are bound by all sales and transfer conditions as defined in "SBM Rungu Sales Terms
and Conditions US 2017a" or "SBM Rungu Sales Terms and Conditions US 2017 – Demo Model." Copies of these
documents are available on the USB drive that ships with the product or upon request by e-mailing
sales@riderungu.com.
Copyright 2017 Standard Bearer Machines, LLC
Page 1 of 17
Advertisement
Table of Contents
Related Manuals for Rungu Rear Rack
Summary of Contents for Rungu Rear Rack
- Page 1 Terms and Conditions and the warnings and conditions included in this document. As the owner, you agree and are bound by all sales and transfer conditions as defined in “SBM Rungu Sales Terms and Conditions US 2017a” or “SBM Rungu Sales Terms and Conditions US 2017 – Demo Model.” Copies of these documents are available on the USB drive that ships with the product or upon request by e-mailing sales@riderungu.com.
-
Page 2: Table Of Contents
V1.1 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut Contents Parts, Features and specifications ........................ 3 Parts identification ............................ 3 Top/Plan View Dimensions (inches) ......................5 Rear/elevation view dimensions (inches) ....................6 Side/elevation view dimensions ....................... 6 Installation and removal instructions ......................7 Tools required ............................ -
Page 3: Parts, Features And Specifications
Parts, Features and specifications Parts identification Warning: The Rear Rack center stiffener can be removed from the Rear Rack Assembly. Because the Rear Rack Center Stiffener increases the overall strength of the Rear Rack Assembly, DO NOT remove it. Removing the stiffener reduces the carrying capability to less than 100 lbs. (45kg). - Page 4 Rungu Electric Juggernaut. Operate the Electric Juggernaut with caution. Warning: DO NOT USE THE REAR RACK TO CARRY PASSENGERS. The Rear Rack is not designed to carry passengers. Standard Bearer Machines will not be liable for any injury that may occur to a passenger riding on the Rear Rack or to the person controlling the Electric Juggernaut while carrying a passenger on the Rear Rack.
-
Page 5: Top/Plan View Dimensions (Inches)
V1.1 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut Top/Plan View Dimensions (inches) Copyright 2017 Standard Bearer Machines, LLC Page 5 of 17... -
Page 6: Rear/Elevation View Dimensions (Inches)
V1.1 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut Rear/elevation view dimensions (inches) Side/elevation view dimensions Copyright 2017 Standard Bearer Machines, LLC Page 6 of 17... -
Page 7: Installation And Removal Instructions
5mm hex wrench Preparation If you purchased your Rear Rack with your Electric Juggernaut, the factory-installed torque arms have mounting holes to mount the sides of the Rear Rack. The torque arms are shown below. Skip to the section “Installing the Rear Rack”;... -
Page 8: Installing The Rear Triangle Mounting Plate
V1.1 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut Installing the Rear Triangle Mounting Plate Place the Rear Triangle Mounting Plate as shown below behind the saddle. Insert and finger tighten the M6 screw and washer through the slots on both sides of the plate to fasten the plate to M6 threaded holes on either side of the rear triangle. -
Page 9: Installing The Rear Rack
V1.1 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut Installing the Rear Rack 1) Position the rack so that the front section faces up and the rear rests on the ground behind the rear wheel. Position the outer flanges on the right and left so that they are on the outside of the left torque arm as shown below, and…... - Page 10 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut Position the right flange of the rear rack outside of the right torque arm as shown below. 2) Insert a side mounting screw (has two nuts on the shaft) into the left side flange and the threaded hole of the torque arm.
- Page 11 Do not tighten. 4) Rotate the Rear Rack vertically and lift the Rear Rack Mounting Plate so that the front section of the Rear Rack fits under the Rear Rack Mounting plate. Line up the mounting hole on the Rear Rack with one of the four mounting holes on the Rear Rack Mounting Plate.
- Page 12 5) Fasten the rear rack to the rack mounting plate with the remaining mounting hand screw. Tighten the screw by hand. 6) Use a 5mm hex wrench to tighten the hex bolt on each side of the Rear Rack Mounting Plate. Copyright 2017 Standard Bearer Machines, LLC...
- Page 13 7) Hand tighten the hand screws on the right and left sides of the Rear Rack. The Rear Rack is now ready for use! If you decide to remove the Rear Rack, follow the directions below. Subsequent re-installations do not require re-alignment of the Rear Rack Mounting Plate so expect them to take less than two minutes to achieve.
-
Page 14: Removing The Rear Rack
Rungu Rear Rack owner’s manual – Use with Electric Juggernaut Removing the Rear Rack You may want to remove the rear rack. If so, the instructions below show how to remove the rack without removing the Rear Rack Mounting Plate. Leaving the Rear Rack Mounting Plate in place makes reinstallation easier. - Page 15 V1.1 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut 3) Replace the Front Hand screw into the threaded hole in the front of the rack. This helps you to find the front hand screw the next time you want to install the rack.
- Page 16 V1.1 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut 5) Replace the right and left side hand screws into the threaded holes on the surface of the rack. This will help you find them the next time you want to install the rack.
-
Page 17: Further Questions
V1.1 Rungu Rear Rack owner’s manual – Use with Electric Juggernaut Further questions Contact support by e-mail at support@riderungu.com or call +1.949.877.9755 Copyright 2017 Standard Bearer Machines, LLC Page 17 of 17...
