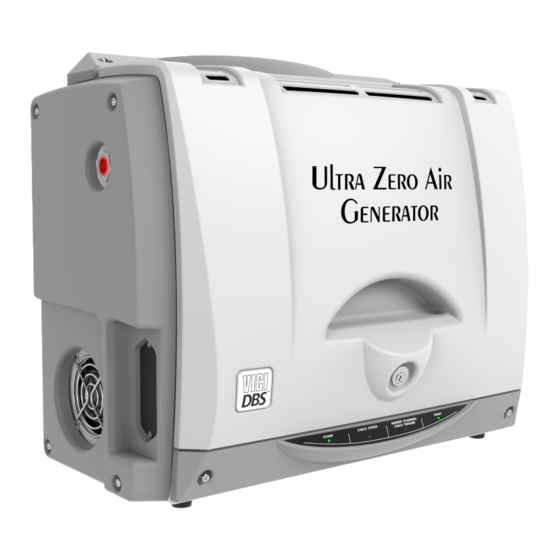

- Page 1 GT ULTRA ZERO AIR GENERATOR USER MANUAL Version 1.03.0000 APPLICABLE MODELS This manual is applicable to the following models: • GC Plus 1500 • GC Plus 15000 • GC Plus 3000 • GC Plus 30000 • GC Plus 6000 Version 1.03.0000...
-
Page 2: Table Of Contents
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com TABLE OF CONTENTS 1. VERSION HISTORY ..........................4 2. INTRODUCTION ............................ 4 2.1. SYMBOLS DEFINITION ........................5 3. SAFETY ..............................6 3.1. PERSONAL SAFETY INSTRUCTIONS ....................6 3.2. INSTRUMENT SAFETY INSTRUCTIONS .....................6 4. SPECIFICATIONS ........................... 7 5. - Page 3 GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 8. MAINTENANCE........................... 20 8.1. MAINTENANCE KITS ........................20 8.1.1. Annual Maintenance Kit ......................21 8.1.2. Three Year Catalyst Replacement Kit ..................21 8.2. FILTER REPLACEMENT ........................22 8.2.1. Annual Pre-filter Element Replacement ...................22 8.2.2. Annual High Grade In-Line Particulate Filter Replacement ............23 8.2.3.
-
Page 4: Version History
Eliminating gas cylinders reduces operating costs associated with materials, labor and down-time. The GT Ultra Zero Air generator will remove HC pollutants to less than 0.1 ppm. Operation of the generator is very economical since it is consuming reasonable quantities of compressed oil-free air and electricity. This complete turnkey system is engineered with the highest quality components, is easy to install and requires only minimal annual maintenance. -
Page 5: Symbols Definition
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 2.1 Symbol Definitions SYMBOL DESCRIPTION General warning. Caution is necessary when operating the device or control close to where the symbol is placed, or to indicate that the current situation needs operator awareness or operator action in order to avoid undesirable consequences. -
Page 6: Safety
The plug of the power cable must be disconnected in case of an emergency, it must be easily accessible at all times. • If the GT Ultra Zero Air is not used strictly as specified by VICI DBS, the protection plan may become compromised or void. Version 1.03.0000... -
Page 7: Specifications
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 4. SPECIFICATIONS MODELS & SPECS GT PLUS GT PLUS GT PLUS GT PLUS GT PLUS 1500 3000 6000 15000 30000 Flow mL/min 1500 3000 6000 15000 30000 Purity - hydrocarbons <0.1 ppm Purity - CO <0.1 ppm... -
Page 8: Engineering Design Overview
5. ENGINEERING DESIGN OVERVIEW The GT Ultra Zero Air generator utilizes a 5-stage process to purify ambient air into ultra zero grade air. All main components are manufactured with high grade stainless steel, oriented neatly in the cabinet for easy access and service. - Page 9 GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com Stage 4: Hydrocarbon and CO Removal Air is next channeled into a stainless steel catalyst chamber where background hydrocarbons and carbon monoxide are oxidized. This chamber is filled with a highly efficient platinum catalyst, heated to very high temperatures to ensure hydrocarbon removal to less than 0.1 ppm.
-
Page 10: Functionality
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 5.1. FUNCTIONALITY Version 1.03.0000... -
Page 11: Control Board
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 5.2. CONTROL BOARD The control board performs the following functions: 1. Controls the warm up of the catalyst: The control board tells the user if catalyst is warming up properly and when the catalyst has reached the set temperature. -
Page 12: Installation
LED Indicator Lights Key Lock 6.1 Packing List • GT Ultra Zero Air generator, completely assembled and fully burned in, ready for installation • High quality inlet air filter to remove particles and bulk moisture from air before entering the generator •... -
Page 13: Items Not Included In Standard Shipping
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 6.1.1. Items Not Included in Standard Shipping NOTE: The inlet air filter assembly supplied with the unit can also be used to de-pressurize the system by pressing the pin-valve in the base of the filter housing. -
Page 14: Unit Positioning
USER MANUAL www.vicidbs.com 6.5 Unit Installation The GT Ultra Zero Air Generator can be installed two different ways. Either placed on a surface, like a table or lab bench, or mounted to a wall. A. On a table/lab bench: For optimum ventilation allow at least 150 mm (6 inches) clearance on either side of the unit. -
Page 15: Connect Air Supply
• The output bulkhead of the GT Ultra Zero Air generator is located on the right side of the unit. It requires a 1/8” diameter fitting to attach the tubing or hose to the GC-detection system or analyzer air inlet port. -
Page 16: Leak Check
Warm-up cycle takes 45 min. GT Ultra Zero Air generator is designed to run continuously. Continuous operation preserves the performance of the catalyst. Shutdown should only be performed for maintenance. -
Page 17: Normal Operation
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 7.3. NORMAL OPERATION When the system is in operation mode, the green “System Ready” panel LED is illuminated and the outlet valve is open, supplying continuous Ultra Zero Air. During operation mode, the microcontroller continuously monitors the inputs. -
Page 18: Inlet Pressure High
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 7.4.2. Inlet Pressure High The maximum pressure that can be supplied to the unit is 10 bar. However, the inlet pressure regulator reduces inlet pressure to an adjustable level. The regulators are pre-set at the factory at 7 bar. The maximum allowable regulated inlet pressure is 7.5 bar. -
Page 19: Menu Options
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 7.4.7. Menu Options Condition Warm-up / Ready Check Outlet Check Pressure System Port YELLOW GREEN System Off: CLOSED System General: Power Control: Power Fault: CLOSED Heater Control: If catalyst temperature exceeds 650°C, the catalyst power will be shut down... -
Page 20: Shutdown Procedure
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 7.5. SHUTDOWN PROCEDURE Before performing any service or maintenance, be sure to complete the following steps: • Turn off power using the switch of the unit. • Disconnect the outlet tubing, and freely run air through the unit for several minutes to cool the catalyst. -
Page 21: Annual Maintenance Kit
8.1.1. Annual Maintenance Kit The GT Ultra Zero Air generator is designed to operate continuously for an entire year before service is required. An annual maintenance kit is available as a spare part. This kit includes the following parts: •... -
Page 22: Filter Replacement
Pull and Replace Element Filter NOTE: More frequent replacement of the inlet filter may be required depending on the quality of the air supply. Alternately, more filtration can be applied upstream of the GT Ultra Zero Air generator. Version 1.03.0000... -
Page 23: Annual High Grade In-Line Particulate Filter Replacement
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 8.2.2 Annual High Grade In-Line Particulate Filter Replacement The high grade in-line particulate filter is the final component before the outlet. The filter body is clear plastic and is held by inlet and outlet plastic air lines. -
Page 24: Three Year Catalyst Chamber Replacement
8.2.3 Three Year Catalyst Chamber Filter Replacement The catalyst chamber used in the GT Ultra Zero Air generator should be replaced every three years to maintain carbon monoxide and hydrocarbon specifications. The system should be shut down as described above prior to replacement. - Page 25 GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com • Carefully disconnect the two compression air fittings (1 and 2) to remove the cooling spiral (3). • Remove heater connections from the control board. • Unscrew the two screws to remove the aluminum plate from the metal heat shield covering the catalyst.
-
Page 26: Replacement
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 8.2.4. NO Column Replacement • If unit has been powered recently and catalyst is hot, turn off the power. DO NOT turn off the air at this time. • Remove the outlet connection and allow the outlet air to flow freely for 2 hours to cool the catalyst. After 2 hours of cool-down, disconnect the air supply. -
Page 27: Troubleshooting
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 9. TROUBLESHOOTING CONDITION Warm-up / Ready Check Number on Check Pressure System the Board YELLOW GREEN SYSTEM GENERAL: Power Fault: Fault: Catalyst replacement After 3 years Blink 1 After 3 years plus 60 days STARTUP: Quick Start Mode (0 to 3 minutes max.) -
Page 28: Error Codes On Main Board
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 9.1. Error Codes on Main Board DISPLAY # CHECK SYSTEM DESCRIPTION RED LED STATUS BLINKING 1 Minimum Pressure Pre-Alarm BLINKING 2 Maximum Pressure Pre-Alarm BLINKING 3 Valve Switching Pre-Alarm BLINKING 4 BLINKING... -
Page 29: Fluidics Diagram
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 10. FLUIDICS DIAGRAM System: GT Plus Date: THIS DOCUMENT AND THE INFORMATION WHICH Rev.: IT CONTAINS SHALL NOT BE USED, EXPLOITED Description: air flow diagram Created: 13.05.2020 OR SOLD, AND SHALL NOT BE REVEALED OR... -
Page 30: Spare Parts List
GT ULTRA ZERO AIR GENERATOR USER MANUAL www.vicidbs.com 11. SPARE PARTS LIST SPARE PARTS FOR GC AND GT MODELS PART NUMBER GC Models are Zero Air generators; GT Models are Ultra Zero Air generators * Included in annual maintenance kit for GC...
