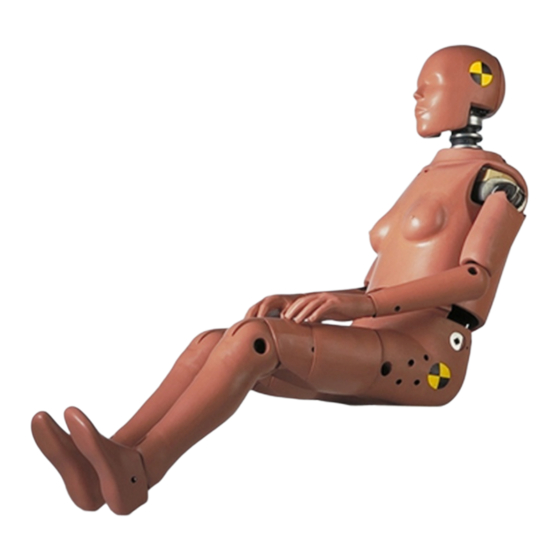

Summary of Contents for Humanetics Hybrid III 5th Female

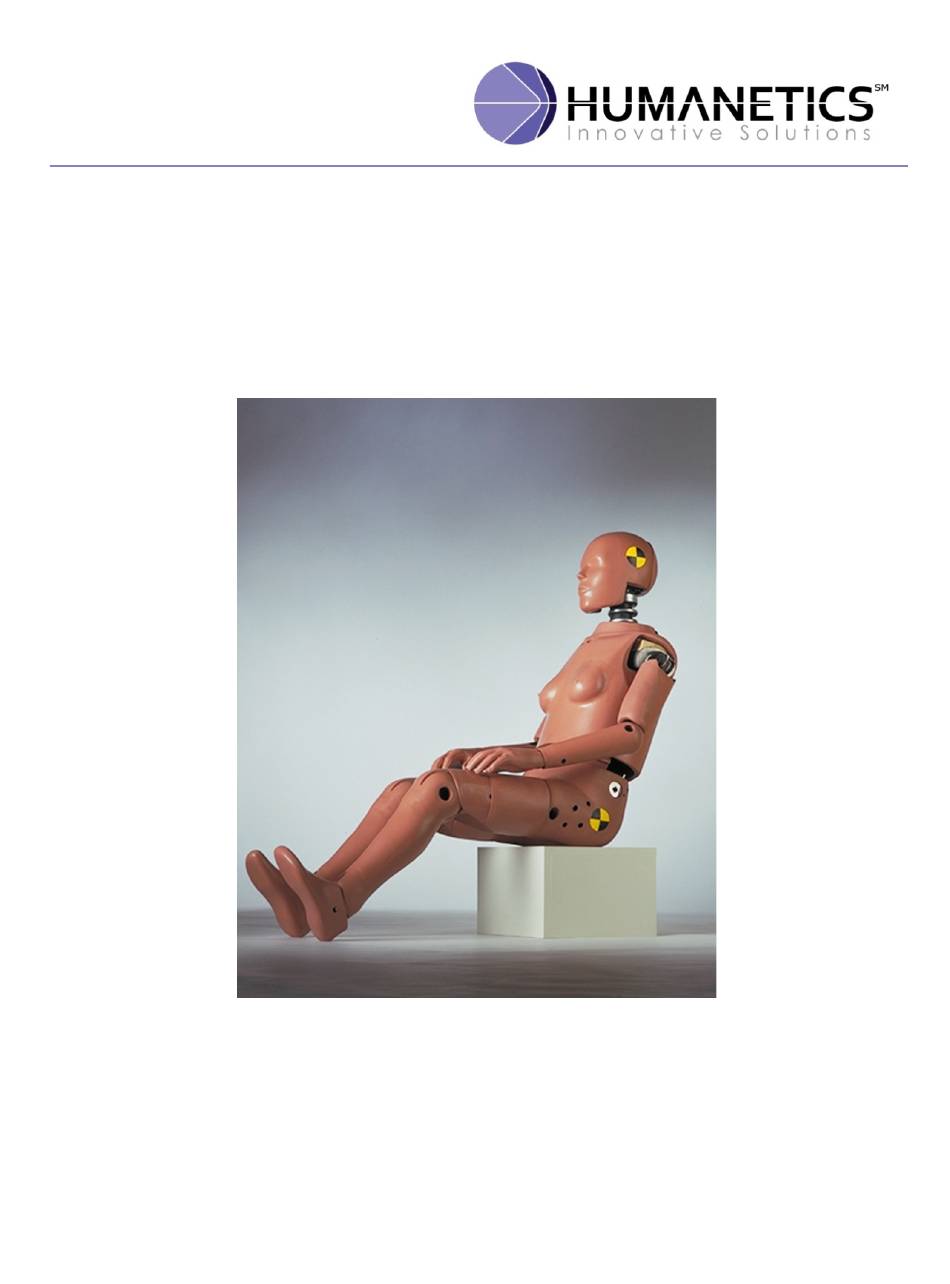

- Page 1 Hybrid III 5 Female User Manual 880105-000-XH 880105-9900 User Manual Hybrid III 5 Female Rev G Page 1 of 86 © 2020 Humanetics Innovative Solutions...
- Page 2 Notice: This product may contain lead A list of components that may contain lead is being maintained on the Humanetics web site. The list, organized by dummy type, shows subcomponents that may currently or in the past have contained lead or a lead-based alloy.
-
Page 3: Table Of Contents
8.6 Lower Leg Inspection ........................46 8.7 Ankle Disassembly ........................... 48 8.8 Ankle Reassembly ..........................48 8.9 Ankle Inspection ..........................48 8.10 Instrumented Leg Disassembly ...................... 49 880105-9900 User Manual Hybrid III 5 Female Rev G Page 3 of 86 © 2020 Humanetics Innovative Solutions... - Page 4 11.3.1 Joint Adjustment Procedures ....................84 11.4 Appendix D ............................. 85 11.4.1 Axial Integrity of the Neck ......................85 11.5 Appendix E ............................. 85 880105-9900 User Manual Hybrid III 5 Female Rev G Page 4 of 86 © 2020 Humanetics Innovative Solutions...
- Page 5 Figure 10.6- Ankle/Foot Reference Planes ....................77 Figure 10.7- Torso Flexion Bracket Assembly .................... 79 Figure 10.8 – Torso Flexion Test Setup ...................... 80 880105-9900 User Manual Hybrid III 5 Female Rev G Page 5 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 6: Section - 1 Introduction
They are performed by the dummy manufacturer on new parts. The dummy user may conduct inspection tests when a part is damaged or replaced. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 6 of 86 © 2020 Humanetics Innovative Solutions... -
Page 7: Abbreviations
SHCS………………………….Socket Head Cap Screw FHCS………………………….Flat Head Cap Screw BHCS………………………….Button Head Cap Screw SHSS………………………….Socket Head Shoulder Screw SSCP………………………….Socket Screw, Cup Point RHMS…………………………Round Head Machine Screw 880105-9900 User Manual Hybrid III 5 Female Rev G Page 7 of 86 © 2020 Humanetics Innovative Solutions... -
Page 8: Construction
MIL-S-21711E. Each shoe weighs 0.41 ± 0.09 kg (.9 ± 0.2 lb). To make it easier to put the shoe on the dummy, the shoe should be cut to extend the tongue. Talc may also be applied to the foot. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 8 of 86 © 2020 Humanetics Innovative Solutions... -
Page 9: Instrumentation
Table 1.1 – Instrumentation * The load cell part numbers listed in the table are for 350 ohm’s. 120 ohm’s load cells are also available. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 9 of 86 © 2020 Humanetics Innovative Solutions... -
Page 10: Figure 1.1 - Accelerometer Location In Dummy
1200056 PELVIC ACCELEROMETER MOUNT 9000490 SCREW, SHCS 3/8-16 X 3/4 9000624 SCREW, SHCS #10-24 X 1/2 Table 1.2- Accelerometer Location Parts List 880105-9900 User Manual Hybrid III 5 Female Rev G Page 10 of 86 © 2020 Humanetics Innovative Solutions... -
Page 11: Special Tools
Neck compression tool Ball hex wrench set Lumbar cable nut wrench Pelvis angle measurement tool Chest depth gauge 880105-9900 User Manual Hybrid III 5 Female Rev G Page 11 of 86 © 2020 Humanetics Innovative Solutions... -
Page 12: Section 2 - Head And Neck Removal
(Item 12, Figure 3.1). When disassembling the head, the load cell can remain in the head. Loosen the two set screws (Item 11, Figure 3.1) that hold the pivot pin. Figure 2.1- Disassembling the Head and Neck 880105-9900 User Manual Hybrid III 5 Female Rev G Page 12 of 86 © 2020 Humanetics Innovative Solutions... -
Page 13: Figure 2.2 - Neck Compression Tool
Do not confuse the brass washers with any others; they are trimmed for the proper fit of this joint. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 13 of 86 © 2020 Humanetics Innovative Solutions... -
Page 14: Reassembly
Reattach the upper neck bracket to the lower neck bracket. 2.3 Inspection Check for tears or breaks in the neck. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 14 of 86 © 2020 Humanetics Innovative Solutions... -
Page 15: Section 3- Head Assembly
SCREW, SHCS #10-24 X 3/8 (REF) 9000452 SCREW, SSCP #8-32 X 1/4 780951-339 PIVOT PIN, NECK TRANDUCER Table 3.1 - Head Assembly (880105-100X) Part List 880105-9900 User Manual Hybrid III 5 Female Rev G Page 15 of 86 © 2020 Humanetics Innovative Solutions... -
Page 16: Disassembly
Check the skull for cracks or dents. Replace the skull if structurally damaged in any way. Figure 3.2 – Side view of head skin with filled chin 880105-9900 User Manual Hybrid III 5 Female Rev G Page 16 of 86 © 2020 Humanetics Innovative Solutions... - Page 17 Figure 3.3 – Bottom of head skin with filled chin 880105-9900 User Manual Hybrid III 5 Female Rev G Page 17 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 18: Section 4 - Neck Assembly
Figure 4.1 is an exploded view of the Neck Assembly. Table 4.1 gives a general description of each item. Figure 4.1 – Neck Assembly 880105-9900 User Manual Hybrid III 5 Female Rev G Page 18 of 86 © 2020 Humanetics Innovative Solutions... -
Page 19: Disassembly
With the joint removed, the neck cable (Item 6, Figure 4.1) can be pulled out of the neck. Remove the cable bushings (Items 4 and 7, Figure 4.1) from each end of the cable. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 19 of 86 © 2020 Humanetics Innovative Solutions... -
Page 20: Reassembly
If they are not tightly wound, or the cable seems larger in diameter on one end, replace the cable. If the cable cannot be properly torqued, replace the cable. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 20 of 86 © 2020 Humanetics Innovative Solutions... -
Page 21: Section 5 - Upper Torso Assembly
Figures 5.1, 5.2 and 5.3 show the Upper Torso Assembly views. Table 5.1 gives a general description of each item. Figure 5.1 – Upper Torso Front View 880105-9900 User Manual Hybrid III 5 Female Rev G Page 21 of 86 © 2020 Humanetics Innovative Solutions... -
Page 22: Figure 5.2 - Upper Torso Front View
Figure 5.2 – Upper Torso Front View 880105-9900 User Manual Hybrid III 5 Female Rev G Page 22 of 86 © 2020 Humanetics Innovative Solutions... -
Page 23: Figure 5.3- Upper Torso Side View
RIB NO. 1 ASSEMBLY 880105-361-1 RIB NO. 2 ASSEMBLY 880105-361-2 RIB NO. 3 ASSEMBLY 880105-361-3 RIB NO. 4 ASSEMBLY 880105-361-4 RIB NO. 5 ASSEMBLY 880105-361-5 880105-9900 User Manual Hybrid III 5 Female Rev G Page 23 of 86 © 2020 Humanetics Innovative Solutions... -
Page 24: Disassembly
5.3). With the screws from the front and rear of the rib set removed, each rib can be pulled away from the thorax. As the ribs are pulled away, it will be necessary to pull them open. However, do not open them so 880105-9900 User Manual Hybrid III 5 Female Rev G Page 24 of 86 © 2020 Humanetics Innovative Solutions... -
Page 25: Reassembly
Reattach the arm assemblies to the upper torso. The sternum and spine box accelerometers must all have the same seismic mass location as shown in Figure 1.1. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 25 of 86 © 2020 Humanetics Innovative Solutions... -
Page 26: Inspection
Be sure that when gluing them into position, they do not interfere with the chest deflection transducer assembly. Figure 5.4- Chest Depth Gage (880105-811) 880105-9900 User Manual Hybrid III 5 Female Rev G Page 26 of 86 © 2020 Humanetics Innovative Solutions... -
Page 27: Figure 5.5- Chest Depth Gage (880105-813)
Figure 5.5- Chest Depth Gage (880105-813) 880105-9900 User Manual Hybrid III 5 Female Rev G Page 27 of 86 © 2020 Humanetics Innovative Solutions... -
Page 28: Figure 5.6- Chest Depth Measurement Setup
Figure 5.6- Chest Depth Measurement Setup 880105-9900 User Manual Hybrid III 5 Female Rev G Page 28 of 86 © 2020 Humanetics Innovative Solutions... -
Page 29: Figure 5.7- Chest Deflection Transducer Assembly
SCREW, SHCS 5/16-18 x ½ 9000031 SCREW, SHCS #10-24 X 5/16 NYLOCK JAM NUT (SUPPLIED WITH POTENTIOMETER) Table 5.2- Chest Deflection Transducer Assembly (880105-1080) Parts List 880105-9900 User Manual Hybrid III 5 Female Rev G Page 29 of 86 © 2020 Humanetics Innovative Solutions... -
Page 30: Chest Deflection Disassembly
Replace the accelerometers if needed. Place the thorax on the lower torso, and attach using the four fasteners to the lumbar spine mount assembly. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 30 of 86 © 2020 Humanetics Innovative Solutions... -
Page 31: Chest Deflection Inspection
1050), make sure it can be moved back to within 13 mm (1/2 inch) of the sternum stops without contacting the spine weldment. See Figure 5.8. Figure 5.8- Transducer Arm Clearance Check 880105-9900 User Manual Hybrid III 5 Female Rev G Page 31 of 86 © 2020 Humanetics Innovative Solutions... -
Page 32: Shoulder Assembly
5.7 Shoulder Assembly Figure 5.9 shows the Shoulder Assembly. Table 5.3 gives a general description of each item. Figure 5.9- Shoulder Assembly Exploded View 880105-9900 User Manual Hybrid III 5 Female Rev G Page 32 of 86 © 2020 Humanetics Innovative Solutions... -
Page 33: Shoulder Disassembly
#6-32 x 1/2 Nylok® SHCS (Item 18). The steel stop is used with the stop assembly to limit the range of motion of the arm. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 33 of 86 © 2020 Humanetics Innovative Solutions... -
Page 34: Shoulder Reassembly
Because it is rubber, check the stop assembly for damage and replace it if necessary. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 34 of 86 © 2020 Humanetics Innovative Solutions... -
Page 35: Section 6 - Lower Torso Assembly
Figure 6.1 represents the exploded view of the lower torso. Table 6.1 is a list of general part descriptions. Figure 6.1 – Lower Torso Front View 880105-9900 User Manual Hybrid III 5 Female Rev G Page 35 of 86 © 2020 Humanetics Innovative Solutions... -
Page 36: Figure 6.2- Lower Torso Side View
Figure 6.2- Lower Torso Side View Figure 6.3 – Lower Torso Top View 880105-9900 User Manual Hybrid III 5 Female Rev G Page 36 of 86 © 2020 Humanetics Innovative Solutions... -
Page 37: Lumbar Disassembly
The lumbar spine cable nut should not be left torqued when the dummy is in storage. This will cause permanent deformation to the spine. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 37 of 86 © 2020 Humanetics Innovative Solutions... -
Page 38: Pelvis Disassembly
To find the ‘H’ Point on the Hybrid III small female pelvis, measure forward from the Square Hole center (toward the dummy’s front) 68 mm (2.69 in) and down 59 mm (2.33 in) toward the seating surface. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 38 of 86 © 2020 Humanetics Innovative Solutions... -
Page 39: Figure 6.4- Lumbar Spine Assembly
SCREW, SHCS 5/16-18 X .62 (REF) 9000476 SCREW, SHCS 5/16-18 X .87 (REF) 880105-405 LUMBAR THORACIC ADAPTOR (REF) Table 6.2- Lumbar Spine Assembly (880105-1096) Parts List 880105-9900 User Manual Hybrid III 5 Female Rev G Page 39 of 86 © 2020 Humanetics Innovative Solutions... -
Page 40: Pelvis Reassembly
Note: The “Square Hole” is provided to allow insertion of a Pelvic Angle Gage (78051-532) to measure the angle of the pelvis. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 40 of 86 © 2020 Humanetics Innovative Solutions... -
Page 41: Section 7- Arm Assembly
UPPER ARM, LOWER PART 9000079 SCREW, SHCS 3/8-16 X 1.00 9000248 SCREW, SHSS 5/16 X 1-1/4 9000074 SCREW, SHSS 3/8 X 1.00 880105-9900 User Manual Hybrid III 5 Female Rev G Page 41 of 86 © 2020 Humanetics Innovative Solutions... -
Page 42: Disassembly
Check the washers in each elbow joint. If any washer is damaged, replace it. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 42 of 86 © 2020 Humanetics Innovative Solutions... -
Page 43: Section 8- Leg Assembly
Figure 8.1 represents the exploded view of the leg. Table 8.1 is a list of general part descriptions of the right leg. Figure 8.1- Leg Assembly Exploded View 880105-9900 User Manual Hybrid III 5 Female Rev G Page 43 of 86 © 2020 Humanetics Innovative Solutions... -
Page 44: Leg Disassembly
Check the leg for flesh rips or tears. If damaged, repair according to Appendix B. If flesh on a limb has been seriously damaged, it can be returned to the manufacturer and remolded. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 44 of 86 © 2020 Humanetics Innovative Solutions... -
Page 45: Figure 8.2- Sliding Knee Exploded View
PIN, POTENTIOMETER SHAFT 880105-516 POTENTIOMETER (REF) 9000340 SCREW, RDMS #1-72 X 5/8 (REF) Table 8.2 – Sliding Knee Assembly (880105-528R & 528L) Parts List 880105-9900 User Manual Hybrid III 5 Female Rev G Page 45 of 86 © 2020 Humanetics Innovative Solutions... -
Page 46: Lower Leg Disassembly
Check all limbs for flesh rips or tears. If damaged, repair according to Appendix B. If flesh on the knee has been seriously damaged, it can be returned to the manufacturer and remolded. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 46 of 86 © 2020 Humanetics Innovative Solutions... -
Page 47: Figure 8.3 - Ankle Assembly Exploded View
ANKLE TO LEG ATTACHMENT BOLT 9001279 SCREW, FHCS #6-32 X 1/2 9000073 SCREW, SSCP 5/16-18 x 3/8 Table 8.3 – Ankle Assembly (880105-660) Part List 880105-9900 User Manual Hybrid III 5 Female Rev G Page 47 of 86 © 2020 Humanetics Innovative Solutions... -
Page 48: Ankle Disassembly
Install the dowel pin, then the stop pin retainer in the upper ankle shell. Insert and fasten the set screws. 8.9 Ankle Inspection Check the ankle bumper (Item 12, Figure 8.1) for damage. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 48 of 86 © 2020 Humanetics Innovative Solutions... -
Page 49: Instrumented Leg Disassembly
Disconnect the connector from the transducer by lifting the sliding outer wall of the connector away from the transducer. The instrument is now free to be completely taken off the assembly. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 49 of 86 © 2020 Humanetics Innovative Solutions... -
Page 50: Instrumented Leg Reassembly
When replacing the lower tibia load cell, be aware that the load cell can be installed in two different positions. One position measures forces in the forward direction, the other measures forces in the lateral direction. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 50 of 86 © 2020 Humanetics Innovative Solutions... -
Page 51: Section 9- Calibration Tests
5. Suspend the head assembly in a manner similar to that shown in Figure 9.1. The lowest point on the forehead is 12.7 ± 1 mm (0.5 ± 0.04 in) below the lowest point on the dummy's nose 880105-9900 User Manual Hybrid III 5 Female Rev G Page 51 of 86 © 2020 Humanetics Innovative Solutions... - Page 52 10 percent of the peak resultant acceleration. 3. The lateral acceleration should not exceed 15 G's. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 52 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 53: Neck Test
Channel Class 180, and the neck rotation data channels using Channel Class 60. All filters should be phaseless. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 53 of 86 © 2020 Humanetics Innovative Solutions... - Page 54 Moment (ft·lbf) = [My (ft·lbf)] - [0.05833 ft.] [Fx (lbf)] NOTE: The formulae are based on the sign convention contained in SAE Recommended Practice J211, latest revision, Instrumentation for Impact Test. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 54 of 86 © 2020 Humanetics Innovative Solutions...
- Page 55 1.5 - 1.9 4.9 - 6.2 3.1 - 3.9 10.2 – 12.8 4.6 - 5.6 15.1 – 18.4 Table 9.2- Neck Extension Pendulum Impulse 880105-9900 User Manual Hybrid III 5 Female Rev G Page 55 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 56: Figure 9.2 - Neck Pendulum Arm Specifications
5. The maximum rotation of the D-plane of the head should be 99 to 114° with respect to the pendulum. Figure 9.2 – Neck Pendulum Arm Specifications 880105-9900 User Manual Hybrid III 5 Female Rev G Page 56 of 86 © 2020 Humanetics Innovative Solutions... -
Page 57: Figure 9.3 - Neck Extension Test Setup Specifications
Figure 9.3 – Neck Extension Test Setup Specifications Figure 9.4 – Neck Flexion Test Set-Up Specifications 880105-9900 User Manual Hybrid III 5 Female Rev G Page 57 of 86 © 2020 Humanetics Innovative Solutions... -
Page 58: Thorax Impact Test
The test set up appears in Figure 9.5. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 58 of 86 © 2020 Humanetics Innovative Solutions... - Page 59 Figure 9.6. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 59 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 60: Figure 9.5 -Thorax Impact Test Setup Specifications
Figure 9.5 -Thorax Impact Test Setup Specifications NOTE: No external support is required on the dummy to meet setup specifications 880105-9900 User Manual Hybrid III 5 Female Rev G Page 60 of 86 © 2020 Humanetics Innovative Solutions... -
Page 61: Knee Impact Test
(C) The data acquisition system, including transducers, must conform to the requirements of the latest revision of SAE Recommended Practice J211. Filter all data channels using Channel Class 600 phaseless filter. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 61 of 86 © 2020 Humanetics Innovative Solutions... - Page 62 1. The peak impact force (defined as the product of the test probe mass and the deceleration) should lie between 3.45 and 4.06 kN (776 and 913 lbf). 880105-9900 User Manual Hybrid III 5 Female Rev G Page 62 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 63: Knee Slider Test
(C) The data acquisition system, including transducers, must conform to the specifications of the latest revision of SAE Recommended Practice J211. Filter the displacement data channel using Channel Class 180. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 63 of 86 © 2020 Humanetics Innovative Solutions... - Page 64 8. Time-zero is defined as the time of initial contact between the test probe and the load distribution bracket. 9. Wait at least 30 minutes between successive tests on the same knee slider assembly. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 64 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 65: Figure 9.8 - Knee Slider Test Setup Specifications
Figure 9.8 – Knee Slider Test Setup Specifications (E) Performance Specifications – Knee Slider 1. The peak deflection should lie between 12.7 to 15.5 mm (0.50 to 0.61 in). 880105-9900 User Manual Hybrid III 5 Female Rev G Page 65 of 86 © 2020 Humanetics Innovative Solutions... -
Page 66: Section 10 - Inspection Tests
(L) Record the following dimensions. (The symbols and description for each measurement are indicated in Figure 10.1.) They should conform to the specifications listed in Table 10.1. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 66 of 86 © 2020 Humanetics Innovative Solutions... - Page 67 W - Foot Breadth: The widest part of the foot. X – Head Circumference: The circumference of the head measured at the point as in measurement “T”. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 67 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 68: Figure 10.1 - External Dimension Measurement
Z - Waist Circumference: Measured 165.1 mm ± 5.1 mm (6.5 in ± 0.20 in) above the seat surface (BB). Figure 10.1 – External Dimension Measurement 880105-9900 User Manual Hybrid III 5 Female Rev G Page 68 of 86 © 2020 Humanetics Innovative Solutions... - Page 69 ±0.09 FOOT ASSEMBLY, LEFT OR RIGHT 1.75 ±0.10 0.79 ±0.05 TOTAL DUMMY WEIGHT 108.03 ±2.50 49.01 ±1.13 Table 10.2 – Assembly Weights 880105-9900 User Manual Hybrid III 5 Female Rev G Page 69 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 70: Hip Joint Range Of Motion
± 0.3°. The pelvic instrumentation cover mounting surface, shall be perpendicular to the midsagittal plane within ± 0.3°. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 70 of 86 © 2020 Humanetics Innovative Solutions... - Page 71 1. The measured angle should be between 40° and 50°, inclusive, at an applied torque of 55 N·m (41 ft·lbf). In addition, the moment must remain below 43 N·m (32 ft·lbf) at angles up to 30°. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 71 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 72: Design Reference, Foot Test
To allow adjustment of the foot angle, two standoffs are inserted into the bolt holes in the foot weldment provided for this purpose. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 72 of 86 © 2020 Humanetics Innovative Solutions... -
Page 73: Figure 10.3 - Compression Test Setup
(relative to the test fixture) in º the transverse and longitudinal directions within ± 1 5. Wait at least 30 minutes between tests on the same foot 880105-9900 User Manual Hybrid III 5 Female Rev G Page 73 of 86 © 2020 Humanetics Innovative Solutions... -
Page 74: Design Reference, Ankle Motion Test
(D) The Data Acquisition System, including transducers, must conform to the requirements of the latest version of SAE Recommended Practice J211. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 74 of 86 © 2020 Humanetics Innovative Solutions... - Page 75 4 N·m (2.95 lbf·ft) is reached at a rate not to exceed 5º per second. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 75 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 76: Figure 10.5 - Leg Reference Planes
Figure 10.5 – Leg Reference Planes 880105-9900 User Manual Hybrid III 5 Female Rev G Page 76 of 86 © 2020 Humanetics Innovative Solutions... -
Page 77: Figure 10.6- Ankle/Foot Reference Planes
Figure 10.6- Ankle/Foot Reference Planes 880105-9900 User Manual Hybrid III 5 Female Rev G Page 77 of 86 © 2020 Humanetics Innovative Solutions... -
Page 78: Design Reference, Torso Flexion Test
-6 degrees. If the lower legs are attached, rest them on the table surface. 8. Flex the elbow joints to 90º and point the forearms laterally away from the dummy torso to clear the table. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 78 of 86 © 2020 Humanetics Innovative Solutions... -
Page 79: Figure 10.7- Torso Flexion Bracket Assembly
320 N (72 lbf) and not more than 390 N (88 lbf). Figure 10.7- Torso Flexion Bracket Assembly 880105-9900 User Manual Hybrid III 5 Female Rev G Page 79 of 86 © 2020 Humanetics Innovative Solutions... -
Page 80: Figure 10.8 - Torso Flexion Test Setup
Figure 10.8 – Torso Flexion Test Setup 880105-9900 User Manual Hybrid III 5 Female Rev G Page 80 of 86 © 2020 Humanetics Innovative Solutions... -
Page 81: Section 11 - Appendices
7. Check to see if the accelerometer case is under stress. 8. Check leads for abrasion or cuts. If the reason for the erroneous reading cannot be found, contact the accelerometer manufacturer. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 81 of 86 © 2020 Humanetics Innovative Solutions... - Page 82 If tools such as pliers are needed to handle the accelerometer, cover the jaws with masking tape to prevent unwanted metal-to-metal contact. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 82 of 86 © 2020 Humanetics Innovative Solutions...
-
Page 83: Guidelines For Repairing Flesh
The engineer running the test should approve use of additional reinforcement such as tape before conducting tests. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 83 of 86 © 2020 Humanetics Innovative Solutions... -
Page 84: Joint Adjustment Procedures
4. Adjust the ankle ball joint set screw so the foot is held suspended at one G. The ankle adjustment is not critical and is determined by individual feel. 5. Repeat procedure on other leg and foot. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 84 of 86 © 2020 Humanetics Innovative Solutions... -
Page 85: Axial Integrity Of The Neck
2. The references for this specification are Smith Fastener Company, Brake Products Inc., and C & J Fastener Inc. 880105-9900 User Manual Hybrid III 5 Female Rev G Page 85 of 86 © 2020 Humanetics Innovative Solutions... - Page 86 Rev. C, June 2008 Manual updated to FTSS standards. Rev. D, Aug. 2011 Manual changed from FTSS to Humanetics, updated order of Neck assembly parts, Figure 4.1. Rev. E, Jun. 2014 Added #9 balloon in lumbar spine assembly image. Updated Figure 5.5, 5.740 was 6.240.
