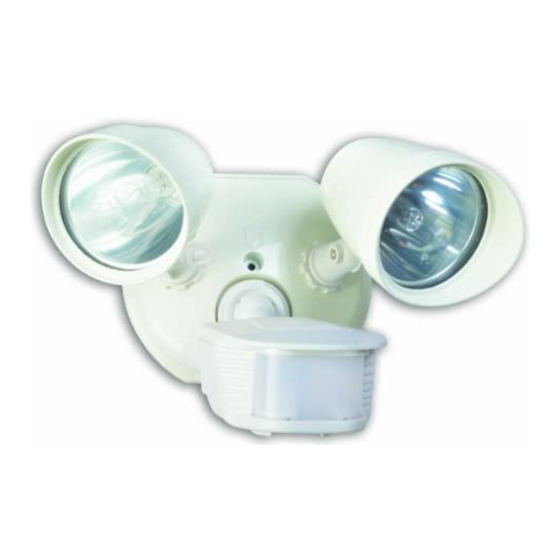

INFARED MOTION ACTIVATED
SECURITY LIGHT INSTALLTION
INSTURCTIONS
Model # L5999
10 Year Warranty on Fixture
(Does not apply to bulbs, which have no warranty)
Congratulations and Thank You! The fixture you have purchased should give you 10 years of
trouble free service. We take pride in the design and construction of each of our products
and
work to maintain the quality of our materials and craftsmanship to assure your
satisfaction.
This product is warranted to be free of defects in workmanship and materials for a period of
10 years from the original date of purchase. If any problems appear (other than burnt out
bulbs, which carry no warranty) within 10 years, the purchaser may return the item, freight
prepaid, together with a copy of your original purchase receipt to:
Advertisement
Table of Contents
Related Manuals for Designers Edge L5999
Summary of Contents for Designers Edge L5999
- Page 1 INFARED MOTION ACTIVATED SECURITY LIGHT INSTALLTION INSTURCTIONS Model # L5999 10 Year Warranty on Fixture (Does not apply to bulbs, which have no warranty) Congratulations and Thank You! The fixture you have purchased should give you 10 years of trouble free service. We take pride in the design and construction of each of our products work to maintain the quality of our materials and craftsmanship to assure your satisfaction.
- Page 2 Southwire Co. 11290 80 Ave. Pleasant Prairie, WI 53158 Upon receipt of the item prepaid with a letter describing the problem, and a check for $7.50 to cover return postage and handling, the company will, at its option, either repair or replace the defective part or fixture at no charge to the purchaser.
- Page 3 Whenever possible, locate the unit so that its coverage area is away from heat sources or re ective surfaces, such as heating vents, air conditioners, large moving trees or pools of water. Whenever possible, locate the unit so that motion moves across the coverage area, not directly towards or away from the motion sensor.
- Page 4 ARE NO USER SERVICEABLE PARTS INSIDE. See electrical wiring instructions for installation. Remark: Fill in the wall plates and mounting surface with silicone. CAUTION: Before beginning installation disconnect power to the location where the light will be installed by shutting that controls the light is not su cient to prevent electrical shock.
- Page 5 6. See diagram above: A: Using wirenuts, connect white wire from xture to white wire from house. B: Connect black wire from xture to black wire from house. C: All wirenuts installed to connect wired should be taped in place with electrical tape to assure they cannot come o accidentally at a later time.
- Page 6 TROUBLESHOOTING Lights do not come on at all: 1. Make sure the breaker for the fuse is in the on position. 2. Make sure the switch in the house is turned on. 3. Check to see there is power to the motion detector on the black and white wires from the house.
