Summary of Contents for SPAccessories Classic Lifter

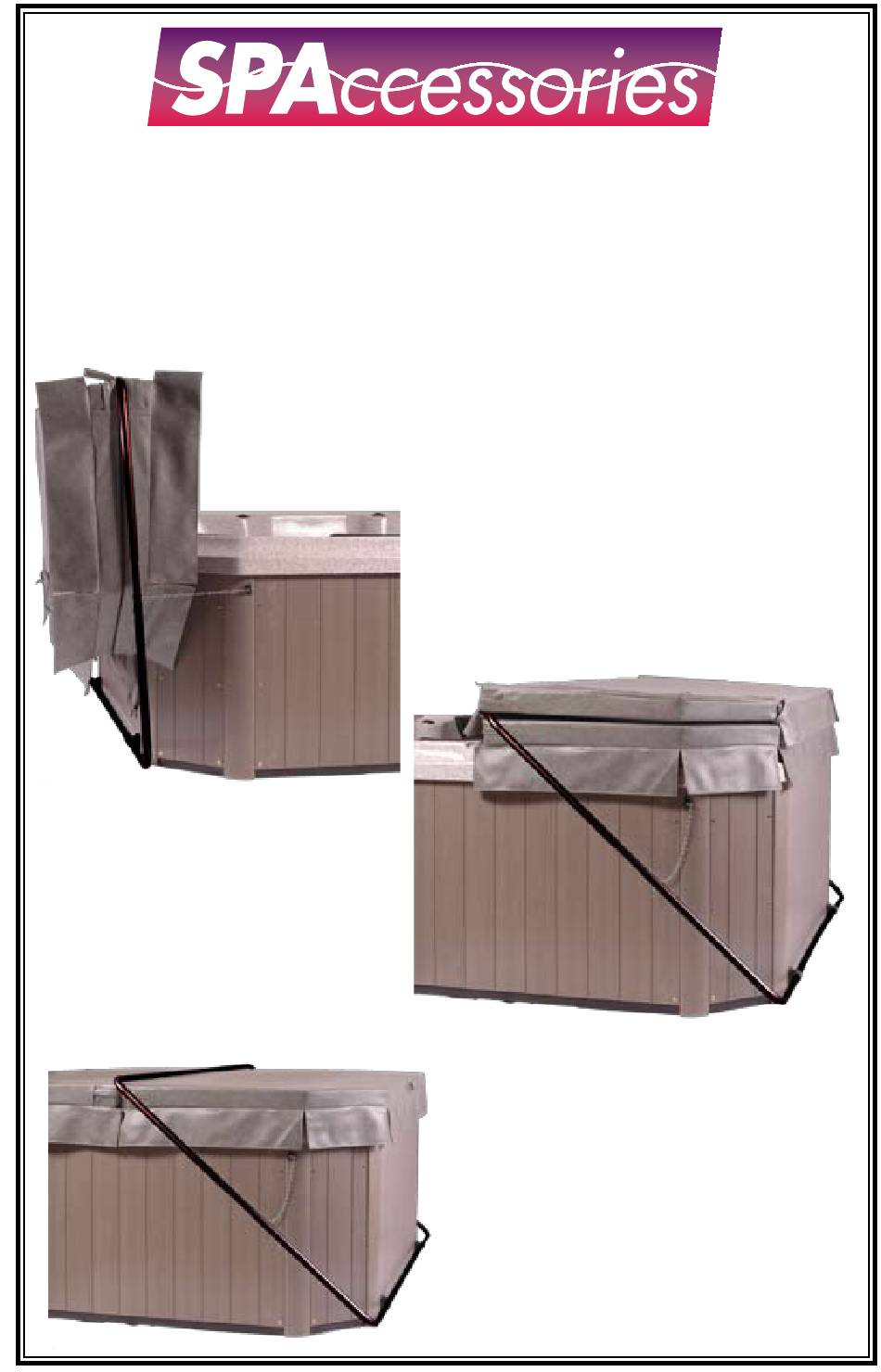

- Page 1 Spa & Hot Tub Necessities Cover Classic Lifter Installation & Use Manual...
- Page 2 The Premium Cover Lifter adjusts to fit most square/rectangular spas up to 99” in width. When assembled it forms a rectangular shape. The Premium Cover Lifter attaches to the back of the spa cabinet, either on the back wall of the cabinet or on the pedestal base. The Bridge Arm (C) lies across the spa cover parallel to the seam (hinge) of the cover and is “captured”...
- Page 3 PARTS LIST Part Description Corner Piece 42” Side Arm 59” Bridge Arm Mounting Block Retaining Chain Chain Bracket Metal Screw #10 x 5/8” Wood Screw #8 x 5/8” Wood Screw #8 x 1-1/4” Towel Holder...
- Page 4 1. Lay out the components in the shape of a rectangle as shown below (Fig A). There are 2 sets of Corner Pieces (A). They have been drilled so that the top left and bottom right are the same as are the top right and bottom left.
- Page 5 1.5” clearance between spa and inside arm of Premium Cover Lifter Mounting Blocks Fig. B 5. Next connect these two assembled pieces together with the Side Arms (B) by sliding the Side Arms into each of the four Corner Pieces as shown in Fig. A DO NOT secure with screws yet.
- Page 6 7. Mount the Mounting Blocks as wide and as low as possible. Attach the two Mounting Blocks to the cabinet pedestal or base of spa cabinet if there is no pedestal, with the 1-1/4” Wood Screws provided. NOTE: Mounting Blocks may be attached directly to deck surface or use Universal adaptor bracket available from your dealer for round, oval or octagonal spas.
- Page 7 SPAccessories’ option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by SPAccessories at one of its authorized service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.
- Page 8 Spa & Hot Tub Necessities SPAccessories, LLC. 11900 N. La Canada Dr. #69792 Tuscon, AZ 85737...
