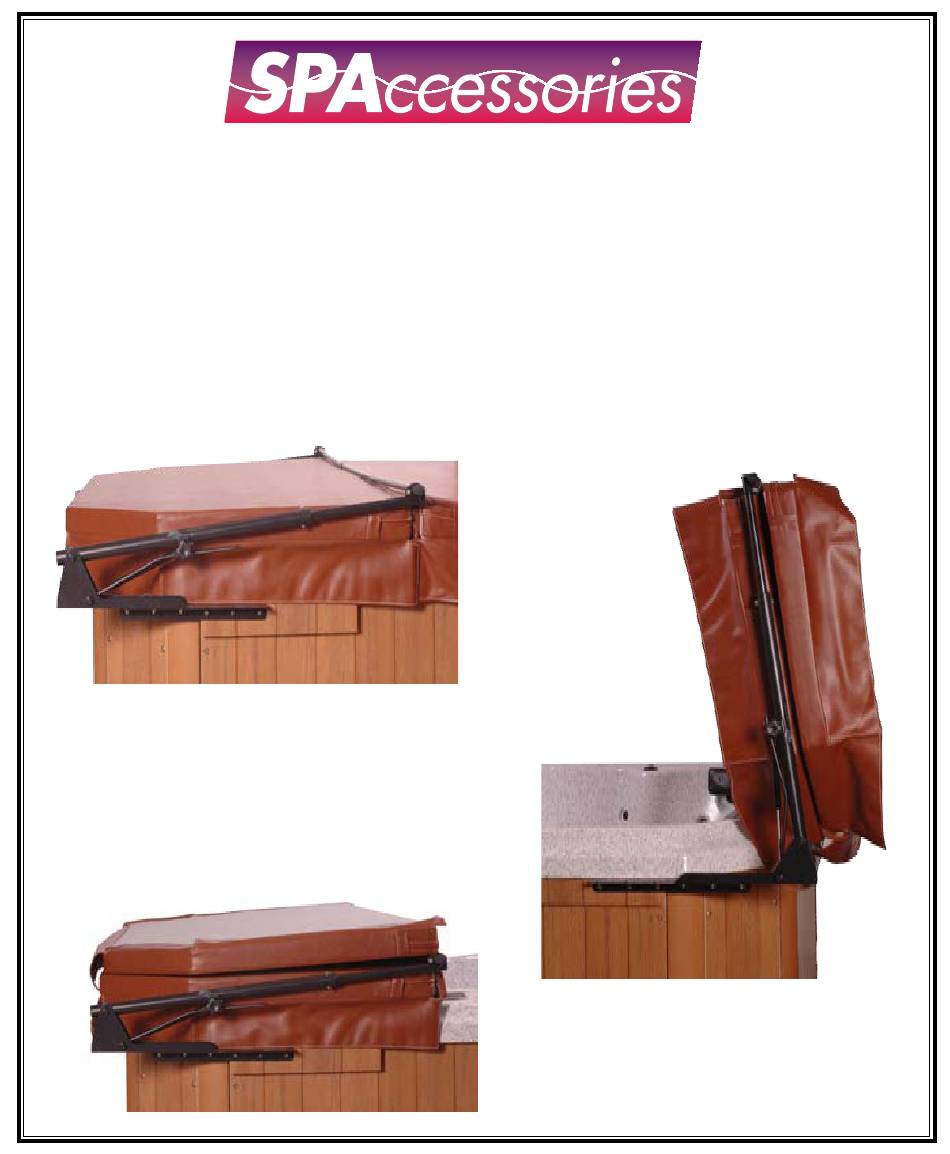

- Page 1 S p a & Hot Tub Necessities Premium Top Mount Hydraulic Cover Removal System Installation & Use Manual...
- Page 2 BEFORE YOU START: Determine whether spa will need a Top Mount or a Side Mount installation. 1. PARTS LIST 2. TOOL LIST The following parts are included in your CRS4 Cover Lift The following are needed to install your CRS4 Cover Lift. package: Two (2) Pre-assemble Pivot Assemblies Power drill with 1/4”...
- Page 3 DETERMINING WHICH TYPE OF INSTALLATION IS RIGHT FOR YOUR HOT TUB 1. PLEASE consider the following before installing your Cover Lift: Side Mount Brackets a. The Channel Bracket (pre-assembled Pivot Assembly) should be mounted 2 - 5 “ from the back edge of your hot tub. b.
- Page 4 ASSEMBLY Mounting Brackets 2 - 5” from edge Install Mounting Brackets so that when the cover is lifted it is on the side opposite the control panel of the hot tub. Measure 1-1/2” from end of cabinet edge from kitty corner flush to cut line. (fig. 1) Mark holes, on center, with marker on both sides of the hot tub.
- Page 5 ASSEMBLY D. Cover Assembly Gently place the folded Cover Lift cover on top of hot tub with the cover’s seam (fold) facing the control panel so that the flap on the cover is flush with the edge of the cabinet. Loosen the Lock Knob and pull the extension Phil-Pan Screw Arm to a horizontal position.
- Page 6 HARDWARE CHART Lock Bar Safety Tie Extension Bar Shipping Bolt Handle Bar Side Mount Brackets Lock Knob Torsion Bar Nylock Nut Spring Washers Under Hinge Bar Flat Washer Phil-Pan Screw Aluminum Clamp 3/4” Hex Bolt 1-1/4” Lag Bolt...
- Page 7 5 YEAR LIMITED WARRANTY SPAccessories warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a Limited 5 Year Warranty. This warranty extends only to the original purchaser. SPAccessories’ obligation under this warranty is limited to replacing or repairing, at SPAccessories’ option, the product at one of its authorized service centers.
- Page 8 S p a & Hot Tub Necessities 6848 S. Airport Road ~ West Jordan, UT 84084...
