- Page 1 QY-RK3288S Hardware Manual Ver.: 1.0 2017.10 Qiyang Intelligent Technology Co., Ltd Copyright Reserved...
- Page 2 QY-RK3288S Embedded Mainboard Hardware Manual Version Update Version Hardware Description Date Reviser QY-RK3288S Internal release 2017-10 Any question, please send E-mail :supports@qiyangtech.com Page 2 of 21 :trade@qiyangtech.com; sales@qiyangtech.com Sales E-mail :http://www.qiytech.com Website ©2012 Qiyangtech Copyright...
-
Page 3: Table Of Contents
Notice: This manual mainly introduce hardware interface of the mainboard..4 I. Preface ........................4 1.1 Company Profile ....................4 1.2 Suggestion for using QY-RK3288S mainboard ..........4 Ⅱ. System Composition ....................5 2.1 Chip Summary ....................5 2.2 Mainboard Resource ..................8 III. -
Page 4: Notice: This Manual Mainly Introduce Hardware Interface Of The Mainboard
I. Preface 1.1 Company Profile Zhejiang Qiyang Intelligent Technology Co., Ltd. locates at the bank of the beautiful West Lake. It is a high and new technology enterprise which is specializing in R&D, manufacture and sell embedded computer main board with high performance, low power consumption, low cost, small volume, and provides embedded hardware solutions. -
Page 5: Ⅱ. System Composition

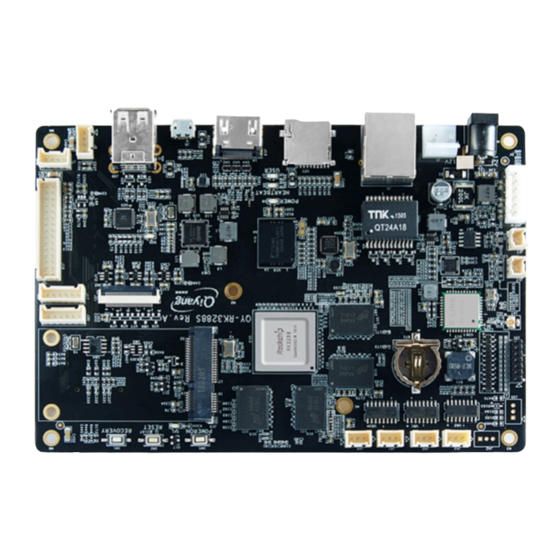

QY-RK3288S Hardware Manual 3. Please understand the basic structure and composition of QY-RK3288S, including the hardware resource allocation etc.; 4. If you need to develop on Android system and burn program into the development board, in addition to this document, we also suggest reading another document QY-RK3288S Android User Manual;... - Page 6 QY-RK3288S Hardware Manual QY-RK3288S embedded mainboard has abundant extended interfaces, and the PCB adopts 8-layer immersion gold processor, with excellent electrical characteristics, antijamming capability and well stability. Function diagram is as shown: Picture1 Quad Core Cortex-A17, CPU frequency reaches 1.8GHz;...
- Page 7 QY-RK3288S Hardware Manual OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3; Support ◆ Built-in the high-performance 2D acceleration hardware; ◆ Dual-channel 64bit DDR3-1333/DDR3L-1333/LPDDR2-1066; ◆ Support MLC NAND Flash, eMMC 4.51; ◆ Support 4K 10bits VP9/H265/H264 video decoding, speed reaches 60fps; ◆ 1080P Multi-format video decoding (VC-1, MPEG-1/2/4, VP8)；...
-
Page 8: Mainboard Resource
QY-RK3288S Hardware Manual 2.2 Mainboard Resource RockChip RK3288 processor, Cortex-A17 Quad Core, Frequency reaches 1.8GHz Mali-T764 GPU, Support AFBC(Frame Buffer Compression) DDR3 SDRAM，4*256MB, Total 2GB. Flash 8GB EMMC AR8035 Network Chip, adopts RGMII mode, perfectly support Network 10M/100M/1000M, ethernet interface adaptable... -
Page 9: Interface Functions
QY-RK3288S Hardware Manual Chart Size 156mm*106mm Layer 8-layer high precision immersion gold process Power ≤3W Consumption -20 ℃ ~ +70 ℃ (Could be customized to industrial level Operation Temperature temperature) Operation 5%~95%, Non-Condensing Humidity III. Interface Functions Picture 2 Any question, please send E-mail :supports@qiyangtech.com... -
Page 10: Basic Interface Function Description
QY-RK3288S Hardware Manual 3.1 Basic Interface Function Description: Lable Function Power switch interface +12V power input interface 4pin USB 4pin USB mini USB Gigabit Ethernet Loudspeaker output MIC audio input standard HDMI MINI-PCIE LVDS Backlight power supply interface MIPI camera interface Capacitive touch(I2C&GPIO) -
Page 11: Interface Pin Definition
QY-RK3288S Hardware Manual Antenna interface TF card slot RTC power supply(+3.0V) Restore( for burning) System reset button Power reset button Interface pin definition J6: 4Pin USB interface Signal Name +5.0VD USB3_D- USB3_D+ J7: 4Pin USB interface Signal Name +5.0VD USB4_D-... - Page 12 QY-RK3288S Hardware Manual J12: MIC audio input Signal Name MIC_IN1P MIC_IN1N J15: MINI_PCIE interface Signal Name Signal Name 4G_WAKEUP_HOST VCC_PCIE SIM_VDD SIM_DATA SIM_CLK SIM_RST PCIE_DISEN PCIE_RST VCC_PCIE HOST1_DM Any question, please send E-mail :supports@qiyangtech.com Page 12 of 21 :trade@qiyangtech.com; sales@qiyangtech.com Sales E-mail :http://www.qiytech.com...
- Page 13 QY-RK3288S Hardware Manual HOST1_DP VCC_PCIE VCC_PCIE GLED VCC_PCIE J16: LVDS Signal Name Signal Name LVDS_D0- LVDS_D0+ LVDS_D1- LVDS_D1+ LVDS_D2- LVDS_D2+ VDS_CLK0- LVDS_CLK0+ LVDS_D3+ LVDS_D3+ LVDS_D5- LVDS_D5+ LVDS_D6- LVDS_D6+ LVDS_D7- LVDS_D7+ LVDS_CLK1- LVDS_CLK1+ LVDS_D8- LVDS_D8+ LVDS_PWM LVDS_BLEN VCC_LVDS VCC_LVDS VCC_LVDS Any question, please send E-mail :supports@qiyangtech.com...
- Page 14 QY-RK3288S Hardware Manual J17: Backlight power supply interface Signal Name VCC_12V0 VCC_12V0 VCC_5V0 BL_PWM J21: MIPI camera interface（30Pin FPC） Signal Name VCC_28_DVP VCC_12_DVP VCC_18_DVP AVDD28_DVP MIPI_SDA MIPI_SCL MIPI_RST MIPI_PDN MIPI_MCLK0 Any question, please send E-mail :supports@qiyangtech.com Page 14 of 21 :trade@qiyangtech.com;...
- Page 15 QY-RK3288S Hardware Manual MIPI_RX_D3P MIPI_RX_D3N MIPI_RX_D2P MIPI_RX_D2N MIPI_RX_D1P MIPI_RX_D1N MIPI_RX_CLKP MIPI_RX_CLKN MIPI_RX_D0P MIPI_RX_D0N J30: Capacitive touch interface Signal Name VCC_IO I2C4_SDA_TP I2C4_SCL_TP TP_RST TP_INT BL_PWM Any question, please send E-mail :supports@qiyangtech.com Page 15 of 21 :trade@qiyangtech.com; sales@qiyangtech.com Sales E-mail :http://www.qiytech.com Website ©2012 Qiyangtech...
- Page 16 QY-RK3288S Hardware Manual J31: 2*6 GPIO Signal Name Signal Name GPIO5_B2_U GPIO5_B3_U GPIO5_B4_U GPIO5_B5_U GPIO5_C0_U GPIO5_C1_U GPIO5_C2_U GPIO5_C3_U GPIO8_A0_U GPIO8_A1_U GPIO8_A2_U GPIO8_A3_U J35: KEYIO interface Signal Name SWLED_PWR KEY_IO J40: UART3 (3Pin RS232) Signal Name COM3_TXD COM3_RXD J41: UART1 (3Pin RS232)
- Page 17 QY-RK3288S Hardware Manual COM1_RXD J42: UART0 (3Pin RS232) Signal Name COM0_TXD COM0_RXD J43: UART4 (3Pin RS232) Signal Name COM4_TXD COM4_RXD J44: Debug UART (3Pin RS232) Signal Name DBG_TXD DBG_RXD Any question, please send E-mail :supports@qiyangtech.com Page 17 of 21 :trade@qiyangtech.com; sales@qiyangtech.com Sales E-mail :http://www.qiytech.com...
-
Page 18: Mainboard Function Illustraion
QY-RK3288S Hardware Manual IV. Mainboard Function Illustration To be completed later. V. Structure & Size Chart Any question, please send E-mail :supports@qiyangtech.com Page 18 of 21 :trade@qiyangtech.com; sales@qiyangtech.com Sales E-mail :http://www.qiytech.com Website ©2012 Qiyangtech Copyright... -
Page 19: Ⅵ. Software Description
Hardware Manual Ⅵ. Software Description QY-RK3288S provides the software support for Android OS. The QY-RK3288S User Manual will introduce the QY-RK3288S mainboard’s setting up and using in Android developing environment. The detailed content could refer to the relative documentation. Ⅶ. Remark 1. - Page 20 ●Damage of force majeure. 6. We reserve intellectual property for the software and hardware technical data of QY-RK3288S; users can only use them for teaching, testing, researching. Shall not be engaged in any commercial purpose. Shall not distribute them on the Internet. Shall not intercept, modify them to tamper copyright.
- Page 21 QY-RK3288S Hardware Manual Zhejiang Qiyang Intelligent Technology Co., Ltd Tel: 86-571-87858811 / 87858822 Fax: 86-571-89935912 Technology Support: 86-571-89935913 E-MAIL: supports@qiyangtech.com Website: http://www.qiytech.com Address: 5F, Building 3A, NO.8 Xiyuanyi Road, West Lake Science Park, Hangzhou, China Post Code: 310030 Any question, please send E-mail :supports@qiyangtech.com...
