nimlok compact Pop-Up Setup Instructions page 4

Display and exhibition systems

Advertisement

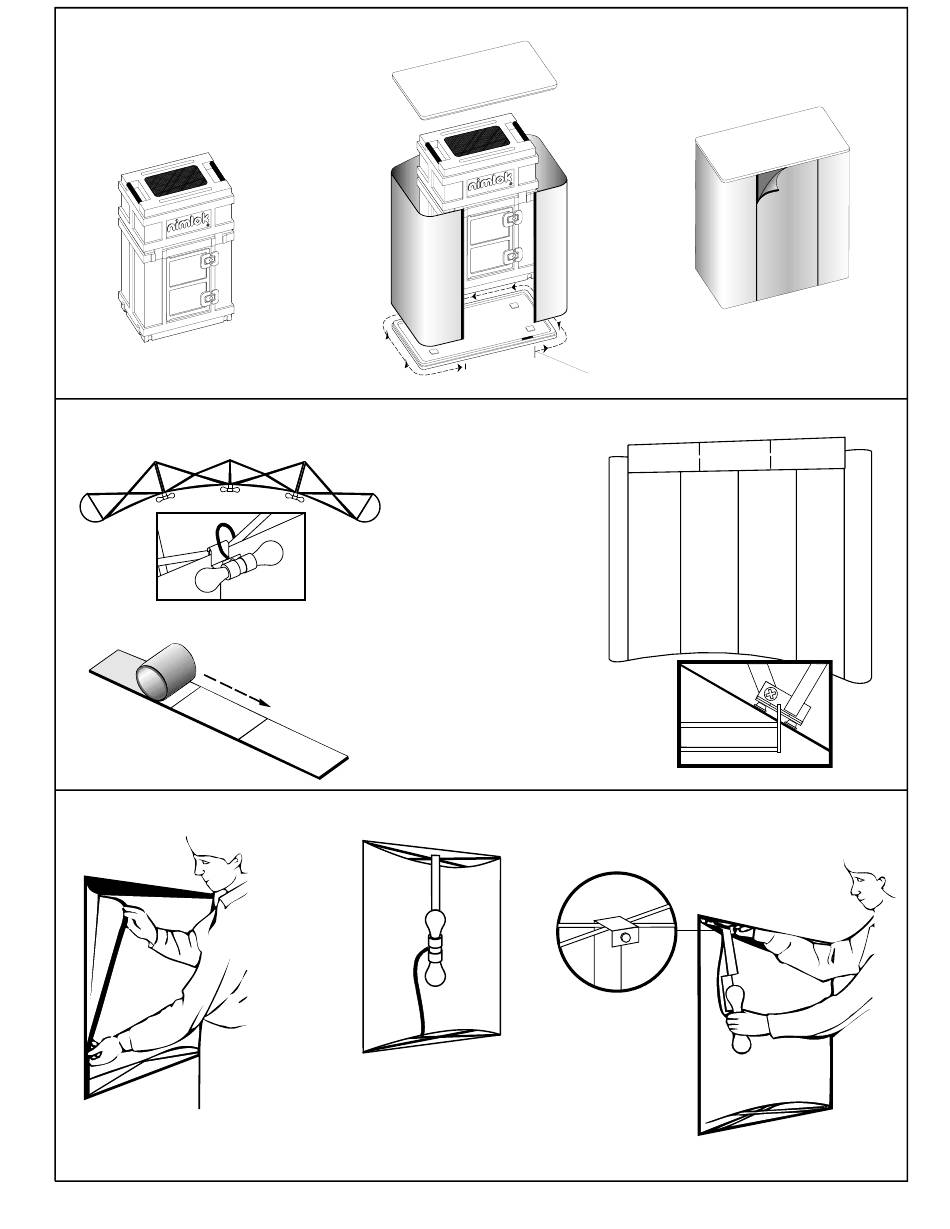

CCK2 CASE-TO-COUNTER CONVERSION
ASSEMBLING LIGHTED HEADERS
LIGHT BOX ASSEMBLY
1) Attach Double-Bulb
Fixture to the inside Frame
hubs.
2) Assemble Header Frame,
then roll on Lexan graphic overlay.
3) Hang Header on 'H' hooks
located on the outside Frame hubs.
1) Attach Light Box backer.
2) Secure Light Fixture by
tightening the thumb screw
on the hanging Fixture.
Start Case-To-Counter Outer Panel here.
