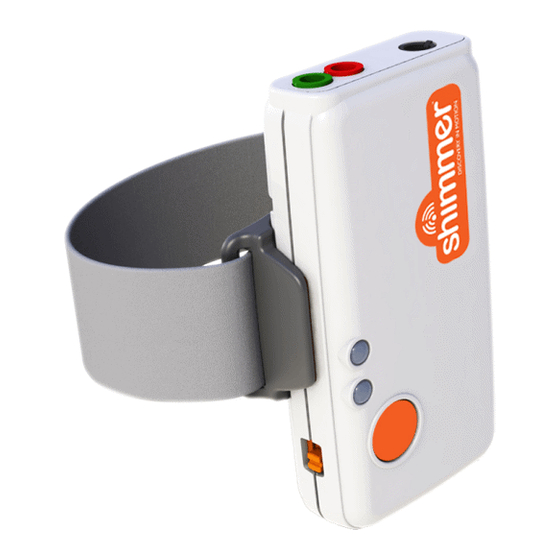

Shimmer 3 User Manual
Hide thumbs Also See for 3:

Advertisement

Quick Links

Copyright © Shimmer 2017
Realtime Technologies Ltd
Shimmer User Manual
All rights reserved
Rev3p
Shimmer User Manual
Revision 3p
1
