Getting Started
with Shimmer3
Streaming to
Android
March 2015
Copyright © Shimmer, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Shimmer 3

Summary of Contents for Shimmer 3

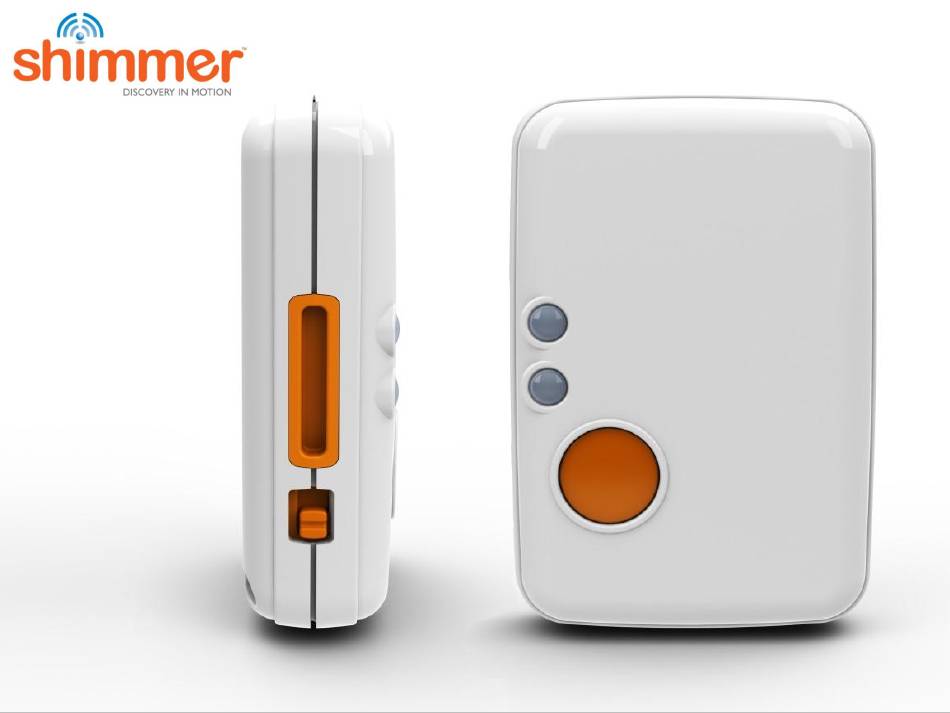

  • Page 1 Getting Started with Shimmer3 Streaming to Android March 2015 Copyright © Shimmer, 2015...

  • Page 2: Table Of Contents

    ONTENTS 1. Request website membership 2. Compatible Firmware 3. Install ShimmerCapture 4. Configure ShimmerCapture 5. Pairing the Shimmer over Bluetooth 6. Connect to ShimmerCapture 7. Configure the Shimmer 8. Configure Graphing Options 9. Stream Data 10. Further Information...

  • Page 3: Request Website Membership

    EQUEST WEBSITE MEMBERSHIP IMPORTANT: To access the download and documentation sections on our website you need to request website membership at: http://www.shimmersensing.com/shimmer-website-membership/redirected.

  • Page 4: Compatible Firmware

    Getting Started with Shimmer3 - Streaming to PC guide, in particular: • Configure the Shimmer Dock. • Programming the Shimmer. The Getting Started with Shimmer3 - Streaming to PC guide can be found on the Shimmer Getting Started webpage * http://www.shimmersensing.com/support/getting-started/...

  • Page 5: Install Shimmercapture

    NSTALL HIMMER APTURE Go to the Play Store and download ShimmerCapture* * https://play.google.com/store/apps/details?id=com.shimmersensing.shimmerconnect&hl=en...

  • Page 6: Configure Shimmercapture

    ONFIGURE HIMMER APTURE If asked to turn on Bluetooth, select Yes. Follow the steps below to choose a file to which data will be written and enable logging (if required).

  • Page 7: Pairing The Shimmer Over Bluetooth

    AIRING THE HIMMER OVER LUETOOTH Choose Menu → Connect. If the Shimmer you wish to connect to has not been paired, select Scan for Devices. The PIN is 1234. When the PIN has been entered, click OK.

  • Page 8: Connect To Shimmercapture

    ONNECT TO HIMMER APTURE Choose Menu → Connect. Select the Shimmer you wish to connect to. Some feedback will briefly be displayed during the connection process, as shown below.

  • Page 9: Configure The Shimmer

    ONFIGURE THE HIMMER Choose Menu → Enable Sensors. Enable desired sensors. Other configuration options (sensor ranges, sampling rate, etc.) can be found in Menu → Shimmer Configuration.

  • Page 10: Configure Graphing Options

    ONFIGURE RAPHING PTIONS Choose Menu → Signals to Graph. Choose Signals To Graph (one type of sensor can be plotted at a time to avoid performance degradation). Graph history length can be configured via Menu → Graph Configuration.

  • Page 11: Stream Data

    TREAM Choose Menu → Start Streaming. The signals that appear on the graph may be changed during streaming. To stop streaming, choose Menu → Start Streaming. Choose Menu → Disconnect before powering off the Shimmer units.

  • Page 12: Further Information

    NFORMATION Check out the documentation section on our website, which includes user manuals and guides for all Shimmer hardware and software. It is highly recommended that all new Shimmer users read the Shimmer User Manual, available for download from www.shimmmersensing.com.
