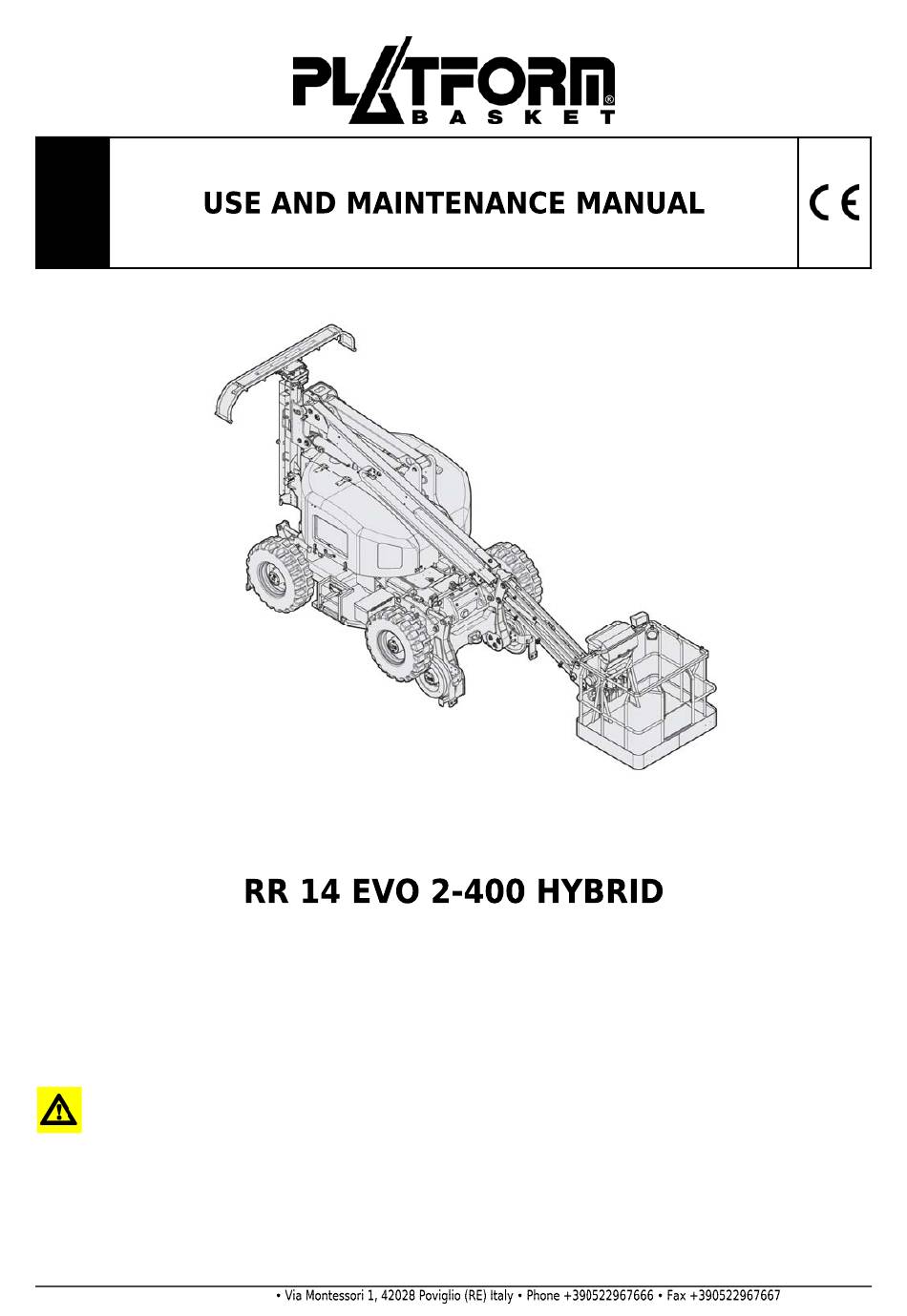

PLATFORM BASKET RR 14 EVO 2-400 Hybrid Use And Maintenance Manual

Aerial work platform
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ENG
Aerial work platform
Translation of the original instructions
4528576300.0
Logbook code:
15/02/2018
Version:
Edition: 30/11/2019
Caution
Before proceeding with all operations, it is necessary to read and understand this manual in all its parts.
This manual must be stored for the entire life of the machine, in a location that is accessible to all machine
operators and maintenance staff.
PLATFORM BASKET S.r.l.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RR 14 EVO 2-400 Hybrid and is the answer not in the manual?

Questions and answers

Related Manuals for PLATFORM BASKET RR 14 EVO 2-400 Hybrid

Summary of Contents for PLATFORM BASKET RR 14 EVO 2-400 Hybrid

  • Page 1 Aerial work platform Translation of the original instructions 4528576300.0 Logbook code: 15/02/2018 Version: Edition: 30/11/2019 Caution Before proceeding with all operations, it is necessary to read and understand this manual in all its parts. This manual must be stored for the entire life of the machine, in a location that is accessible to all machine operators and maintenance staff.
  • Page 3 Via Montessori, 1 - 42028 Poviglio (RE) - Tel: +39 0522967666 - Fax: +39 0522967667 www.platformbasket.com Document type: USE AND MAINTENANCE MANUAL Model: RR 14 EVO 2-400 Hybrid Serial number: Client: Year of manufacture: ULTIMO BRANO TABELLA The contents of the present document cannot be used, reproduced or transferred to third parties without the express permission of builder.
  • Page 4 4/150...

  • Page 5: Table Of Contents

    3.2. OVERALL DIMENSIONS 3.3. - RR 14 EVO 2-400 Hybrid WORKFLOW CHART 3.3.1. STABILIZATION ON ROAD WITH LOAD IN THE 80 - 400 kg BASKET 3.3.2. STABILIZATION ON TRACKS WITH LOAD IN THE 80 - 400 kg BASKET 3.3.3. SHIFTING ON TRACKS WITH LOAD IN BASKET 80 - 300 kg 3.3.4.
  • Page 6 RR 14 EVO 2-400 HYBRID 4.5. QUALIFICATION OF OPERATING PERSONNEL 4.6. PERSONNEL TRAINING 4.7. OPERATOR TRAINING 4.8. TRAINING SUPERVISION 4.9. OPERATOR’S RESPONSIBILITIES 4.10. WORKING CLOTHES 4.11. WORK AREAS 4.12. CONTROLS 4.13. OPERATING POSITIONS 4.13.1. EMERGENCY STOP 4.14. RESIDUAL RISKS AND RULES OF CONDUCT 4.15.
  • Page 7 RR 14 EVO 2-400 HYBRID 8.4. LOADING AND UNLOADING BY RAMP 8.5. LIFT 9.1. FOREWORD 9.2. START/STOP ENGINE 9.2.1. MAIN ENGINE START 9.2.2. STOP MAIN ENGINE 9.2.3. AUXILIARY ENGINE START 9.2.4. AUXILIARY ENGINE STOP 9.3. SHIFTING 9.3.1. STEERING METHOD 9.3.2. TRAVELLING ON RUBBER TYRES 9.3.3.
  • Page 8 RR 14 EVO 2-400 HYBRID 11.6. INSPECTION, CHECK AND MAINTENANCE OF THE RAILWAY WHEELS 11.7. PREPARING THE MACHINE FOR MAINTENANCE 11.8. CLEANING 11.8.1. CLEANING THE DATAPLATES AND INDICATOR LIGHTS 11.9. GREASING 11.9.1. GREASING POINTS DIAGRAM 11.10. LUBRICATION 11.11. HYDRAULIC OIL LEVEL CHECK 11.12.

  • Page 9: General Information

    This manual lists information relating to the RR 14 EVO 2-400 Hybrid model only. Caution In this publication, the term machine refers to the RR 14 EVO 2-400 Hybrid elevating platform. Note The company PLATFORM BASKET S.r.l. is referred to as the Manufacturer.

  • Page 10: Topics Not Covered By The Manual

    RR 14 EVO 2-400 HYBRID 1.4. TOPICS NOT COVERED BY THE MANUAL This publication DOES NOT address the following subjects: ‒ Maintenance or non-routine interventions. Non-routine maintenance tasks must be performed by personnel specifically authorised by the manufacturer. ‒ The installation and disassembly of the machine or its function units.

  • Page 11: User Or Machine Operator

    RR 14 EVO 2-400 HYBRID 1.7.1. USER OR MACHINE OPERATOR The professional staff that uses or intervenes on the machine is liable for any damage to himself, third parties or objects deriving from: ‒ improper use of the machine and any part of the machine.

  • Page 12: Glossary

    RR 14 EVO 2-400 HYBRID 1.9. SYMBOLS UTILISED Below are the symbols used in this manual which point out to the reader the various levels of danger in the operation and maintenance of the machine. Danger Information regarding a potential source of injury or damage to health.
  • Page 13 RR 14 EVO 2-400 HYBRID Heavy-duty: Lifting platform used at max. allowed limits. Crane levelling: Operation performed with stabilisers to position the machine in terms of levelling. Levelling the basket: Movement (automatic or manual) that allows to keep the cage walkway horizontal and parallel with respect to the ground, in any machine work position.
  • Page 14 RR 14 EVO 2-400 HYBRID Responsible for safety: The owner and/or lessee and/or employee who, along with the site manager if operations are performed in areas classifi ed as construction sites, industrial sites and in places with public or private access and in charge of the effi ciency and compliance with the standards in force concerning the safety of the self-propelled lifting platform.

  • Page 15: Description

    2. DESCRIPTION 2.1. MACHINE DESCRIPTION The RR 14 EVO 2-400 Hybrid is a machine used to lift operators according to the limits described in this publication. Developed to be used on rails (railways), the machine has railway wheels that lower when necessary and rubber tyres for travelling on unsurfaced land.

  • Page 16: Main Safety Signals

    RR 14 EVO 2-400 HYBRID 2.2.2. MAIN SAFETY SIGNALS BRANO English 16/150...
  • Page 17 RR 14 EVO 2-400 HYBRID BRANO Wire ropes, belts or chains under strain. Points to use to fasten the machine to the means of transport. GRUPPO Do not use water to extinguish fire on electrical parts. BRANO Danger of projecting or falling objects.
  • Page 18 RR 14 EVO 2-400 HYBRID Do not light fires or produce flames. BRANO Hook-up point for safety belts. BRANO Manual emergency pump. BRANO Read athe instruction manual. BRANO Electric current service utility outlet. Optional (Generator). GRUPPO Solenoid valve (Name). BRANO Solenoid valve (Name).

  • Page 19: Information Signals

    RR 14 EVO 2-400 HYBRID 2.2.3. INFORMATION SIGNALS BRANO English 19/150...
  • Page 20 RR 14 EVO 2-400 HYBRID BRANO Machine name. BRANO Company name and logo. BRANO Company name and logo. BRANO Company name and logo. BRANO Work field. Note the sticker shown is purely indicative. GRUPPO Work field. Note the sticker shown is purely indicative.
  • Page 21 RR 14 EVO 2-400 HYBRID Explains how to operate the levers so as to obtain emergency handling of the superstructure. BRANO Number of the railway axle. BRANO Nameplate. BRANO Nameplate. BRANO Type of motor traction. BRANO Maximum basket load. BRANO Remind the operator to close the ladder when it is not used.

  • Page 22: Multilingual Safety Signals

    RR 14 EVO 2-400 HYBRID 2.2.4. MULTILINGUAL SAFETY SIGNALS BRANO English 22/150...
  • Page 23 RR 14 EVO 2-400 HYBRID BRANO BRANO Indicates caution during handling. BRANO English 23/150...
  • Page 24 RR 14 EVO 2-400 HYBRID Emergency stop. BRANO Emergency manoeuvres. BRANO Emergency maneuver. BRANO Emergency maneuver. BRANO Indicates the filling outlet of a tank and its content. BRANO Danger and caution. BRANO Indicates the filling outlet of a tank and its content.
  • Page 25 RR 14 EVO 2-400 HYBRID First aid box. BRANO The machine must be positioned with the control panel on the side closed to traffic BRANO Remind the operator to close the ladder when it is not used. BRANO English 25/150...

  • Page 26: Main Components

    RR 14 EVO 2-400 HYBRID 2.3. MAIN COMPONENTS Turret Trolley Rubber tyres front axle Rubber tyres rear axle Railway wheels front axle (N2) Railway wheels rear axle (N1) Scissor booms lifting cylinder Scissor booms telescopic boom lifting cylinder Telescopic boom...
  • Page 27 RR 14 EVO 2-400 HYBRID Main engine unit Auxiliary engine unit GRUPPO English 27/150...

  • Page 28: Orientation

    RR 14 EVO 2-400 HYBRID 2.4. ORIENTATION front side rear side right-hand side left-hand side Upper Lower Superstructure Ground part (Carriage – undercarriage) GRUPPO 2.5. MACHINE CONDITIONS On restarting the machine after production has been stopped due to any reason, before proceeding check to ensure the machine has not been tampered with.

  • Page 29: Production Pause

    RR 14 EVO 2-400 HYBRID 2.5.2. PRODUCTION PAUSE Caution The machine must be parked exclusively in the depot it belongs to. In the case the general conditions of the machine must be: ‒ Overhead part of the closed machine (See “Closure”).
  • Page 30 RR 14 EVO 2-400 HYBRID 3. TECHNICAL SPECIFICATIONS 3.1. TECHNICAL SPECIFICATIONS TECHNICAL FEATURES ON THE ROAD Working height 14,1 Floor height 12,1 Side reach (basket edge + 50 cm) Turret rotation (n. c) ° 180 + 180 Basket rotation °...
  • Page 31 RR 14 EVO 2-400 HYBRID TECHNICAL FEATURES ON THE RAILWAY Working height - Machine stopped 14,4 - Machine travelling 12,9 Floor height - Machine stopped 12,4 - Machine travelling 10,9 Side reach (basket edge + 50 cm) - Machine stopped...
  • Page 32 RR 14 EVO 2-400 HYBRID Work with wind up to: km/h TECHNICAL SPECIFICATIONS OF MOTOR Diesel engine HATZ 3H50TICD GRUPPO HATZ 3H50TICD motor size BRANO Type 4 diesel engine liquid-cooled times Number of cylinders Exhaust gas treatment CEGR-DOC-DPF bore x stroke (mm) 84x88 Displacement (l)cm³...

  • Page 33: Overall Dimensions

    RR 14 EVO 2-400 HYBRID Minimum motor speed with no-load operation (rpm) Quantity of air intake for combustion 260-6650 at about @2800 min (kg/h) Moment of inertia J of mass 0,217 Starter 12V (2,2 kW / 3CV) - 24V (3,0 kW / 4,1CV) Cool starting (Temperature) (°C)
  • Page 34 RR 14 EVO 2-400 HYBRID BRANO BRANO English 34/150...

  • Page 35: Rr 14 Evo 2-400 Hybrid Workflow Chart

    The stone sweepers can be adjusted from a minimum height of 15 mm from the track, to a maximum height of 30 mm. 3.3. - RR 14 EVO 2-400 Hybrid WORKFLOW CHART Take into account the following information: The workflow diagram is calculated using a maximum wind of 12,5 m/sec.

  • Page 36: Stabilization On Road With Load In The 80 - 400 Kg Basket

    RR 14 EVO 2-400 HYBRID 3.3.1. STABILIZATION ON ROAD WITH LOAD IN THE 80 - 400 kg BASKET Standard condition: GRUPPO English 36/150...

  • Page 37: Stabilization On Tracks With Load In The 80 - 400 Kg Basket

    RR 14 EVO 2-400 HYBRID 3.3.2. STABILIZATION ON TRACKS WITH LOAD IN THE 80 - 400 kg BASKET Condition with standard and wide railway track gauge: GRUPPO English 37/150...

  • Page 38: Shifting On Tracks With Load In Basket 80 - 300 Kg

    RR 14 EVO 2-400 HYBRID 3.3.3. SHIFTING ON TRACKS WITH LOAD IN BASKET 80 - 300 kg Condition with standard and wide railway track gauge: Maximum shifting speed permitted 2,8 km/h. GRUPPO English 38/150...

  • Page 39: Shifting On Tracks With Load In Basket 80 - 400 Kg

    RR 14 EVO 2-400 HYBRID 3.3.4. SHIFTING ON TRACKS WITH LOAD IN BASKET 80 - 400 kg Condition with standard and wide railway track gauge: Maximum shifting speed permitted 1 km/h. GRUPPO English 39/150...
  • Page 40 RR 14 EVO 2-400 HYBRID 3.3.5. SHIFTING ON TRACKS WITH LOAD IN BASKET 80 - 400 kg Maximum shifting speed permitted 5 km/h. Necessary condition: ‒ scissor boom arm recovered. ‒ Telescopic extension of the arm returned. ‒ telescopic boom arm with a maximum tilt of 25°.

  • Page 41: Safety

    RR 14 EVO 2-400 HYBRID 4. SAFETY 4.1. GENERAL SAFETY RULES Most of the accidents that occur at work are due to negligence in the maintenance or operation of the machine. It is therefore necessary to read this manual so as to be able to operate in the greatest possible safety and always maintain the machine in a state of efficiency: ‒...

  • Page 42: General Preparation

    RR 14 EVO 2-400 HYBRID ‒ Check that there is enough space above, beside and under the basket when performing lifting, descent, boom rotation or when using the telescopic function. ‒ Make sure that the operators of other aerial or ground machines are aware of the presence of the aerial basket.

  • Page 43: Making Ready For Use

    RR 14 EVO 2-400 HYBRID 4.3. MAKING READY FOR USE Before using a new machine it is necessary to inspect it carefully for any evidence of damage sustained during shipment and then to give it routine inspections as indicated in the section “Inspections to be done routinely and on receiving the machine”.

  • Page 44: Turret

    RR 14 EVO 2-400 HYBRID 4.4.2. TURRET ‒ Check the turret for damage, loose or missing parts and that it is locked in position. ‒ Check that the rotation gears and its brake do not show signs of damage, loose or missing parts, that the hydraulic pipes and the component housings do not show signs of leaks;...

  • Page 45: Bolt And Screw Tightening

    RR 14 EVO 2-400 HYBRID 4.4.5. BOLT AND SCREW TIGHTENING The tightening torque table (see the pages specified) consists of standard torque values, based on the diameter and the class (hardness) of the screws; this also establishes the torque values with and without lubricants according to the practice recommended by the factory.
  • Page 46 RR 14 EVO 2-400 HYBRID Note Do not underestimate the importance of inspecting the base of the frame. Checking this area often reveals conditions that can cause serious damage to the machine. Basket overall ‒ No loose or missing parts.

  • Page 47: Daily Working Checks

    RR 14 EVO 2-400 HYBRID Hydraulic oil tank ‒ the oil level should be correct (check the level when the oil is cold, the components are not moving and the machine is in the rest position). ‒ No damage visible.

  • Page 48: Qualification Of Operating Personnel

    RR 14 EVO 2-400 HYBRID ‒ General Brake tests when the Rail Road vehicle enter in rail mode, in plane conditions. No other rail vehicle must be in the testing area. Travel up to the maximum speed (about 5 km/h on rubber wheels and about 15 km/h on railways) and quickly release the travel selector, making sure the machine stops within a space of 18 m or within the...

  • Page 49: Operator Training

    RR 14 EVO 2-400 HYBRID 4.7. OPERATOR TRAINING Operator training is based on the following: Use and limitations of the controls in the basket, those on the ground and the emergency controls. Knowledge and comprehension of this manual and the control signs, instructions and warnings affixed to the machine.

  • Page 50: Controls

    RR 14 EVO 2-400 HYBRID Caution Do not run in the vicinity of the machine. Always proceed at a walking pace, paying attention to the possible presence of obstacles. Ensure that there are no other persons in the immediate proximity of the machine during machine operation and maintenance.

  • Page 51: Personal Protective Equipment (Ppe)

    RR 14 EVO 2-400 HYBRID Fire hazard Always ensure the electrical equipment is Electrical equipment may be the source of in perfect condition and repair any fire outbreaks. damage. If a fire starts disconnect power by setting the all-pole main disconnect switch to OFF and then use extinguishers that are compatible with electrical fires.

  • Page 52: Safety Regulations For Machine Maintenance

    RR 14 EVO 2-400 HYBRID To avoid the risk of serious injury due to the presence of moving parts adhere strictly to the following rules of conduct. The guards must always be present and correctly secured during machine operation. The guards must only be removed by authorised personnel using suitable tools.

  • Page 53: Controls

    RR 14 EVO 2-400 HYBRID 5. CONTROLS 5.1. GROUND CONTROL PANEL BRANO SQ153 Display Visualise the operating states and alarms relating to the machine control system diagnostics. SA37 Key switch and enabling of base/basket controls - Switch to OFF turns off the machine.
  • Page 54 RR 14 EVO 2-400 HYBRID SA71 Switch with automatic return to the centre for main engine switch-on/off - switch turned to the left, engine switches off. - switch turned to the right switches the engine on. SA36 Enabling switch and auxiliary engine switch-on (Optional) - switch turned to (0) engine off.
  • Page 55 RR 14 EVO 2-400 HYBRID SA66 Front railway axle movement Downward SA232 Supplementary lighting switch (Optional) Command that turns the supplementary lighting system on/off. SA233 Beacon lighting switch (Optional) Command that turns the beacon on/off SA79 Turret compensation jack key switch - switch turned to the left controls lighting of the turret.

  • Page 56: Control Panel On The Basket

    RR 14 EVO 2-400 HYBRID 5.2. CONTROL PANEL ON THE BASKET BRANO SQ153A Display Visualise the operating states and alarms relating to the machine control system diagnostics. SAN00 Combustion motor or electric motor enabling switch (Optional) - When the switch is turned to the left, the combustion motor is enabled.
  • Page 57 RR 14 EVO 2-400 HYBRID SA87 Manual basket balancing keyswitch - if rotated to the right, basket up. - if rotated to the left, basket down. - If released, it goes back to central position (neutral) and key can be extracted.
  • Page 58 RR 14 EVO 2-400 HYBRID Boom and turret proportional movement joystick - Lever in direction a the telescopic boom descends. - Lever in direction b the telescopic boom ascends. - Lever in direction c the turret turns clockwise. - Lever in direction d the turret turns anti- clockwise.

  • Page 59: Tools On The Machine

    RR 14 EVO 2-400 HYBRID SB149 Operation presence pedal (dead man device) Press to enable the machine movement controls. Caution To carry out the various movements, always press the pedal and then activate the control requested. GRUPPO 5.3. TOOLS ON THE MACHINE...

  • Page 60: Carriage Emergency Controls

    RR 14 EVO 2-400 HYBRID front side rear side Current socket for power supply of lights and service trucks Caution During the machine movement phase, check that the cable and the connection are not damaged. GAC1 Towing hook for service trucks FAS Service lights in basket Press the button to switch the lights on and off.

  • Page 61: Aerial Part Emergency Controls

    RR 14 EVO 2-400 HYBRID YV111-112Jack handling lever for column compensation a - Down b - Up YV113-114Front axle movement lever a - Downward b - Up YV115-116Front axle movement lever a - Downward b - Up YV117-118Steering movement lever...
  • Page 62 RR 14 EVO 2-400 HYBRID YV132-133Extension movement lever a - Exit b - Return YV134-135Jib movement lever a - Opening b - Closing YV136-137Basket movement lever a - counterclockwise rotation b - clockwise rotation YV138-139Basket manual balancing lever a - Backwards...

  • Page 63: Devices

    RR 14 EVO 2-400 HYBRID 6. DEVICES 6.1. SAFETY DEVICES A number of safety devices are installed on the machine for the safety of the operator and the protection of the machine. Caution Do not tamper with, disconnect, bypass or remove any of the machine's safety devices or guards.

  • Page 64: Emergency Button

    RR 14 EVO 2-400 HYBRID Horn (Vehicle horn): The machine has a buzzer that activate a HORN (one for Rail mode, one for Tires mode), which can be activated by the operator in the basket. GRUPPO 6.1.3. EMERGENCY BUTTON Each control station is equipped with a device (SB40, SB40B, SB40A) that allows the operator to stop the machine in the presence of imminent danger.

  • Page 65: Inclination Control

    RR 14 EVO 2-400 HYBRID 6.1.4. INCLINATION CONTROL The inclination sensor SQ58 electronically controls the inclination of the machine. When the inclination 3° on wheels are exceeded, they are displayed on the machine control system. GRUPPO 6.1.5. TELESCOPIC BOOM AND EXTENSION...

  • Page 66: Pantograph Boom Home Sensors

    RR 14 EVO 2-400 HYBRID 6.1.6. PANTOGRAPH BOOM HOME SENSORS The sensor (SQ42) detects the correct support of the pantograph arm. The arm support allows enabling of travelling combined with the telescopic boom sensors at rest and extension retracted. GRUPPO 6.1.7.

  • Page 67: Basket Rotation Sensor And Jib Height Positioning Sensor

    RR 14 EVO 2-400 HYBRID 6.1.8. BASKET ROTATION SENSOR AND JIB HEIGHT POSITIONING SENSOR The sensor (SQ154) for the basket rotation detects the exact perpendicularity of the basket with respect to the boom. The sensor (SQ167) detects the correct position of the jib.

  • Page 68: Pressure Sensor

    RR 14 EVO 2-400 HYBRID 6.1.10. PRESSURE SENSOR The two transducers (SQ44), (SQ45) have the task to check, when moving on the tracks, that the axle remains correctly positioned. The operating fault is shown on the machine control system display.
  • Page 69 RR 14 EVO 2-400 HYBRID BRANO English 69/150...
  • Page 70 RR 14 EVO 2-400 HYBRID BRANO BRANO English 70/150...

  • Page 71: Hydraulic Parking Brakes

    RR 14 EVO 2-400 HYBRID 6.1.12. HYDRAULIC PARKING BRAKES The machine’s brake system is made with negative brakes integrated in the gear-motors. When the operator activates the shifting, the brakes will be unlocked and when the operator disengages shifting the electro-hydraulic system automatically activates the braking of the machine without locking the wheels.
  • Page 72 RR 14 EVO 2-400 HYBRID Caution The fire extinguisher can only be used for fires for which it is type-approved. Improper use can be dangerous. Never direct the jet of extinguishing material at people or animals (the extinguishing agent could cause injuries and burns caused by the cold material).

  • Page 73: First Aid Box (If Present)

    RR 14 EVO 2-400 HYBRID 6.1.15. FIRST AID BOX (IF PRESENT) The machine has a First aid box under the hood, on the electrical panel side. GRUPPO 6.1.16. OIL SPILL PREVENTION KIT (IF PRESENT) The machine is equipped with an oil spill prevention kit.

  • Page 74: Fuel Level Indicator

    RR 14 EVO 2-400 HYBRID 6.1.18. FUEL LEVEL INDICATOR The machine features a visual level indicator (A) and/or and electronic indicator (B). Caution The equipment is built according to applicable laws. GRUPPO 6.1.19. BATTERY CUT-OFF SWITCH In (A) on position, it enables engine operation.

  • Page 75: Fall Prevention Device In Basket

    RR 14 EVO 2-400 HYBRID 6.1.20. FALL PREVENTION DEVICE IN BASKET The basket is equipped with 3 connections marked with the related symbol for hooking the operator safety harness in the basket structure. Hooking the device prevents the operator from being thrown out of the basket due to unforeseeable conditions.

  • Page 76: Optional

    RR 14 EVO 2-400 HYBRID 7. OPTIONAL 7.1. ANEMOMETER The basket can be equipped with an (Q174) anemometer. In case of danger caused by > 12,5 m/s wind speed, the operator will be warned by the (HL176A) tell-tale light signal and by the (HA176) acoustic signal.

  • Page 77: Nightime Lighting Kit

    RR 14 EVO 2-400 HYBRID 7.3. NIGHTIME LIGHTING KIT The machine can be fitted with supplementary lighting to ensure greater visibility. GRUPPO English 77/150...

  • Page 78: Transport

    RR 14 EVO 2-400 HYBRID 8. TRANSPORT 8.1. FOREWORD The following chapter contains important prescriptions that must be strictly observed to protect personal safety. Always observe also all the general and specific regulations concerning lifting equipment and handling and transport operations, including those that are not expressly stated in this manual.

  • Page 79: Fastening The Machine For Transport On The Vehicle

    RR 14 EVO 2-400 HYBRID 8.3. FASTENING THE MACHINE FOR TRANSPORT ON THE VEHICLE Whenever the machine is transported on a vehicle, it is mandatory that its fastening be carried out by the transporting operator. It is obligatory for the machine to be fixed to the vehicle body, whenever it is transported from one work site to another.

  • Page 80: Lift

    RR 14 EVO 2-400 HYBRID 8.5. LIFT The machine can be lifted, for both the loading and unloading phases, from a transport vehicle with the aid of a crane or overhead crane. In this case, the machine will be lifted by appropriate capacity chains or wire ropes by hooking it to the perforated disks, as subsequently illustrated.

  • Page 81: Use

    RR 14 EVO 2-400 HYBRID 9. USE 9.1. FOREWORD The sequence of main operations necessary to make the machine operational is as follows: ‒ travelling on rubber tyres. ‒ travelling on railway wheels. ‒ Aerial part movement. There follow the instructions for safe configuration and use of the machine.

  • Page 82: Stop Main Engine

    RR 14 EVO 2-400 HYBRID 9.2.2. STOP MAIN ENGINE ‒ Check that the machine configuration is in maximum safety conditions. ‒ Turn the selector (SA71) or (SA70) to the left to switch the main engine off. GRUPPO English 82/150...

  • Page 83: Auxiliary Engine Start

    RR 14 EVO 2-400 HYBRID 9.2.3. AUXILIARY ENGINE START ‒ Move to “Ground control panel”. ‒ Move the switch (SA37) to “ground position” or “basket position” according to the machine’s operating situation. ‒ Turn the selector (SA36) or (SA36A) at the centre to enable the engine and then to the right to switch the engine on.

  • Page 84: Shifting

    RR 14 EVO 2-400 HYBRID 9.3. SHIFTING Caution Always position the machine’s control panel on the side of the power line that is closed off to traffic. Caution Always close the access ladder to the machine’s controls when not in use.

  • Page 85: Travelling On Railway Wheels

    RR 14 EVO 2-400 HYBRID ‒ Climbing into the basket. ‒ Check that the sliding bar which protects the opening of the basket is closed and positioned correctly. ‒ Attach the safety belt to the safety ring. ‒ Holding the pedal (SB149) down, act on lever (JS3) to control the forward travelling or reverse travelling.
  • Page 86 RR 14 EVO 2-400 HYBRID ‒ Lower one axle at a time holding the pedal (SB149) or button (SB80) down. - from the basket: select the axle to be lowered, front or rear, from the switch (SA65) and lower it from switch (SA67).
  • Page 87 RR 14 EVO 2-400 HYBRID ‒ travelling slowly is allowed with pantograph lowered and extension retracted. You can also move at a low speed with the boom extended, but only at an angle greater than 70° and a load in the basket up to 300 kg.

  • Page 88: On Tracking

    RR 14 EVO 2-400 HYBRID 9.4. ON TRACKING Caution Before approaching any Railway line, you must first ensure all Authorities, Documentation, isolations and Possessions etc. Have been received. ‒ On / Off tracking will only take place at a designated RRAP.

  • Page 89: Under Live Ole (Ole: Overhead Line Equipment)

    RR 14 EVO 2-400 HYBRID 9.6. UNDER LIVE OLE (OLE: OVERHEAD LINE EQUIPMENT) Caution On / Off Tracking under live OLE must be done in conjunction with the relevant authority and must be controlled and supervised by Machine Controller / Coss / PICOW / and in compliance with the specific method statement and risk assessment etc.

  • Page 90: Descent From The Rails Under The Live Lines

    RR 14 EVO 2-400 HYBRID OLE lines valve deactivated OLE lines valve activated OLE lines key GRUPPO 9.7. DESCENT FROM THE RAILS UNDER THE LIVE LINES Caution On / Off Tracking under live OLE must be done in conjunction with the relevant authority and...

  • Page 91: Aerial Part Movement

    RR 14 EVO 2-400 HYBRID 9.8. AERIAL PART MOVEMENT In the event of an overload alarm, the message (A) will appear on the display. Once the excess load has been removed from the basket, the alarm will turn off. If the alarm persists:...

  • Page 92: Closing

    RR 14 EVO 2-400 HYBRID 9.8.2. CLOSING ‒ 1 Retraction with the extension. ‒ 2 Lower the telescopic boom. ‒ 3 Lower the pantograph boom until complete closure. ‒ 4 Turn the column so that the scissor boom is brought onto the longitudinal axis of the frame.

  • Page 93: Main Engine Breakdown

    RR 14 EVO 2-400 HYBRID 9.9.2. MAIN ENGINE BREAKDOWN If the main engine breaks down or the fuel is low, the auxiliary engine can be used to carry out all the movements, however this engine is only for emergencies so it should not be used continuously for lengthy periods.

  • Page 94: Carriage And Axles Blocked Due To Electrical Breakdown

    RR 14 EVO 2-400 HYBRID 9.9.4. CARRIAGE AND AXLES BLOCKED DUE TO ELECTRICAL BREAKDOWN Caution It is only possible to move the ground structure with the machine completely reclosed. If the machine does not perceive that the aerial part has been completely retrieved, the drive wheels and the rail axles do not work.

  • Page 95: Electric Plant Breakdown

    RR 14 EVO 2-400 HYBRID 9.9.5. ELECTRIC PLANT BREAKDOWN ‒ Open the bonnet (A) and pull start the auxiliary engine or use the hand pump. The auxiliary engine can be started using the pull start cord. ‒ Break the seal, pull and turn the pin (B) to allow the passage of fuel.
  • Page 96 RR 14 EVO 2-400 HYBRID Inside the hood on the side of the panel (A) there is a bypass valve on the right side of the aerial movements distributor. ‒ Break the seal. ‒ Press the button and turn to unlock.
  • Page 97 RR 14 EVO 2-400 HYBRID To move the truck (part on the ground: Caution It is only possible to move the ground structure with the machine completely reclosed. ‒ Break the seal, press and turn the pin (A) clockwise until it remains in the lowered positioned and is blocked to bypass the valve ((YV90).

  • Page 98: Towing The Machine On Rubber Tyres

    RR 14 EVO 2-400 HYBRID 9.9.6. TOWING THE MACHINE ON RUBBER TYRES Caution If the machine is being towed on rubber tyres or on railway wheels it is necessary to. ‒ Fully reclose the superstructure. ‒ Break the seal. ‒...

  • Page 99: Towing The Machine On Railway Wheels

    RR 14 EVO 2-400 HYBRID ‒ Tow the machine. Caution After having performed these operations, contact an authorised after-sales centre for the due repairs. In these conditions the machine is not braked. Caution After any operation where it was necessary to remove the lead seals, it is forbidden to continue to use the machine.
  • Page 100 RR 14 EVO 2-400 HYBRID ‒ Turn 180° the cover (A) so that spherical part (B) pushes the central pin (C). BRANO ‒ Put back the cover (A) on the gear motor. BRANO ‒ Tow the machine. Caution After having performed these operations, contact an authorised after-sales centre for the due repairs.

  • Page 101: Release The Brakes To Use The Machine With The Auxiliary Motor And Electronics Not Working

    RR 14 EVO 2-400 HYBRID 9.9.8. RELEASE THE BRAKES TO USE THE MACHINE WITH THE AUXILIARY MOTOR AND ELECTRONICS NOT WORKING Valve of the brakes (A) in normal conditions. To activate the valve proceed as follows: GRUPPO Break the valve hood seal and remove it.

  • Page 102: Troubles - Causes - Remedies

    RR 14 EVO 2-400 HYBRID 10. TROUBLES – CAUSES – REMEDIES 10.1. FOREWORD Danger The operations described in the various headings must be carried out exclusively with the machine stopped and disconnected from the power sources (electrical and pneumatic). Caution The following cases describe possible faults each associated with a sequence of checks to be carried out in order to remedy the possible causes.
  • Page 103 RR 14 EVO 2-400 HYBRID Wear tight-seals. Replace seals, checking wear not coming Leakages on lock valves. from linings on the telescopic rod or on Control valve with internal leakages. the cylinder. Overhaul valves check valves cleanliness and setting. Overhaul control valve, check valves cleanliness and setting.
  • Page 104 RR 14 EVO 2-400 HYBRID ULTIMO BRANO TABELLA Oil loosing from the cylinders tops Causes Remedy Ruined cylinder seals. Replace cylinder seals. Too slow end cap on rod. Unfasten end cap, clean and reassemble Cylinder with swelled outer casing. with loctite.

  • Page 105: Maintenance

    RR 14 EVO 2-400 HYBRID 11. MAINTENANCE 11.1. FOREWORD Caution Before doing any maintenance work and especially maintenance and/or repairs to the electrical system or if it is necessary to do WELDING, COMPLETELY DISCONNECT ALL THE BATTERIES OF THE MACHINE BY REMOVING THE CONNECTOR TERMINALS.

  • Page 106: Maintenance Work Safety

    RR 14 EVO 2-400 HYBRID 11.2. MAINTENANCE WORK SAFETY ‒ Use tools and equipment that are suitable for the purpose. ‒ Only qualifi ed personnel assigned to the maintenance operations must be present in the maintenance area/room. ‒ Never leave metal tools such as spanners or the like on the machine as these could cause irreparable damage.

  • Page 107: Replacement Parts

    RR 14 EVO 2-400 HYBRID 11.4. REPLACEMENT PARTS The use of non-authentic spare parts may cause machine malfunctions, which in turn may lead to hazardous situations for the operator and any individuals working near the machine. Caution Always use authentic spare parts.

  • Page 108: Cooling System

    RR 14 EVO 2-400 HYBRID Replace In-Line Filter Two-month 250 h period Rinse fuel tank 500 h Three months Clean lift pump filter 500 h Three months Renew fuel filter 500 h Three months Check Injectors & Pump. Annually 1000 h Must only be performed by a specialised workshop.

  • Page 109: Cage

    RR 14 EVO 2-400 HYBRID Check battery terminals. 250 h Two-month period. Check horn. 250 h Two-month period. Check all switch controls. 250 h Two-month period. Check all warning lamps. 250 h Two-month period. Micro sensors efficiency control. 1000 h Six Months.

  • Page 110: Tyres And Wheels

    RR 14 EVO 2-400 HYBRID After the first 10 h hours of operation. 11.5.9. TYRES AND WHEELS Description of action Assiduity of maintenance (Action to be carried out at the first expiration date) Check Tyre Condition 250 h Two-month period...

  • Page 111: Frame

    RR 14 EVO 2-400 HYBRID After the first 10 h hours of operation. 11.5.12. FRAME Description of action Assiduity of maintenance (Action to be carried out at the first expiration date) Tightening check 250 h Two-month period Check for Damage...

  • Page 112: Inspection, Check And Maintenance Of The Railway Wheels

    The condition of the railway wheels should be carefully checked, in conformity with the maintenance schedule of the RR 14 EVO 2-400 Hybrid. 3.1 - With the face (B) resting on the back of the flange and the face (A) perpendicular to the back, keep the control gauge radial to the wheel and move it on the profile.
  • Page 113 Thickness of the flange to be checked in compliance with the drawing, current legislation and with the maintenance schedule for the RR 14 EVO 2-400 Hybrid, as follows: 4.1 - With the face (A) resting on the back of the flange and the face (B) perpendicular to the back, keep the control gauge radial to the wheel and move it on the profile.

  • Page 114: Preparing The Machine For Maintenance

    RR 14 EVO 2-400 HYBRID 11.7. PREPARING THE MACHINE FOR MAINTENANCE If maintenance must be performed under the turret, a switch is present inside the control board on the ground that allows to lift the turret using the compensation cylinder.

  • Page 115: Cleaning The Dataplates And Indicator Lights

    RR 14 EVO 2-400 HYBRID 11.8.1. CLEANING THE DATAPLATES AND INDICATOR LIGHTS Whenever it becomes necessary, clean the control indications, the indicator lights, the plates and, above all, the safety pictograms. All dataplates and decals on the machine or on parts of the machine must be clearly legible.

  • Page 116: Greasing Points Diagram

    RR 14 EVO 2-400 HYBRID 11.9.1. GREASING POINTS DIAGRAM The illustration below shows the grease nipples. Inject grease into all the grease nipples. GRUPPO English 116/150...

  • Page 117: Lubrication

    RR 14 EVO 2-400 HYBRID 11.10. LUBRICATION The smooth surfaces and the gears should first be cleaned of spent grease with a spatula and then lubricated with fresh grease using a brush. Always remove excess grease. Caution Damaged or clogged lubricators must always be replaced.
  • Page 118 RR 14 EVO 2-400 HYBRID Connect a pipe to the lowest tap (E) to empty the tank (D). Open cock ((E). Wait for all the oil to come out. Close the tap when the operation is complete. Disconnect the pipe used previously.

  • Page 119: Check And Replace The Oil In The Rail Wheel Hubs

    RR 14 EVO 2-400 HYBRID 11.13. CHECK AND REPLACE THE OIL IN THE RAIL WHEEL HUBS GEAR OIL LEVEL CHECK Proceed as indicated: Put the machine on the road wheels (A). GRUPPO Release the negative brake (B) of the rail wheels (C).
  • Page 120 RR 14 EVO 2-400 HYBRID Screw the cap (D). Restore the negative brake (B) of the rail wheels. See paragraph (Towing the machine on railway wheels). GRUPPO Oil replacement Proceed as indicated from point 1 to point 3. Caution Prepare a vessel collecting lubricating oil.

  • Page 121: Check And Replace The Oil In The Road Wheel Hubs

    RR 14 EVO 2-400 HYBRID 11.14. CHECK AND REPLACE THE OIL IN THE ROAD WHEEL HUBS GEAR OIL LEVEL CHECK Proceed as indicated: Put the machine on the rail wheels (A). GRUPPO Release the negative brake (B) of the road wheels (C).
  • Page 122 RR 14 EVO 2-400 HYBRID Screw the cap (D). Restore the negative brake (B) of the road wheels. See paragraph (Towing the machine on rubber tyres). GRUPPO Oil replacement Proceed as indicated from point 1 to point 3. Caution Prepare a vessel collecting lubricating oil.

  • Page 123: Extension Greasing

    RR 14 EVO 2-400 HYBRID 11.15. EXTENSION GREASING Configure the stabilised machine with the boom positioned horizontally and extended as far as it will Scrape off the old layer of grease with a plastic spatula. Spread on a new layer of grease using a brush.

  • Page 124: Replace Pressure Filter Cartridges

    RR 14 EVO 2-400 HYBRID 11.17. REPLACE PRESSURE FILTER CARTRIDGES Move the machine into the rest configuration. Danger Turn off the machine by cutting off the electrical power to the control panels, also making sure that the hydraulic oil is not at a temperature of 40 °C.

  • Page 125: Cleanliness/Replacement Of The Return Filter

    RR 14 EVO 2-400 HYBRID 11.19. CLEANLINESS/REPLACEMENT OF THE RETURN FILTER During the operations of replacement and cleanliness of the filter, the pump must be disconnected. Clean the area near the filter before removing it. When established and, however, when the optical indicator (A) signals the clogging, the filtering cartridge must be replaced.

  • Page 126: Checking For Wear And Wear Pad Adjustment

    RR 14 EVO 2-400 HYBRID 11.20. CHECKING FOR WEAR AND WEAR PAD ADJUSTMENT Check wear of extension shoes; when arm and extensions are re-entered completely and there is still play exceeding 5 mm between one extension and another they must be replaced.

  • Page 127: Check Tightening

    RR 14 EVO 2-400 HYBRID 11.22. CHECK TIGHTENING Joints ring nuts Rubber tyres and railway wheels screws Slewing ring screws GRUPPO English 127/150...

  • Page 128: Screw Tightening

    RR 14 EVO 2-400 HYBRID 11.23. SCREW TIGHTENING All screws are to be tightened always with a torque wrench. Excessive tightening of the screws may damage them while insufficient tightening defeats their purpose. Each screw has its own specific value and the calibration of the torque wrench depends on its diameter and type.

  • Page 129: Checking Sensors And Microswitches

    RR 14 EVO 2-400 HYBRID PRE-LOAD AND TORQUE FOR SCREWS WITH ISO THREAD AND SMALL PITCH Nominal Max pre-load Max torque (kgm) Ma (kgm.) screw diameter 10 K 12 K 10 K 12 K 10,9 12,9 10,9 12,9 M8x1 1750...

  • Page 130: Check Emergency Buttons

    RR 14 EVO 2-400 HYBRID 11.25. CHECK EMERGENCY BUTTONS Check that the individual emergency buttons work correctly. When the machine is on, press one of the mushroom- head buttons and attempt to perform a manoeuvre. This should be prohibited. If it is activated anyway, switch the machine off and contact an authorised workshop to restore normal safety conditions.

  • Page 131: Fuse Replacement

    RR 14 EVO 2-400 HYBRID 11.26. FUSE REPLACEMENT To access and replace the fuses (F1 and F2) of the starter motor: ‒ Open the case (A). ‒ Open the electrical panel hatch. ‒ Disconnect the fuse in question and replace it with one of the same amperage.

  • Page 132: Scrapping And Disposal

    RR 14 EVO 2-400 HYBRID 12. SCRAPPING AND DISPOSAL 12.1. WARNING The manufacturer of the machinery does not require any special precautions at the time of disposal because more than 90% (by weight) of the machines is made of recyclable materials.

  • Page 133: Log Of The Operations Done On The Machine

    RR 14 EVO 2-400 HYBRID 13. LOG OF THE OPERATIONS DONE ON THE MACHINE 13.1. MAINTENANCE RECORDS AND LOGBOOK This inspection record is issued by the manufacturer to the platform owner in compliance with annex I of Directive 2006/42/CE. The inspection record is to be considered as a part of the machine and must accompany it throughout its life until it is finally demolished.
  • Page 134 RR 14 EVO 2-400 HYBRID SUCCESSIVE CHANGES OF OWNERSHIP Date: ULTIMO BRANO TABELLA The ownership of the WORK PLATFORM: ULTIMO BRANO TABELLA described in this manual is transferred to the Firm/Company: ULTIMO BRANO TABELLA It is hereby certified that, at the date mentioned above, the technical specifications, dimensions and functions of the WORK PLATFORM described in this manual conform to those originally existing and that any modifications have been recorded in this Register.
  • Page 135 RR 14 EVO 2-400 HYBRID SUCCESSIVE CHANGES OF OWNERSHIP Date: ULTIMO BRANO TABELLA The ownership of the WORK PLATFORM: ULTIMO BRANO TABELLA described in this manual is transferred to the Firm/Company: ULTIMO BRANO TABELLA It is hereby certified that, at the date mentioned above, the technical specifications, dimensions and functions of the WORK PLATFORM described in this manual conform to those originally existing and that any modifications have been recorded in this Register.
  • Page 136 RR 14 EVO 2-400 HYBRID SUCCESSIVE CHANGES OF OWNERSHIP Date: ULTIMO BRANO TABELLA The ownership of the WORK PLATFORM: ULTIMO BRANO TABELLA described in this manual is transferred to the Firm/Company: ULTIMO BRANO TABELLA It is hereby certified that, at the date mentioned above, the technical specifications, dimensions and functions of the WORK PLATFORM described in this manual conform to those originally existing and that any modifications have been recorded in this Register.
  • Page 137 RR 14 EVO 2-400 HYBRID SUCCESSIVE CHANGES OF OWNERSHIP Date: ULTIMO BRANO TABELLA The ownership of the WORK PLATFORM: ULTIMO BRANO TABELLA described in this manual is transferred to the Firm/Company: ULTIMO BRANO TABELLA It is hereby certified that, at the date mentioned above, the technical specifications, dimensions and functions of the WORK PLATFORM described in this manual conform to those originally existing and that any modifications have been recorded in this Register.

  • Page 138: Maintenance Records

    RR 14 EVO 2-400 HYBRID 13.1.1. MAINTENANCE RECORDS The user is obliged to respect the maintenance and inspection schedule in this instruction manual. Key to the frequency of the operation: A - if necessary B - day C - week...
  • Page 139 RR 14 EVO 2-400 HYBRID NO. INTERVENTION ........Periodicity of maintenance Work hours Date Description of action ULTIMO BRANO TABELLA Signature NO. INTERVENTION ........Periodicity of maintenance Work hours Date Description of action ULTIMO BRANO TABELLA Signature NO. INTERVENTION ........
  • Page 140 RR 14 EVO 2-400 HYBRID NO. INTERVENTION ........Periodicity of maintenance Work hours Date Description of action ULTIMO BRANO TABELLA Signature NO. INTERVENTION ........Periodicity of maintenance Work hours Date Description of action ULTIMO BRANO TABELLA Signature English 140/150...
  • Page 141 RR 14 EVO 2-400 HYBRID NO. INTERVENTION ........Periodicity of maintenance Work hours Date Description of action ULTIMO BRANO TABELLA Signature NO. INTERVENTION ........Periodicity of maintenance Work hours Date Description of action ULTIMO BRANO TABELLA Signature English 141/150...
  • Page 142 RR 14 EVO 2-400 HYBRID REPLACEMENT PART RECORD Substitution of: ❑ Mechanical component ❑ Electric component ❑ Hydraulic component ❑ Other Date ULTIMO BRANO TABELLA Replaced by: ULTIMO BRANO TABELLA Replaced element: ULTIMO BRANO TABELLA Description of new element: ULTIMO BRANO TABELLA...
  • Page 143 RR 14 EVO 2-400 HYBRID REPLACEMENT PART RECORD Substitution of: ❑ Mechanical component ❑ Electric component ❑ Hydraulic component ❑ Other Date ULTIMO BRANO TABELLA Replaced by: ULTIMO BRANO TABELLA Replaced element: ULTIMO BRANO TABELLA Description of new element: ULTIMO BRANO TABELLA...
  • Page 144 RR 14 EVO 2-400 HYBRID REPLACEMENT PART RECORD Substitution of: ❑ Mechanical component ❑ Electric component ❑ Hydraulic component ❑ Other Date ULTIMO BRANO TABELLA Replaced by: ULTIMO BRANO TABELLA Replaced element: ULTIMO BRANO TABELLA Description of new element: ULTIMO BRANO TABELLA...
  • Page 145 RR 14 EVO 2-400 HYBRID REPLACEMENT PART RECORD Substitution of: ❑ Mechanical component ❑ Electric component ❑ Hydraulic component ❑ Other Date ULTIMO BRANO TABELLA Replaced by: ULTIMO BRANO TABELLA Replaced element: ULTIMO BRANO TABELLA Description of new element: ULTIMO BRANO TABELLA...
  • Page 146 RR 14 EVO 2-400 HYBRID REPLACEMENT PART RECORD Substitution of: ❑ Mechanical component ❑ Electric component ❑ Hydraulic component ❑ Other Date ULTIMO BRANO TABELLA Replaced by: ULTIMO BRANO TABELLA Replaced element: ULTIMO BRANO TABELLA Description of new element: ULTIMO BRANO TABELLA...
  • Page 147 RR 14 EVO 2-400 HYBRID REPLACEMENT PART RECORD Substitution of: ❑ Mechanical component ❑ Electric component ❑ Hydraulic component ❑ Other Date ULTIMO BRANO TABELLA Replaced by: ULTIMO BRANO TABELLA Replaced element: ULTIMO BRANO TABELLA Description of new element: ULTIMO BRANO TABELLA...

  • Page 148: Enclosed Documentation

    RR 14 EVO 2-400 HYBRID 14. ENCLOSED DOCUMENTATION 14.1. HYDRAULIC SYSTEM GRUPPO English 148/150...

  • Page 149: Electrical System

    RR 14 EVO 2-400 HYBRID 14.2. ELECTRICAL SYSTEM GRUPPO English 149/150...

  • Page 150: Ce Conformity Declaration

    RR 14 EVO 2-400 HYBRID 14.3. CE CONFORMITY DECLARATION The EC statement of conformity is the document signed by the manufacturer which guarantees and certifies that the machine complies with all the safety regulations. The EC statement of conformity is attached to this manual.

Table of Contents

Save PDF
