Summary of Contents for Starfire SF-HC25G

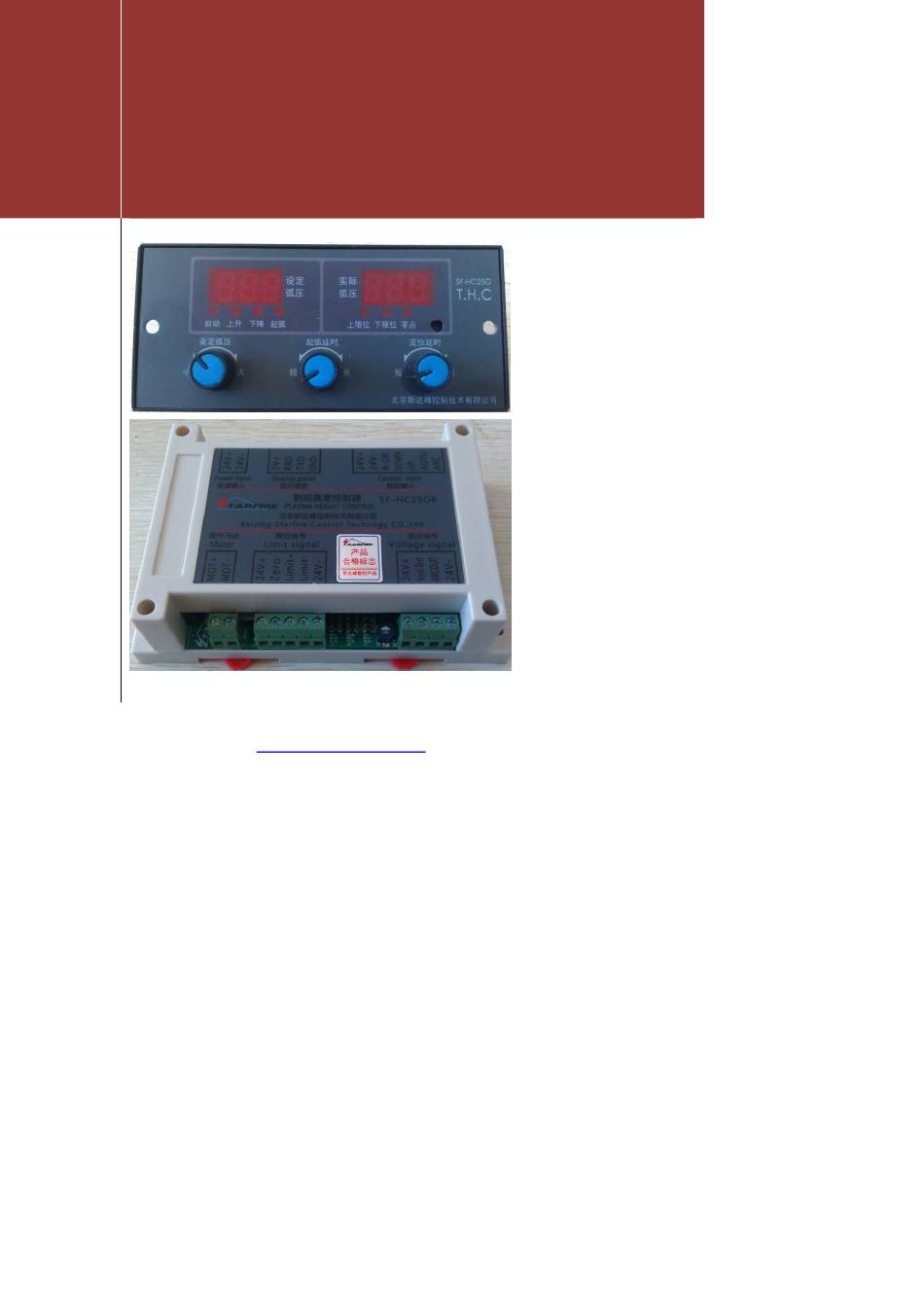

- Page 1 SF-HC25G Cutting torch height controller The user manualV1.2 北京斯达峰控制技术有限公司 http://www.starfcnc.com 北京市石景山区海特花园 44 号楼 206...
- Page 2 6. CNC system and block adjustment for M instructions 6.1 CNC system control direct output port of the M function 6.2 Fixed cycle of M function 6.3 CNC system recommended settings (STARFIRE of SF-2012 AH system) 7. Troubleshooting 8. Appendix...
- Page 3 (heighten)of cutting board is very important to the stability, it will directly affect the cutting speed and the quality of the incision. Main engine Display setting panel Separate voltage board SF-HC25G Plasma cutting torch height controller...
- Page 4 Safety warning is used to prevent the human body and property damage. In the use of SF-HC25G cutting torch height controller, if there is any quality problem, consumers can contact our service center or authorized office, dealers, agents to get the corresponding products and services.
-
Page 5: Technical Features
2.Overview 2.1 Technical features SF-HC25G plasma cutting torch height controller is after many years of practice and several generations of related products into play. This product adopts the 32-bit arm as the core, two groups of three digital tube display, adopts digital control mode. - Page 6 Velocity parameters can be modified, according to the lifting mechanism with power supply and any modification. Circuit adopts the technology of the patch. There is not internal adjustment device, full digital control technology to ensure that the product has high reliability.
-
Page 7: Installation
Highest accuracy: + / - 1V Box body size: Host:145 x90x42 Panel: 120x55x40 Working environment temperature: - 10 ~ 60 ℃ Weight: 0.6 Kg Detection system: isolation of arc electric subsection platen (B2 type) 3. Installation 3.1 Installation The related parts name of height controller, location components are as follows. - Page 8 Figure 3-1-4: communication line Bottom highly controller of the four M4 screw hole used for fixed box body onto the mounting plate. Its size is shown in figure 3-1-5. You can also use DZ47 type guide rail installation.
- Page 9 Figure 3-1-5 Display setting panel uses two M4 screw to install, installation dimensions such as figure 3-1-6. Figure 3-1-6...
- Page 10 Partial pressure board uses four M3 screw to install, installation dimensions as shown in figure 3-1-7. H is not less than 10MMabout installation requirements. Figure 3-1-7 3.2 Electrical installation and connect 3.2.1 interface definition description Table 3-2-1connect lifting mechanism Remark Character Illustration MOT+...
- Page 11 Start arc input-connect CNC start arc output Low effective Input signal Note: when using STARFIRE NC system, this table all wiring is direct numerical control input/output interface, don't need to relay equipment transformation. It is best to use shielded cable.
- Page 12 Figure 3-2-2 Supporting STARFIRE SF-2012AH cutting machine CNC system wiring diagram. Table 3-2-3 4 cores sub - plasma power supply Character Illustration Remark Points linking piece 24V power 24V+ Power Never to use others positive supply After points linking piece action,...
- Page 13 Table 3-2-45PIN Connector-connect panels Remark Character Illustration Never to use others Power Panel 5V power supply Input Serial data input Output Serial data output Power Panel power supply Power Used for shielding Figure 3-2-4 Here attachment random has been included in the accessories, length of 100 3.2.2 Points linking piece function introduced Points linking piece is after the plasma cutting torch arcing voltage according to certain proportion is reduced, and according to the isolation of converted to...
- Page 14 Clockwise pressure ratio increases the score (about 110: 1), the output voltage become low, 100V input voltage, for example the partial pressure than to maximum (110:1), the display of 45V block. Counterclockwise points pressure ratio (minimum about 40:1), namely the high output voltage and 100V input voltage, for example the partial pressure than to a minimum (bound), the block is shown as 125V.
- Page 15 cutting according to the parameters of the controller adjust the distance between the nozzle and the steel plate, make the arc voltage is always closer to set the voltage. This parameter can be directly as a set of highly. Specific set number according to the selected power supply manufacturers provide technical parameter settings.
- Page 16 5. Tutorials Noun explanation: control signal effectively, refers to the input signal with the corresponding public end (24V) through. Disconnect as invalid. Raise the controller after power-on self-test, self-check project has panels and the host software version number display, and host communications, electrical circuit is normal.
- Page 17 5.2 Automatic operation Reach to automatically adjustable requirement: 1. Start arc (ARC) signal effectively. 2. Automatic (AUTO) signal effectively. 3. Appropriate plasma cutting voltage ((set voltage-50) ~ (set voltage + 60)). Initial positioning: the block after receives the start arc (ARC) block driving down hoisting mechanism, Zero point (Zero) signal is valid, said cutting device has met the steel plate, the tones to rise block driven lifting gear, rise time for "IHS time", "IHS time"...
- Page 18 1. Shut down the block (M39). 2. Close the arc pressure switch. 3. The cutting torch rises (M70). 6.3 CNC system recommended settings (STARFIRE of SF-2012AH system) plasma mode The initial position detection chooses: 0. The initial position detection logic: 0.
- Page 19 To break the arc end in advance distance: 2 mm. Raise the automatic signal delay: 3 seconds. 7.Troubleshooting Trouble list Fault not limit alarm lights Check the project Corrective action unstable Whether connected to Connect the power power Motor does not If supply voltage is Check power turn...
- Page 20 8.Appendix 2LineNPN normal shut series connection method. 2 Line NPN normal open parallel methods 3LineNPN normal shut series connection method. 3 Line NPN normal open parallel methods...
- Page 21 Controller supporting institutions Dimensions: 82 x187x57. 5mm The shortest length: 338mm Stroke: 100m 9. Contact us Beijing STARFIRE control technology co., LTD. Address: HAITE garden, 204, 44 floors, Shi Jing Shan district, Beijing city. Zip code: 100041 Sales: 010-88909875 Technical support: 010-88797100 Website: http://www.starfcnc.com...
