Programming of the outputs and relays is carried out via the SecuriProx Studio
configuration program.
Connectors are removable. You can remove the connector to connect the wires
and put it back on later.

1.6. Card Reader replacement

If necessary, you can use readers of a different format. To do this, you must turn
off the readers that come with the kit and connect the new ones to the X4 and X1
connectors of
The format of the reader is selected using the SecuriProx Studio configuration program.
The controller understands Wiegand interface up to 82 bits.
Connectors X4, X1 Control panel

Mains and Ground connection

1.7.
The key storage system has an internal input voltage of
24V with automatic switching to battery operation. For
operation from 90-240V the standard power supply unit from
"Phoenix contact" is delivered.

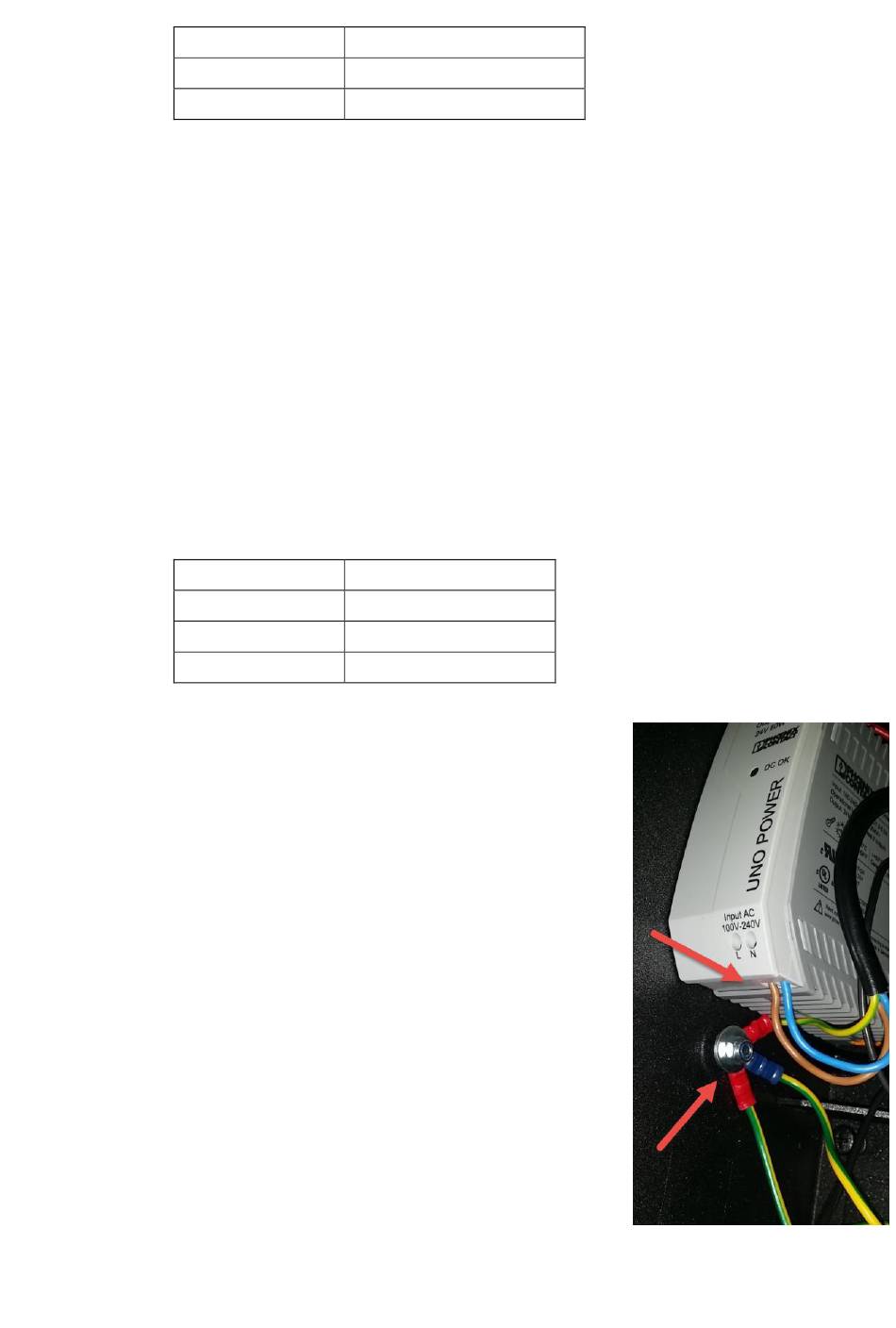

The mains connection should be done to the terminal
«L» for the «Line» (in general brown wire) and to the
terminal «N» for the «Neutral» wire (in general blue). For
your convenience it is possible that the Key management
system will be equipped with the extra switch. IN this case
the «Line» wire should be connected to the switch terminal.
Attention ! The metal cabinet of the unit, control panel
and all the add-on cabinets must be grounded with a
separate grounding wire directly to the common ground of
the building.
С
NC
NO
the control
+
-
D0
D1
Common
Normal Close
Normal Open
panel. Use the
+12 V
GND
Data 0
Data 1
+, -, D0, D1 terminals.
