1. Installation of the Key management system
1.1.
Cabinet installation
Installation of the system unit is carried out by 4 screws (included) to the wall. The
wall should be strong enough to carry out 50 kg of the cabinet.
1.2.
Control panel installation

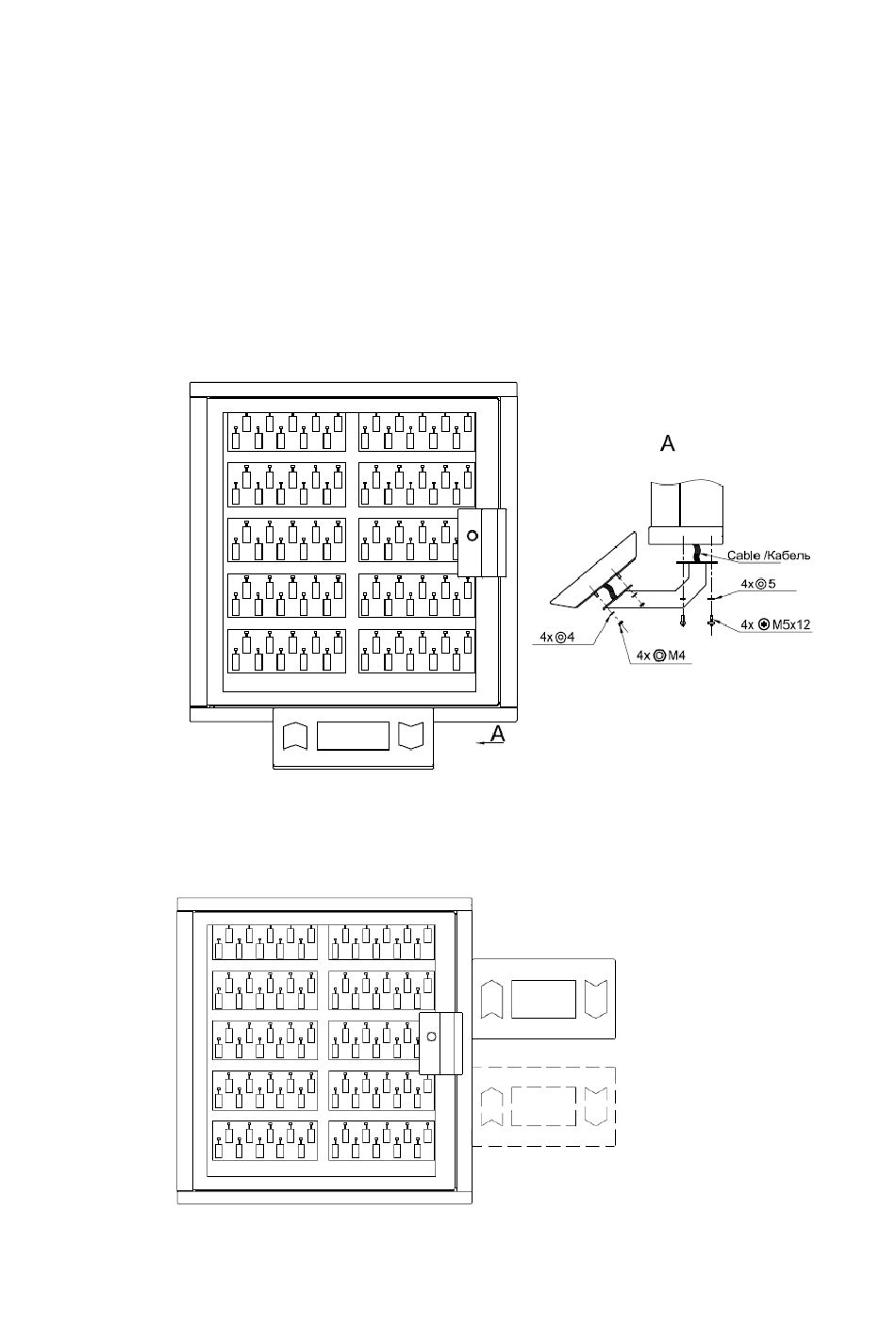

The control panel is mounted by means of one of the two brackets supplied with the
device. One bracket is designed to secure the control panel from the bottom of the unit
at an angle of 45%. Another bracket can be used to install the control panel from the
right side of the unit.
Bottom installation
Right side installation
