To install the control panel, preliminary, it is necessary to knock out a square hole for
the connection of the connecting wires. The hole has a slot on the contour of the laser
and is easily removed. Similar round holes are located along the entire perimeter of the
cabinet. They can be used to connect power wires and communication interfaces.

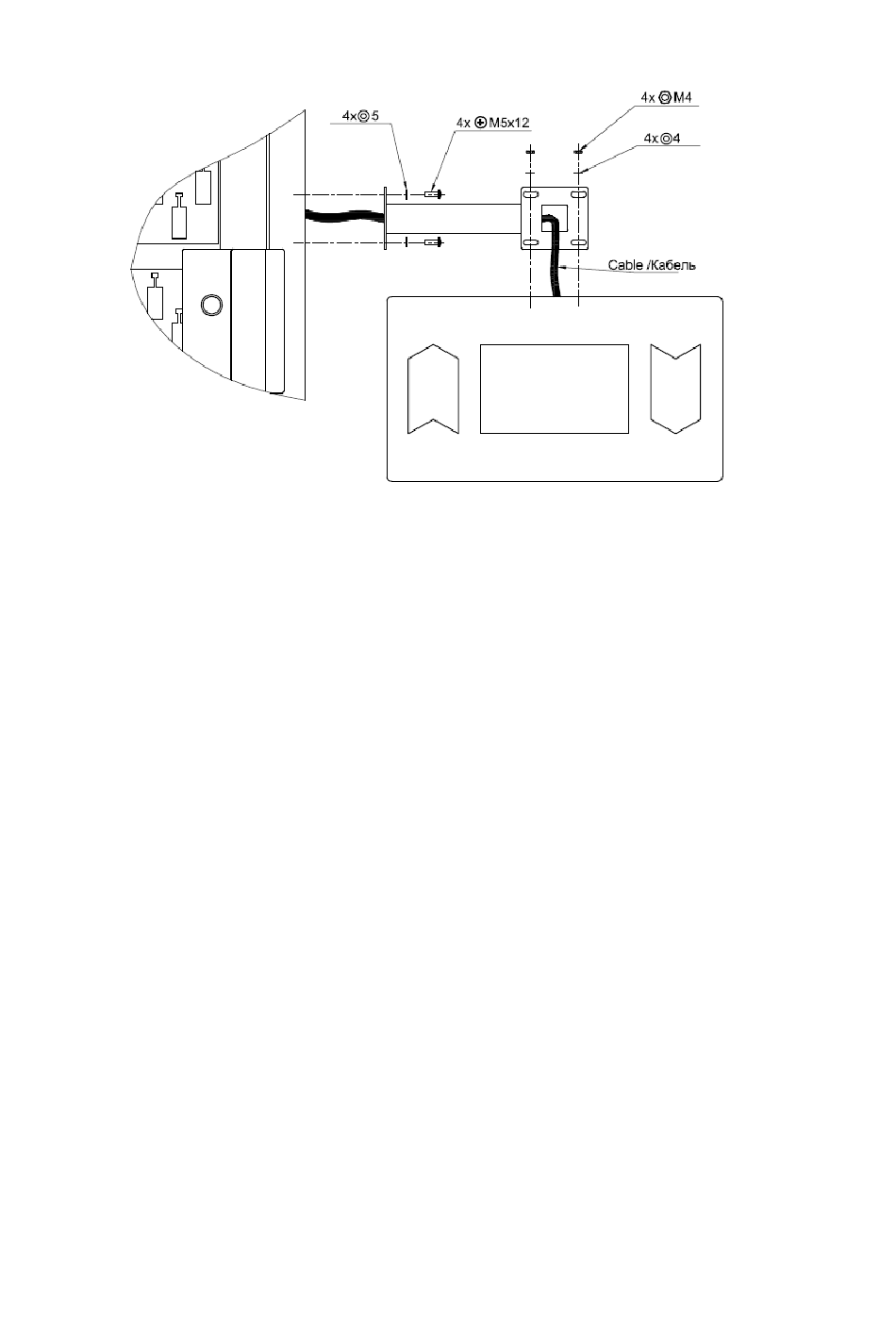

The brackets of the control panel have some freedom of fastening, which makes it
possible to precisely adjust the position of the panel, push it close, or slightly push the
panel away from the housing. The bracket for horizontal fastening to the right of the unit
has the ability to rotate about its axis, i.e. Allows you to fix the panel at a small angle.
The panel is connected to the unit by a flat cable to the connector X5 or X6 of the
battery charging module and control outputs (Fig. 1). The second connector is used to
connect the keys modules.

Ethernet connection

1.3.
Control panel has a patch-cord Ethernet cable. You could use the adapter (included)
if you need longer cable.
Right side installation
